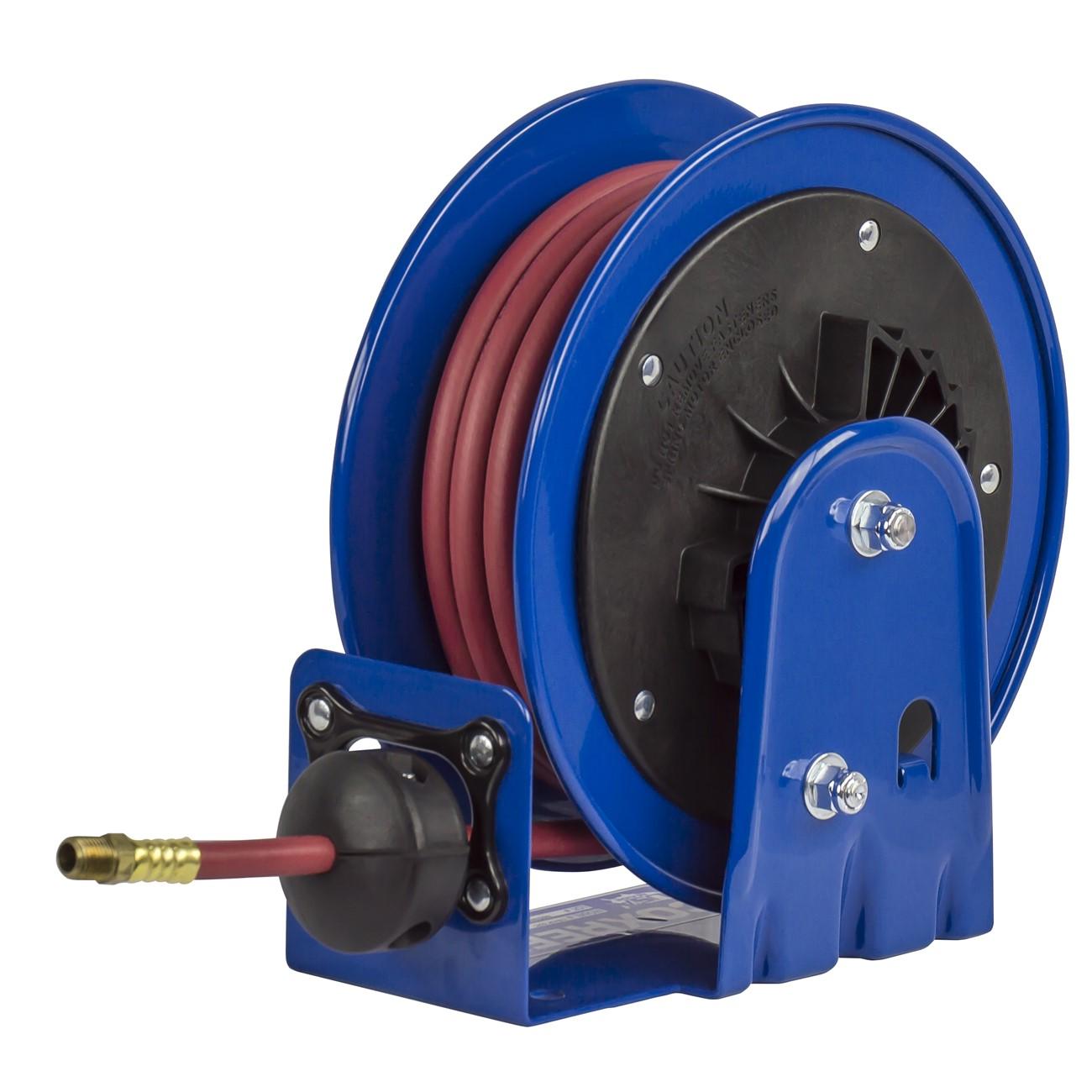

Coxreels LG-LP-115 Hose Reel 0.25 in Id 15 Ft Steel

Product Description

The COXREELS LG-LP-115 is a compact, spring-driven hose reel from the LG Little Giant series, designed for commercial and industrial applications where installation space and weight are constraints. Built on a solid one-piece 12-gauge steel base, this reel accepts a 1/4-inch ID hose and handles up to 15 feet of hose length. The machined brass 90-degree full-flow NPT swivel allows for simple seal maintenance without removing the reel from its mount. Installed by HVAC technicians, plumbers, and general maintenance professionals, the LG-LP-115 delivers heavy-duty performance in a lightweight, space-saving package.

The LG-LP-115 is suited for commercial and industrial service environments where space is limited and portability matters. Its spring-driven retraction and compact footprint make it practical for service vans, mechanical rooms, shop floors, and job-site installations. The reel can accept either a 1/4-inch or 3/8-inch hose, giving technicians flexibility across different service scenarios without requiring a larger reel.

Key Features

• Machined solid brass 90-degree full-flow NPT swivel for easy seal maintenance and hose installation without dismounting the reel
• Non-corrosive CoxComposite ratchet hub with self-lubricating bronze bearings secures hose at desired extension length
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and operator safety
• Solid one-piece 12-gauge steel base and support post for stability in compact installations
• CoxComposite grommet with continuous radius design prevents hose pinching or catching during retraction
• CPC powder coat finish resists chipping and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Accepts 1/4-inch or 3/8-inch hose and is designed for commercial and industrial hose reel applications where a lightweight, spring-driven reel is required.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and plumbing connections. Shut off the supply line and relieve any system pressure before connecting or servicing the reel. Secure the base to a structurally sound surface using appropriately rated fasteners. Verify all NPT swivel connections for leaks after pressurizing the line.

Technical Specifications

• Hose ID: 0.25 inches
• Hose OD: 0.5 inches
• Hose Length: 15 feet
• Drive Type: Spring driven
• Base Material: 12-gauge steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 14.5 inches
• Width: 6.75 inches
• Height: 16 inches
• Weight: 9 pounds
• UPC: 674255735750

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: LG-LP-115
