Coxreels HP1125-5-200-E Motorized Hose Reel 3/4 in 200 Ft

Product Description

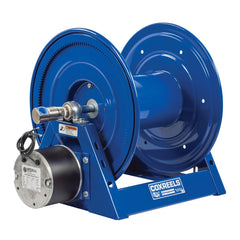

The COXREELS HP1125-5-200-E is a motorized hose reel from the 1125 Series, designed for demanding industrial and commercial service applications. It features a 12V DC, 1/3 HP reversible motor for powered retrieval and is built around a one-piece, all-welded 12-gauge steel A-frame base that provides rigid, bolt-free structure. The reel accepts 3/4 inch ID hose up to 200 feet and incorporates an electroless nickel-plated steel 90-degree full-flow NPT swivel inlet. CNC robotically spun and ribbed discs with rolled edges protect hose integrity during winding. A CPC powder coat finish provides chip resistance and rust inhibition for extended service life in harsh environments. Licensed HVAC, plumbing, and general trade contractors typically specify this reel for fluid transfer, pressure washing, and air supply service stations.

The HP1125-5-200-E is suited for industrial facilities, service garages, fleet maintenance shops, and commercial job sites where motorized hose management is required. The exclusive low-profile outlet riser and open drum slot design produces a non-crimping, flat hose wrap, reducing hose wear over repeated use cycles. The adjustable tension brake prevents free-wheeling during manual payout. Permanently lubricated, self-aligning pillow block bearings support smooth rotation under load. The mounting pattern is integrated into the steel base, simplifying installation and reel changeout on fixed service stations and wall or floor-mount applications.

Key Features

• 12V DC, 1/3 HP reversible motor for powered hose retrieval
• One-piece, all-CNC-welded 12-gauge steel A-frame base for superior structural rigidity
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design for non-crimping, flat hose wrap
• Adjustable tension brake prevents free-wheeling during hose deployment
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC powder coat finish resists chipping and rust

Compatibility

Designed as an OEM-style replacement and direct-fit reel within the COXREELS 1125 Series platform for industrial hose management applications accepting 3/4 inch ID hose up to 200 feet in length.

Installation Notes

Installation is typically performed by qualified mechanical or plumbing trade professionals. Disconnect and lockout all power sources, including the 12V DC supply, before mounting or servicing the reel. Secure the reel to a structurally rated surface using the integrated base mounting pattern and fasteners appropriate for the substrate. Verify NPT inlet connections are properly sealed and pressure-tested before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length Capacity: 200 feet
• Motor: 12V DC, 1/3 HP reversible
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Frame Construction: One-piece CNC-welded 12-gauge steel A-frame
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 68 pounds
• UPC: 674255835887

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-5-200-E
