Coxreels HP1125-5-175 Hose Reel 3/4 Inch Id 175 Ft

Product Description

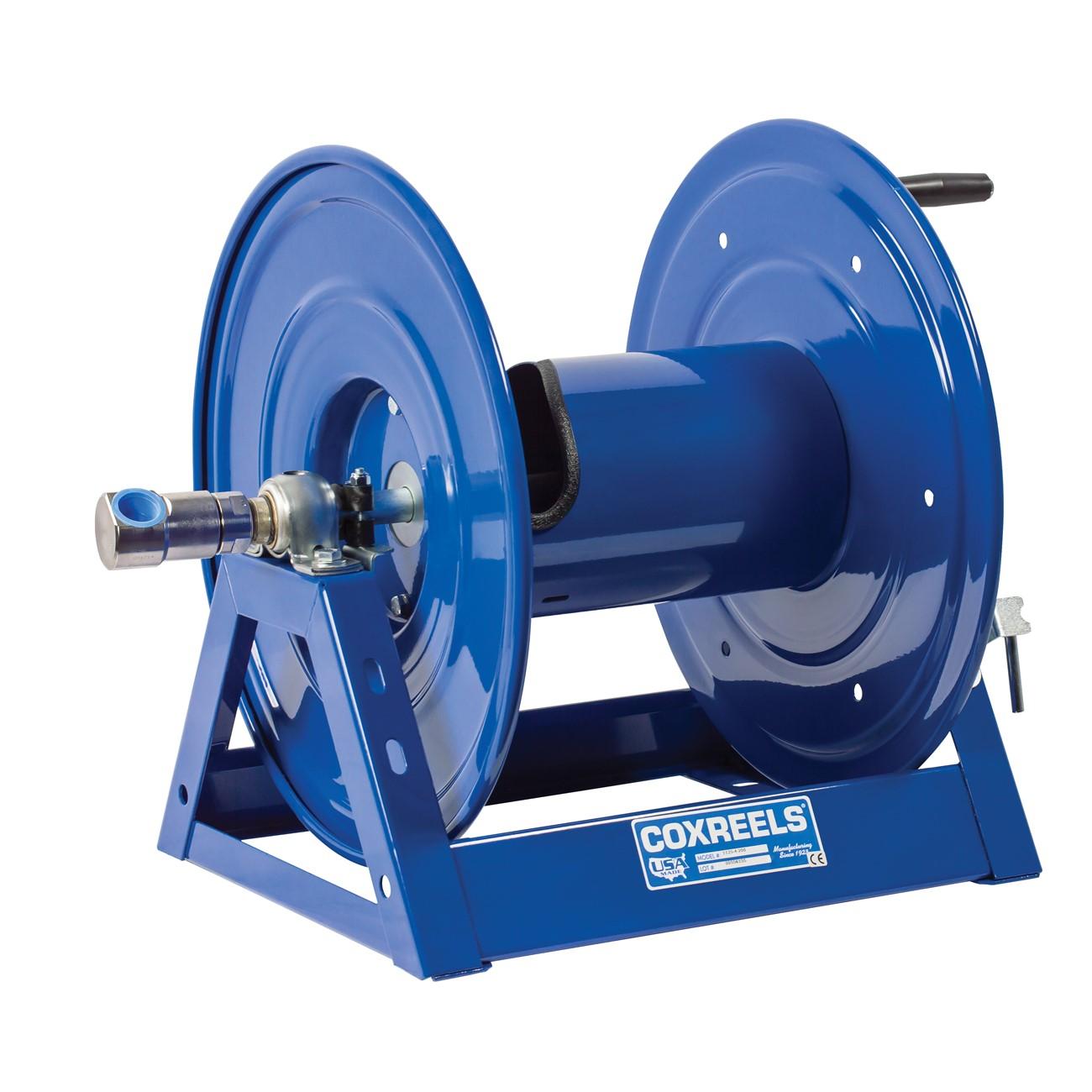

The COXREELS HP1125-5-175 is a heavy-duty hand crank hose reel built for demanding industrial and trade applications. Part of the 1125 Series, it accommodates hose with a 3/4 inch ID and 1-1/4 inch OD up to 175 feet in length. The reel is constructed around a one-piece, all-welded 12-gauge steel A-frame base that provides rigid, bolt-free structure. An electroless nickel-plated steel 90-degree full-flow NPT swivel inlet supports high-flow operation. The unit weighs 50 pounds and ships as a single unit. Licensed HVAC technicians, plumbers, and industrial maintenance crews rely on this reel for organized, kink-free hose management at the job site.

The HP1125-5-175 suits a wide range of trade and industrial environments where hose lengths up to 175 feet are required. Its low-profile outlet riser and open drum slot design keeps hose flat and smooth during wrap, preventing crimps that reduce flow or shorten hose life. The adjustable tension brake prevents free-wheeling during deployment, and the direct hand crank enables controlled mechanical retraction without power. This reel is appropriate for use in commercial facilities, fleet maintenance shops, industrial plants, and heavy-duty field service operations where reliable, repeatable hose management is essential.

Key Features

• One-piece CNC robotically welded 12-gauge steel A-frame base — no bolted joints, superior structural integrity
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet for high-flow, corrosion-resistant performance
• Low-profile outlet riser and open drum slot design delivers non-crimping, flat smooth hose wrap
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish — chip resistant and rust inhibiting for extended outdoor and shop use
• Adjustable tension brake and direct hand crank for controlled, tool-free hose retraction

Compatibility

Designed to accept hose with a 3/4 inch ID and 1-1/4 inch OD up to 175 feet in length. Part of the COXREELS 1125 Series of hand crank and motorized hose reels.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed plumbing and mechanical contractors. Mount the reel to a solid surface using the integrated steel base mounting pattern before connecting any hose or fluid supply. Shut off and depressurize the fluid supply line before making swivel inlet connections. Follow all applicable facility safety protocols and local mechanical codes during mounting and commissioning.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/4 inch
• Hose Capacity: 175 ft
• Frame Material: 12-gauge steel, CNC robotically welded
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 50 pounds
• UPC: 674255858251

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-5-175
