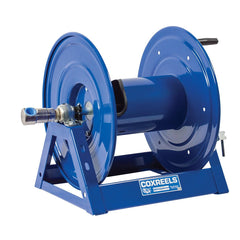

Coxreels HP1125-5-100 Hose Reel 3/4 Inch Id 100 Ft

Product Description

The COXREELS HP1125-5-100 is a heavy-duty hand crank hose reel from the 1125 Series, built for industrial and commercial applications where reliable hose management under high pressure is essential. The reel features a one-piece all-welded 12-gauge steel A-frame base, CNC robotically spun and ribbed discs with rolled edges, and a low-profile outlet riser with an open drum slot design that ensures a non-crimping, flat hose wrap. It accommodates 3/4 inch ID hose up to 100 feet and is finished with a chip-resistant, rust-inhibiting CPC powder coat. Licensed contractors, industrial maintenance technicians, and fluid-handling professionals typically specify and install this unit.

The HP1125-5-100 is suited for industrial plants, commercial facilities, service garages, and job sites that require a durable stationary or semi-permanent hose station. The hand crank drive allows controlled mechanical retraction without electrical power. An electroless nickel-plated steel 90-degree full-flow NPT swivel inlet supports continuous rotation while maintaining flow. The adjustable tension brake prevents free-wheeling during payout, keeping the hose under control in demanding work environments.

Key Features

• One-piece all CNC robotically welded 12-gauge steel A-frame base for superior structural integrity — no bolted joints
• CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, and operator safety
• Low-profile outlet riser and open drum slot design ensures non-crimping, flat smooth hose wrap
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet
• Permanently lubricated, self-aligning pillow block bearings for smooth, trouble-free rotation
• CPC powder coat finish resists chips and rust for long service life
• Adjustable tension brake with direct hand crank for controlled mechanical retraction

Compatibility

The HP1125-5-100 is designed for use with 3/4 inch ID hose up to 100 feet in length and fits standard NPT inlet connections consistent with the COXREELS 1125 Series mounting configuration.

Installation Notes

Installation is typically performed by a licensed contractor or qualified maintenance technician familiar with fluid-handling systems. Shut off and depressurize the supply line completely before connecting or disconnecting the swivel inlet. Secure the reel to a structurally sound surface using the mounting pattern located in the steel base, following applicable facility and local codes. Do not exceed the rated hose and pressure specifications for this reel series.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length Capacity: 100 feet
• Hose OD: 1-1/4 inches
• Frame Material: 12-gauge steel, all-welded
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 42 pounds
• UPC: 674255832992

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-5-100
