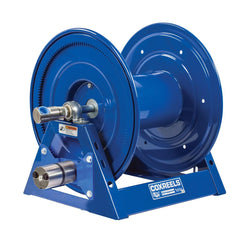

Coxreels HP1125-5-100-H Hose Reel 3/4 in Id 100 Ft

Product Description

The COXREELS HP1125-5-100-H is a heavy-duty motorized hose reel from the 1125 Series, designed for industrial and trade applications where reliable hose management under demanding conditions is required. The reel is hydraulic motor driven and accepts hose with a 3/4 inch ID and 1-1/4 inch OD, with a 100-foot capacity. It features an all-welded one-piece steel A-frame base constructed from 12-gauge steel, permanently lubricated self-aligning pillow block bearings, and CNC robotically spun and ribbed discs with rolled edges. Licensed contractors and industrial service technicians are the primary installers of this unit.

The HP1125-5-100-H suits industrial fluid transfer, hydraulic service, and high-pressure wash-down operations in commercial and field service environments. Its low-profile outlet riser and open drum slot design ensure a flat, non-crimping hose wrap, which is critical for preserving hose integrity during repeated retraction cycles. The adjustable tension brake prevents free-wheeling during dispensing. This reel is well suited for service trucks, shop floors, and fixed equipment stations where hydraulic hose management is a daily requirement.

Key Features

• Hydraulic motor drive for powered hose retrieval in demanding service environments
• 3/4 inch ID hose capacity with 100-foot length rating
• One-piece all-CNC robotically welded 12-gauge steel A-frame base for superior structural rigidity
• Electroless nickel plated steel 90-degree full-flow NPT swivel inlet for leak-resistant connections
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• CPC powder coat finish resists chipping and rust for long service life
• Adjustable tension brake prevents free-wheeling during hose dispensing

Compatibility

Designed as an OEM-style replacement or direct-fit unit within the COXREELS 1125 Series motorized hose reel lineup, compatible with 3/4 inch ID hose assemblies up to 100 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with hydraulic systems and hose reel mounting procedures. Shut down and depressurize all hydraulic lines before connecting or disconnecting the motor supply. Secure the reel to a structurally sound mounting surface using the integrated base mounting pattern. Verify that all NPT swivel inlet fittings are properly torqued and leak-tested before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1-1/4 inch
• Hose Capacity: 100 feet
• Drive Type: Hydraulic motor
• Frame Material: 12-gauge steel, all-welded one-piece A-frame
• Swivel Inlet: Electroless nickel plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 48 pounds
• UPC: 674255844711

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-5-100-H
