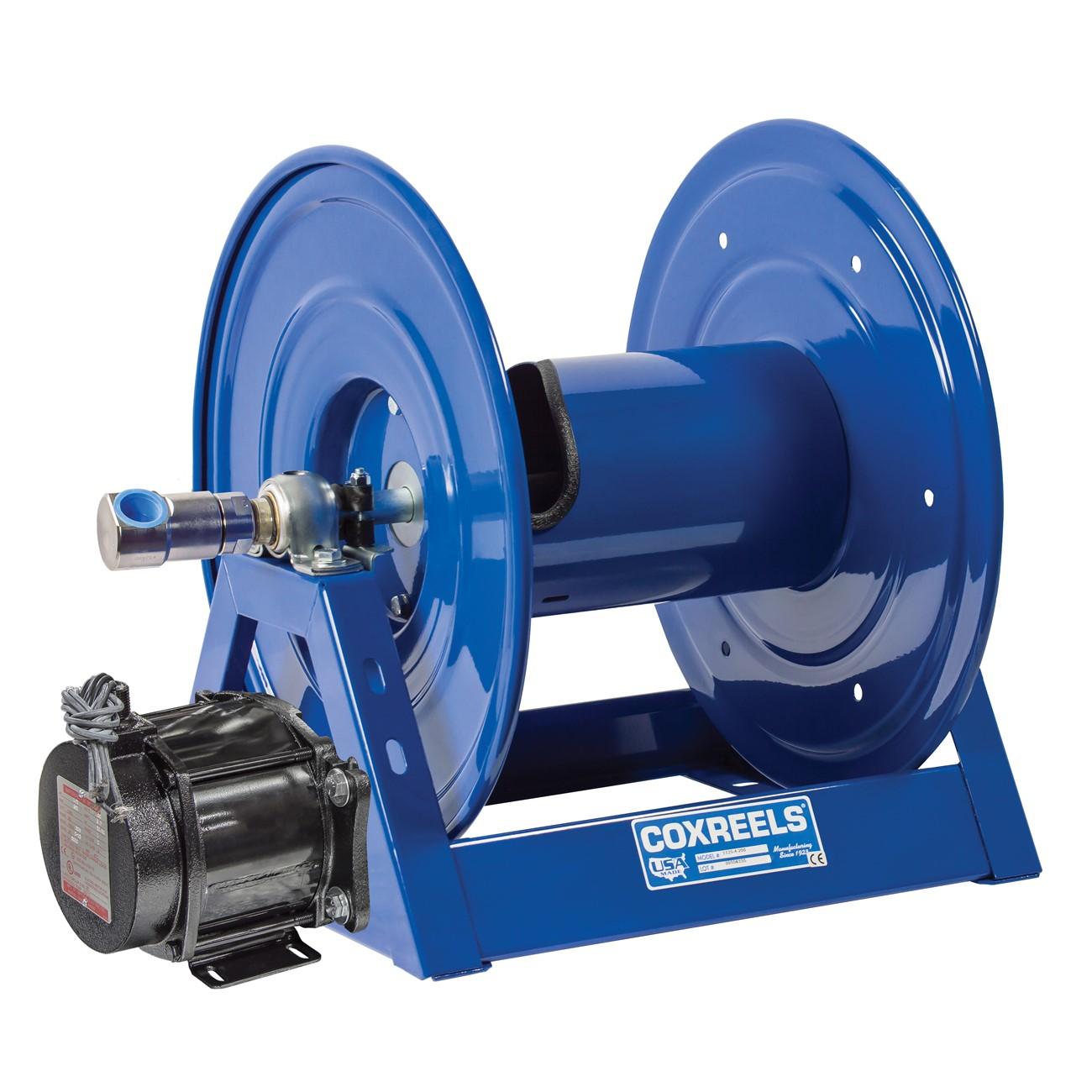

Coxreels HP1125-5-100-ED Hose Reel 3/4 in 100 Ft 12V

Product Description

The COXREELS HP1125-5-100-ED is a heavy-duty motorized hose reel from the 1125 Series, engineered for demanding industrial and trade applications. It accepts 3/4 inch ID hose up to 100 feet in length and is driven by a 12-volt DC, 1/2 HP explosion-proof reversible motor for powered retrieval in hazardous-location environments. The one-piece all-welded steel frame and permanently lubricated pillow block bearings keep the reel stable and rotating smoothly under daily service load. An electroless nickel-plated 90-degree full-flow NPT swivel inlet maintains consistent flow without kinking at the connection point.

This reel is suited for industrial facilities, fleet maintenance shops, oil and gas service operations, and other environments where a motorized, explosion-proof hose reel is required. The 12V DC motor makes it compatible with vehicle-mounted or battery-backed power sources, expanding its use in mobile service rigs and field operations. The low-profile outlet riser and open drum slot design keep hose lay flat and crimp-free across the full 100-foot length, reducing hose wear and downtime.

Key Features

• 12-volt DC, 1/2 HP explosion-proof reversible motor for powered hose retrieval
• One-piece CNC robotically welded 12-gauge steel A-frame base for rigid, bolt-free structure
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet
• Heavy-duty CNC spun and ribbed discs with rolled edges for hose protection and operator safety
• Permanently lubricated, self-aligning pillow block bearings for smooth, maintenance-free rotation
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish resists chipping and rust

Compatibility

Designed as an OEM-style replacement or direct-application reel for industrial hose systems requiring 3/4 inch ID hose capacity up to 100 feet with 12V DC motorized drive.

Installation Notes

Installation is typically performed by a qualified millwright, industrial mechanic, or service technician. Disconnect and lock out all power sources before mounting or wiring the motor. Secure the reel to a structural surface using the mounting pattern in the steel base, and verify the 12V DC power supply matches motor specifications before energizing. Consult applicable electrical codes and any local regulations governing explosion-proof equipment installation in the intended environment.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Length: 100 feet
• Motor: 12V DC, 1/2 HP explosion-proof reversible
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Frame Material: 12-gauge welded steel
• Finish: CPC powder coat
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 68 pounds
• UPC: 674255834828

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-5-100-ED
