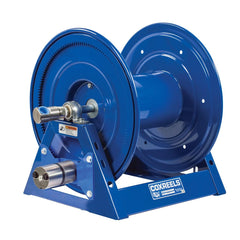

Coxreels HP1125-4-450-H Hose Reel 1/2 in 450 Ft

Product Description

The COXREELS HP1125-4-450-H is a heavy-duty motorized hose reel from the 1125 Series, designed for demanding industrial and trade applications. It accommodates 1/2 inch ID hose up to 450 feet in length and is driven by a hydraulic motor for powered retrieval. The reel is built on a one-piece, all-CNC-robotically-welded 12-gauge steel A-frame base with permanently lubricated, self-aligning pillow block bearings for smooth, consistent rotation. A CPC powder coat finish provides long-lasting chip and rust resistance. Licensed plumbers, industrial mechanics, and fluid-system technicians are the typical installers for this unit.

The HP1125-4-450-H fits residential, commercial, and industrial fluid-transfer systems where extended hose runs and reliable retraction under load are required. The hydraulic motor drive makes it well suited for equipment yards, service trucks, wash-down stations, and high-volume fluid dispensing operations where manual cranking is impractical. The open drum slot and low-profile outlet riser allow the hose to lay flat without crimping, which is critical for maintaining flow and extending hose service life on long daily-use cycles.

Key Features

• Hydraulic motor drive for powered hose retrieval on extended 450 ft runs
• One-piece CNC-robotically-welded 12-gauge steel A-frame base, not bolted, for superior structural integrity
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet prevents hose twist at the inlet connection
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• Adjustable tension brake prevents free-wheeling during unreeling
• CPC powder coat finish resists chipping and rust for extended service life

Compatibility

Designed for use with 1/2 inch ID hose up to 450 feet in length; part of the COXREELS 1125 Series platform for industrial and commercial fluid-transfer applications.

Installation Notes

Installation should be performed by a qualified mechanic or pipefitter familiar with hydraulic systems and hose-reel mounting practices. Depressurize and shut off all fluid supply lines before connecting or disconnecting hose fittings. Secure the reel to a structural surface using the mounting pattern integrated into the steel base, following applicable facility and equipment codes. Do not exceed the rated hose ID or length specification, as doing so may affect swivel and bearing performance.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 450 feet
• Drive Type: Hydraulic motor
• Frame Material: 12-gauge steel, CNC-robotically-welded A-frame
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 37 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 58 pounds
• UPC: 674255846524

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-4-450-H
