Coxreels HP1125-4-450-EA Hose Reel 1/2 Inch 450 Ft

Product Description

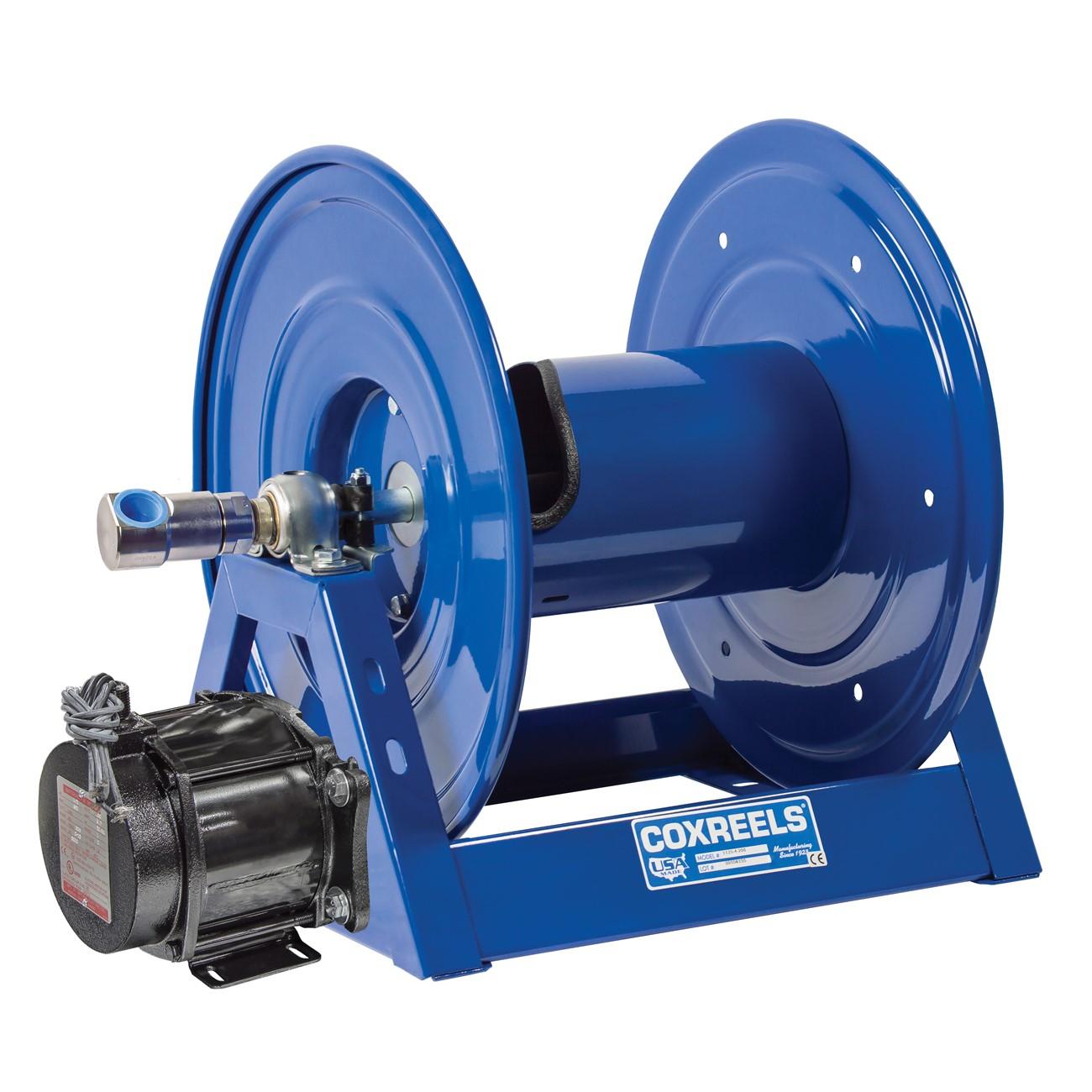

The COXREELS HP1125-4-450-EA is a heavy-duty motorized hose reel from the 1125 Series, designed for demanding industrial and commercial applications. It handles 1/2 inch ID hose at a 7/8 inch OD and accommodates up to 450 feet of hose. The reel is powered by a 115-volt AC, 1/2 HP reversible motor and features an all-welded, one-piece CNC robotically welded 12-gauge steel A-frame base. An adjustable tension brake prevents free wheeling during payout. This unit is installed by maintenance professionals, industrial contractors, and facilities technicians who need reliable, high-volume hose management.

The HP1125-4-450-EA suits industrial facilities, fleet service operations, oil and gas sites, and heavy commercial environments where large hose capacity and motorized rewind are required. The low-profile outlet riser and open drum slot design allow the hose to lay flat without crimping, which extends hose service life and maintains consistent flow. The electroless nickel-plated steel swivel inlet provides a full-flow NPT connection at the inlet. This reel is appropriate for stationary mounting in service bays, equipment rooms, or outdoor covered installations.

Key Features

• 115-volt AC, 1/2 HP reversible AC rectified motor for powered hose retrieval
• One-piece all-CNC robotically welded 12-gauge steel A-frame base for rigid, bolt-free structure
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Low-profile outlet riser and open drum slot design for non-crimping, flat hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation
• CPC powder coat finish for chip resistance and rust inhibition

Compatibility

Designed as an OEM-style motorized hose reel for 1/2 inch ID hose applications across industrial and commercial installations requiring up to 450 feet of hose capacity.

Installation Notes

Installation should be performed by a qualified technician familiar with industrial hose reel systems and applicable electrical codes. Shut off all fluid supply and de-energize the electrical circuit before mounting or servicing the reel. The base mounting pattern is integrated into the steel frame for secure attachment to a fixed surface. Motor wiring must comply with NEC requirements for the supply voltage and current rating of the unit.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 450 feet
• Motor Voltage: 115 volts AC
• Motor Output: 1/2 HP
• Frame Material: 12-gauge steel, all-welded
• Length: 41 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 78 pounds
• UPC: 674255850811

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-4-450-EA
