Coxreels HP1125-4-200 Hose Reel 1/2 Inch Id 200 Foot

Product Description

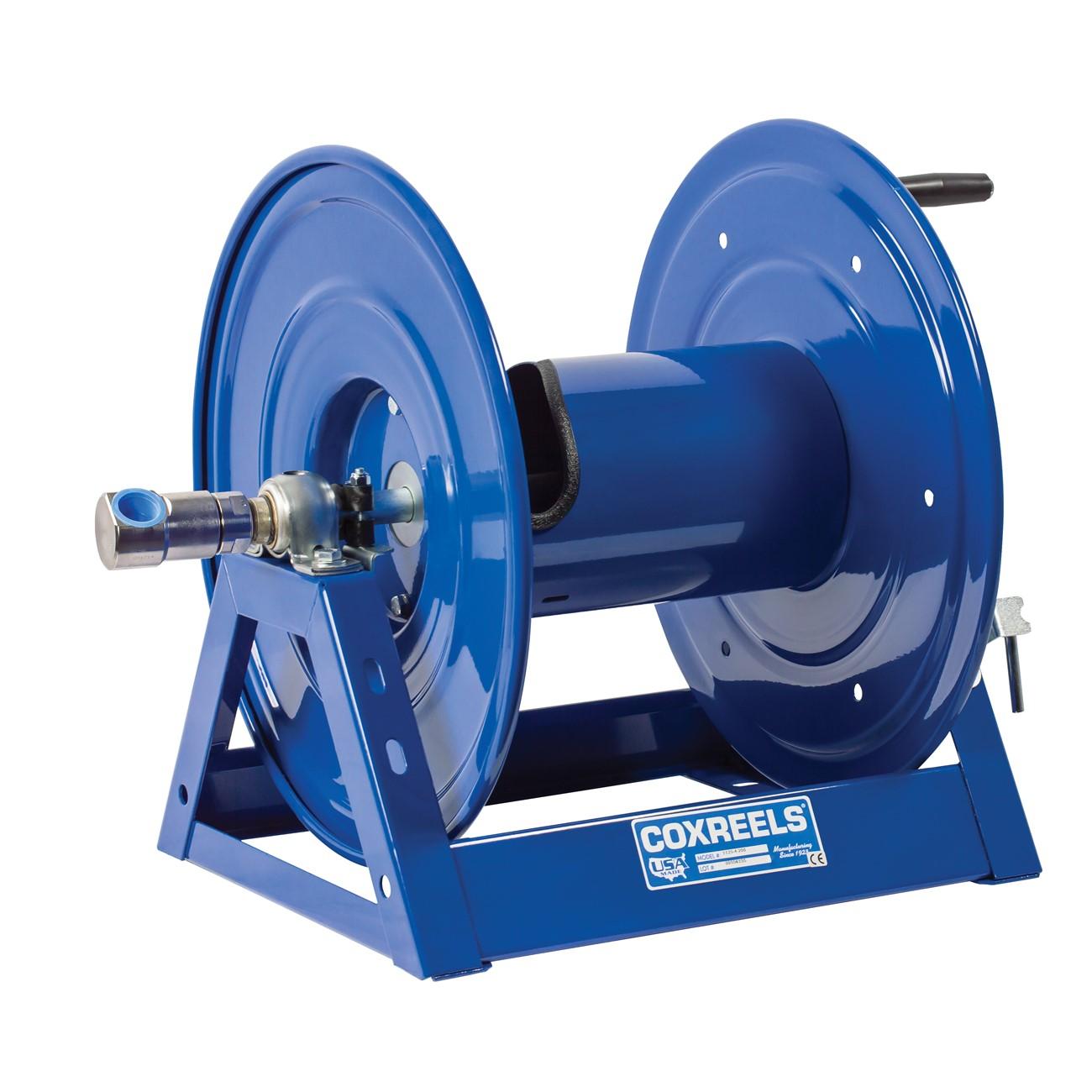

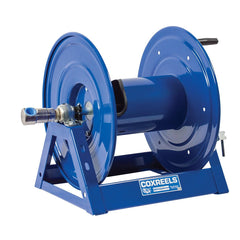

The COXREELS HP1125-4-200 is a hand crank hose reel from the 1125 Series, designed for demanding industrial and trade applications. It accepts 1/2 inch ID hose with a 7/8 inch OD and holds up to 200 feet of hose. The reel features a one-piece all-welded 12-gauge steel A-frame base, CNC robotically spun and ribbed discs with rolled edges, and an electroless nickel plated steel 90-degree full-flow NPT swivel inlet. An adjustable tension brake prevents free wheeling during payout. Licensed tradespeople and maintenance professionals in industrial, contractor, and facility service environments typically install and operate this reel.

The HP1125-4-200 suits a wide range of professional applications including high-pressure fluid transfer, lubrication service, and general-purpose hose management in shop, fleet, and field settings. Its open drum slot and low-profile outlet riser allow the hose to wrap flat without crimping, reducing wear and extending hose service life. The direct hand crank provides straightforward mechanical retraction without the need for a motorized drive.

Key Features

• One-piece all-welded 12-gauge steel A-frame base for rigid, bolt-free structure with integrated mounting pattern
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Electroless nickel plated steel 90-degree full-flow NPT swivel inlet for smooth hose feed and corrosion resistance
• Low-profile outlet riser and open drum slot design delivers a non-crimping, flat smooth hose wrap
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• CPC powder coat finish resists chipping, rust, and corrosion for extended field use

Compatibility

Designed for use with 1/2 inch ID, 7/8 inch OD hose up to 200 feet in length. Part of the COXREELS 1125 Series hand crank and motorized hose reel platform.

Installation Notes

Installation is typically performed by qualified maintenance technicians or industrial service professionals. Secure all fluid supply lines and relieve system pressure before mounting or connecting the reel. Mount to a solid structural surface using the integrated base mounting pattern, following applicable facility or OSHA requirements for overhead or wall-mounted equipment. Verify swivel inlet NPT thread compatibility with existing supply fittings before final connection.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 200 feet
• Frame Material: 12-gauge steel
• Swivel Inlet: Electroless nickel plated steel, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 18 inches
• Height: 20 inches
• Weight: 39 pounds
• UPC: 674255824492

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-4-200
