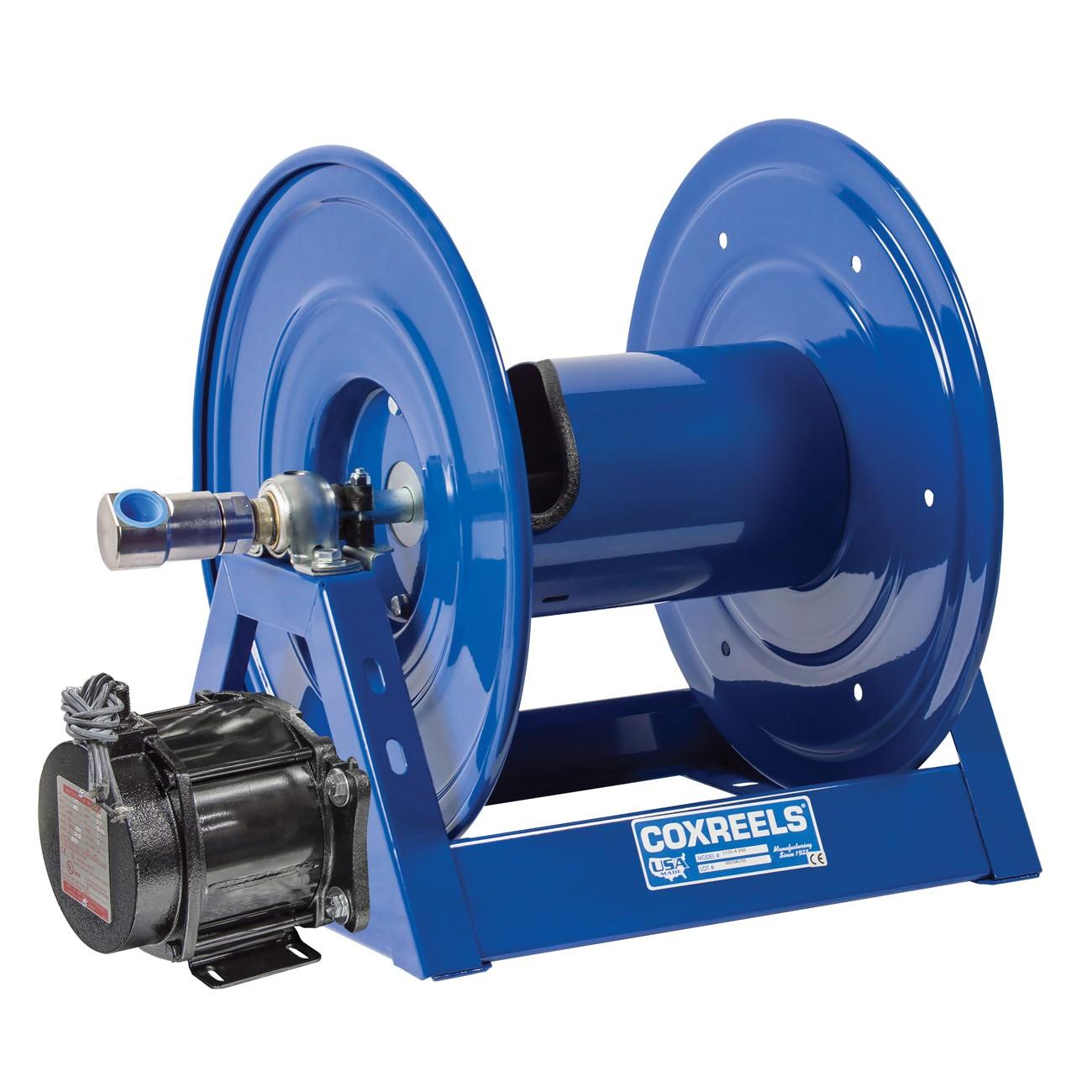

Coxreels HP1125-4-200-ED Hose Reel 1/2 in 200 Ft 12V Dc

Product Description

The COXREELS HP1125-4-200-ED is a heavy-duty motorized hose reel from the 1125 Series, designed for demanding industrial and commercial fluid-transfer applications. It accommodates hose with a 1/2 inch ID and 7/8 inch OD up to 200 feet in length. Power is supplied by a 12V DC, 1/2 HP explosion-proof reversible electric motor for controlled pay-out and retraction. The one-piece all-welded 12-gauge steel A-frame base provides a rigid mounting platform without bolted joints, and a CPC powder coat finish resists chipping and rust. Licensed HVAC, plumbing, and industrial service technicians install this reel in fixed or mobile service setups requiring hands-free hose management.

The HP1125-4-200-ED suits industrial service environments where consistent hose tension, controlled retraction, and a flat smooth hose wrap are critical. The low-profile outlet riser and open drum slot design prevent hose crimping during wrap. It is well suited for shop floors, service trucks, and fixed bay installations handling compressed air, water, oil, or compatible fluids. The explosion-proof motor rating makes it appropriate for environments with flammable vapors where a standard motor would not meet safety requirements.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible electric motor for powered hose retraction and pay-out
• One-piece all-CNC robotically welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation and easy removal
• CNC robotically spun and ribbed discs with rolled edges for hose protection, structural strength, and operator safety
• Exclusive low-profile outlet riser and open drum slot design for non-crimping, flat smooth hose wrap
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet for leak-resistant connection
• Permanently lubricated self-aligning pillow block bearings for smooth rotation; adjustable tension brake prevents free-wheeling

Compatibility

Designed as an OEM-style replacement and direct-fit reel for industrial hose management applications requiring a 1/2 inch ID hose path up to 200 feet with 12V DC electric drive.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid-transfer systems and low-voltage DC wiring. Disconnect and lock out all power sources and depressurize the supply line before mounting or servicing the reel. Secure the reel to a surface rated for the combined weight of the unit and fully loaded hose; use the integrated base mounting pattern for alignment. Verify the 12V DC power supply polarity and circuit protection comply with applicable NEC requirements before energizing the motor.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 200 feet
• Motor Voltage: 12V DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible electric
• Frame Material: 12-gauge steel, CNC robotically welded
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel Inlet: Electroless nickel-plated steel, 90-degree full-flow NPT
• Length: 31 inches
• Width: 21 inches
• Height: 21 inches
• Weight: 65 pounds
• UPC: 674255835122

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-4-200-ED
