Coxreels HP1125-4-200-A Hose Reel 1/2 in 200 Ft

Product Description

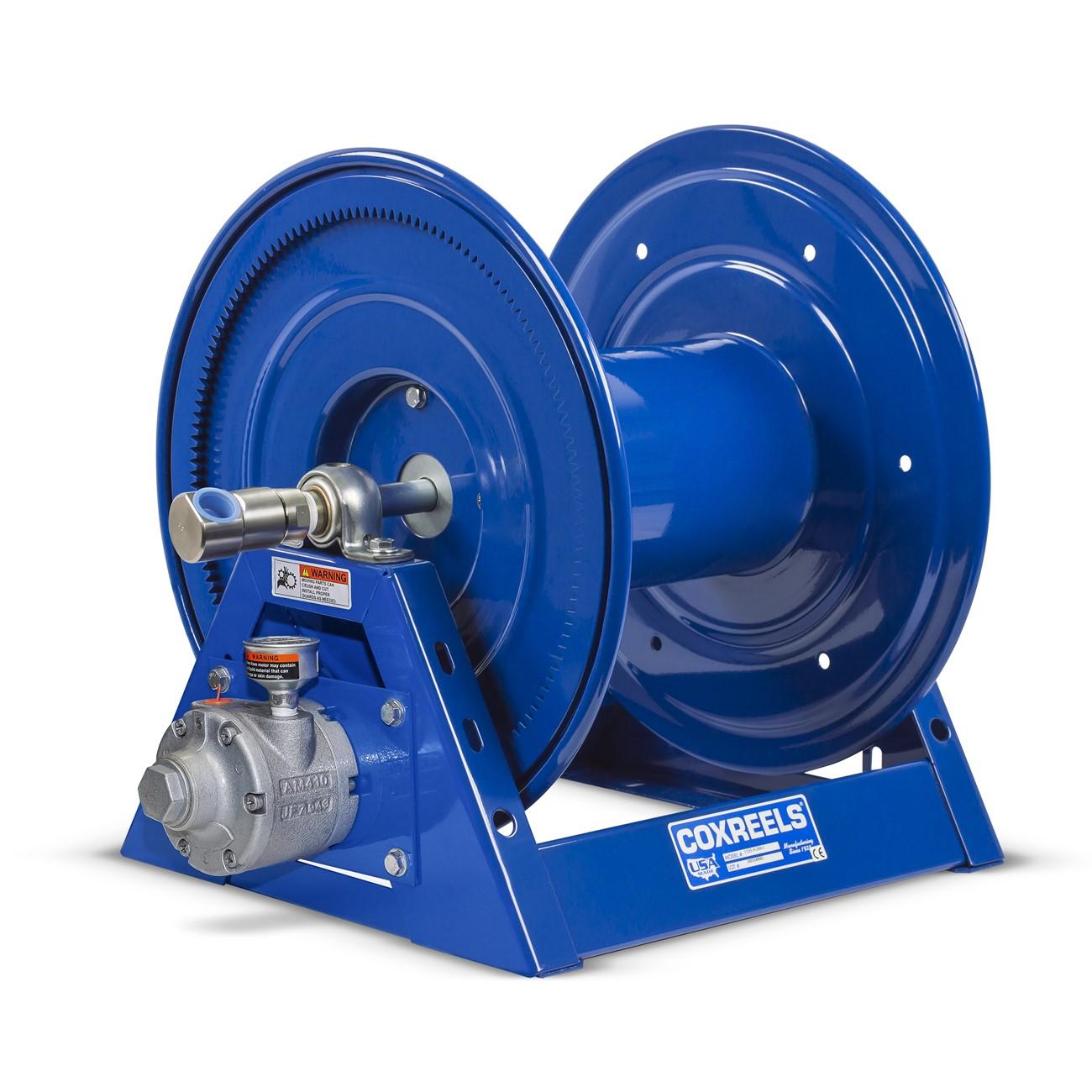

The COXREELS HP1125-4-200-A is a heavy-duty hose reel from the 1125 Series, designed for demanding industrial and trade applications. It accommodates 1/2 inch ID hose up to 200 feet in length and features an all-welded one-piece steel A-frame base, CNC robotically spun and ribbed discs, and an electroless nickel plated steel 90-degree full-flow NPT swivel inlet. The low-profile outlet riser and open drum slot design keeps hose wrap flat and non-crimping. A CPC powder coat finish provides chip resistance and rust inhibition for long service life in harsh environments.

This reel is suited for industrial facilities, service shops, construction sites, and fleet maintenance operations where a reliable, high-capacity hose reel is required. It is available in hand crank and motorized configurations, making it adaptable to fixed or mobile service setups. The adjustable tension brake prevents free-wheeling during hose deployment, and the permanently lubricated pillow block bearings support smooth, consistent rotation under load.

Key Features

• One-piece all-welded 12-gauge steel A-frame base for superior structural rigidity
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Electroless nickel plated steel 90-degree full-flow NPT swivel inlet for unrestricted flow
• Low-profile outlet riser and open drum slot design prevents hose crimping
• Adjustable tension brake prevents free-wheeling during use
• CPC powder coat finish resists chipping and rust for extended field life

Compatibility

Designed for use with 1/2 inch ID hose up to 200 feet in length; part of the COXREELS 1125 Series platform supporting both hand crank and motorized drive configurations.

Installation Notes

Installation is typically performed by a qualified maintenance technician or industrial service professional. Mount the reel to a secure structural surface using the integrated base mounting pattern before connecting hose or supply lines. Shut off and depressurize the fluid or air supply line completely before making any inlet connections. Follow applicable OSHA and facility safety guidelines for pressurized hose systems during installation and service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 7/8 inch
• Hose Capacity: 200 feet
• Frame Material: 12-gauge steel, all-welded
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 47 pounds
• Finish: CPC powder coat
• Swivel Inlet: Electroless nickel plated steel, 90-degree NPT full-flow
• UPC: 674255835894

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-4-200-A
