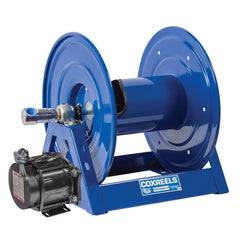

Coxreels HP1125-4-100-ED Hose Reel 1/2 Inch 100 Ft 12V

Product Description

The COXREELS HP1125-4-100-ED is a heavy-duty motorized hose reel built for demanding industrial and commercial applications. It is part of the 1125 Series, which combines hand-crank and electric motor operation in a single platform. The reel is driven by a 12-volt DC, 1/2 HP explosion-proof reversible motor, making it suited for environments where ignition hazards are a concern. The one-piece, all-welded 12-gauge steel A-frame base provides the structural integrity required for continuous-duty use. Licensed HVAC, plumbing, and general mechanical contractors install this type of reel in service vehicles, shops, and fixed equipment stations.

The HP1125-4-100-ED is designed for 1/2-inch inside diameter hose with a 7/8-inch outside diameter and accommodates up to 100 feet of hose. The low-profile outlet riser and open drum slot design allows hose to spool flat without crimping, which is critical for maintaining flow rates and extending hose life. The reel suits fluid transfer, pressure washing, air supply, and similar high-demand applications in industrial, automotive, and mechanical service settings.

Key Features

• 12V DC, 1/2 HP explosion-proof reversible electric motor for powered retraction and extension
• Electroless nickel-plated steel 90-degree full-flow NPT swivel inlet for leak-resistant connection
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and operator safety
• One-piece all-welded 12-gauge steel A-frame base with integrated mounting pattern for secure installation
• Permanently lubricated, self-aligning pillow block bearings for smooth rotation and long service life
• Adjustable tension brake prevents free-wheeling; CPC powder coat finish resists chips, rust, and corrosion

Compatibility

Designed as an OEM-style replacement or direct-fit unit for 1/2-inch ID hose configurations requiring a motorized reel with explosion-proof motor capability in the COXREELS 1125 Series platform.

Installation Notes

Mounting and electrical connections should be performed by a qualified technician familiar with 12-volt DC wiring and applicable NEC requirements for explosion-proof equipment. Disconnect and lock out all power sources before servicing the motor or swivel assembly. The integrated mounting pattern in the A-frame base simplifies surface mounting to walls, floors, or service vehicle floors using appropriate fasteners for the substrate. Verify hose ratings for working pressure and temperature before placing the reel in service.

Technical Specifications

• Hose Inside Diameter: 1/2 inch
• Hose Outside Diameter: 7/8 inch
• Hose Capacity: 100 feet
• Motor Voltage: 12 volts DC
• Motor Output: 1/2 HP
• Motor Type: Explosion-proof reversible electric
• Frame Material: 12-gauge steel, all-welded
• Finish: CPC powder coat
• Length: 25.5 inches
• Width: 22 inches
• Height: 22 inches
• Weight: 62 pounds
• UPC: 674255858343

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP1125-4-100-ED
