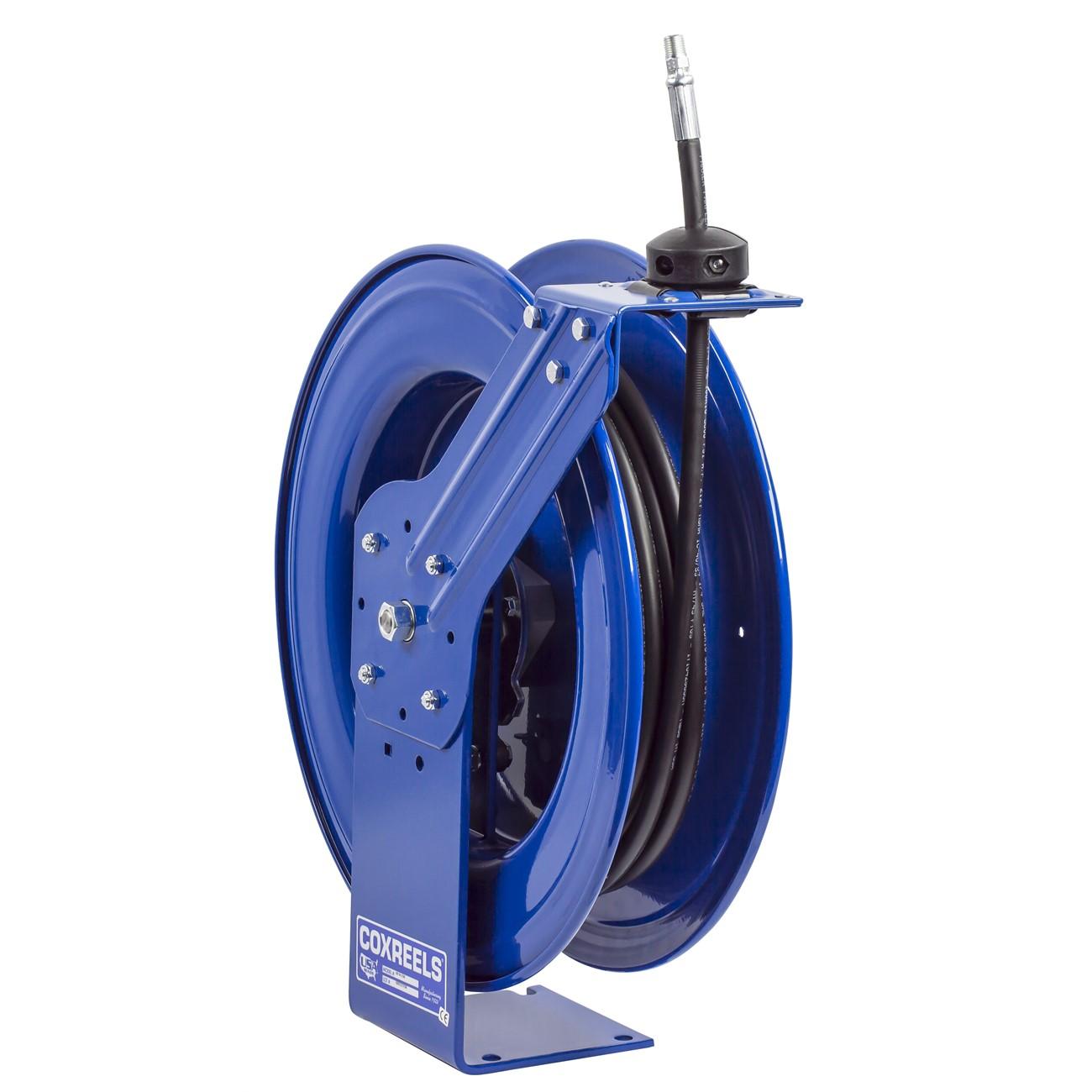

Coxreels HP-N-350 Spring Driven Hose Reel 3/8 in 40 Ft

Product Description

The COXREELS HP-N-350 is a spring-driven hose reel from the SH Series, designed for demanding trade applications where reliable hose management and fast retrieval are essential. Built on a large steel chassis, it accommodates a 3/8 inch ID, 11/16 inch OD hose up to 40 feet in length. The Super Hub dual axle support system is central to this design, reducing vibration during operation and reinforcing the structural integrity of the reel under repeated use. The CPC powder coat finish resists chipping and rust, making this unit appropriate for shop, fleet, or field environments. Licensed HVAC techs, plumbers, and fleet maintenance crews are the primary installers.

The HP-N-350 is suited for residential and light commercial service environments where compressed air, oil, or other compatible fluids are dispensed via hose. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, giving installers flexibility across shop bays, service trucks, and mechanical rooms. The single pedestal steel base requires no welding and provides a stable footprint without excessive weight. This reel is well matched to service vans and fixed service bays where hose management and quick retraction improve workflow efficiency.

Key Features

• Spring-driven retraction with cartridge-style motor that is fully enclosed, lubricated, and removable for maintenance
• Super Hub dual axle support system reduces vibration and strengthens structural integrity
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation without removing the reel from its mount
• Heavy duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven reel for use with 3/8 inch ID hose up to 40 feet in length across compatible fluid dispensing and compressed air service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting and the fluid system being serviced. Depressurize and isolate the supply line before making any connections to the swivel inlet. Verify that the mounting surface and hardware are rated for the combined weight of the reel and filled hose. Consult applicable local codes and the manufacturer documentation for torque and connection requirements specific to the fluid type in use.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 11/16 inches
• Hose Length Capacity: 40 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 65 pounds
• Material: Steel
• Drive Type: Spring driven
• Finish: CPC powder coat

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP-N-350
