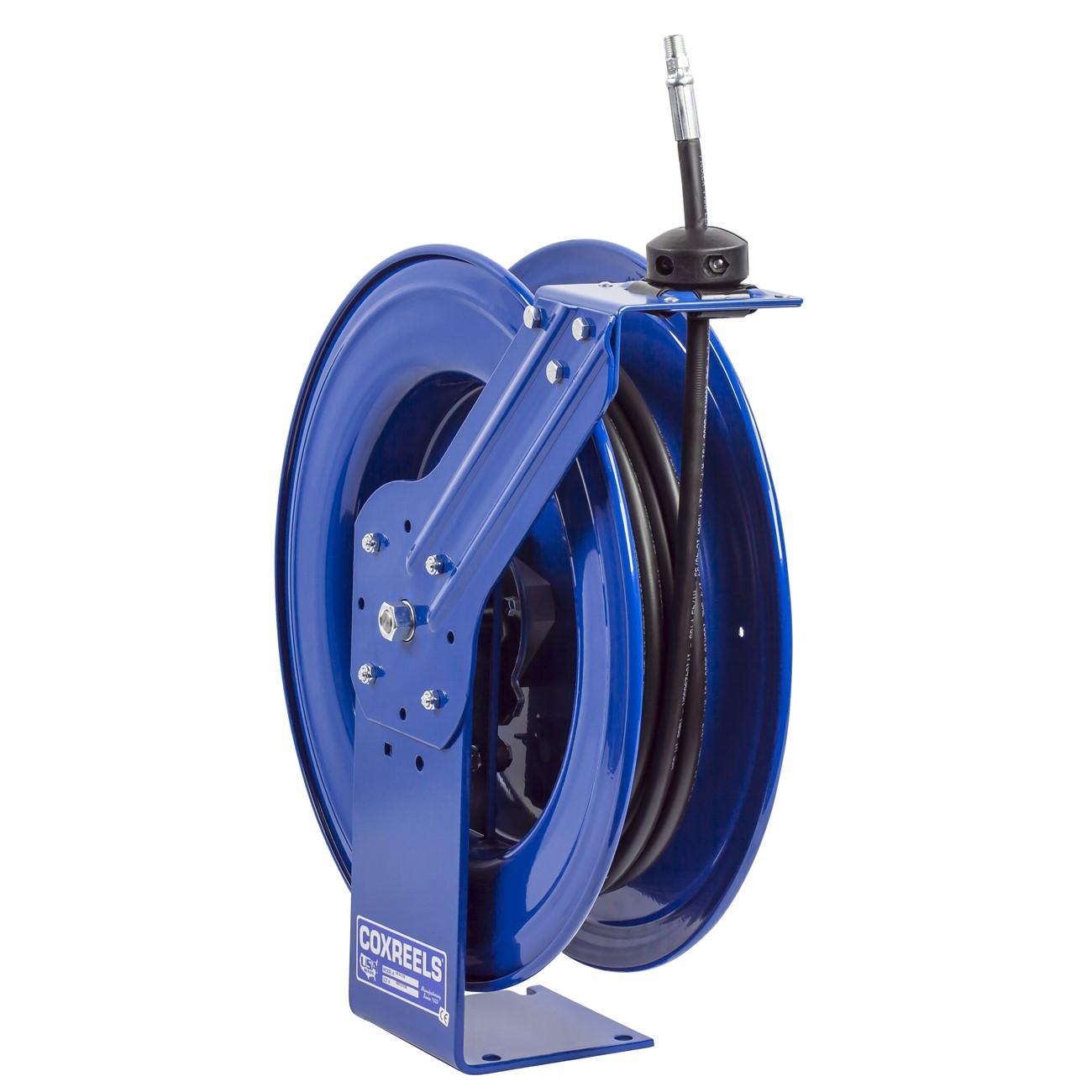

Coxreels HP-N-340 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS HP-N-340 is a spring-driven hose reel from the SH Series, built for demanding trade and industrial applications. The reel features a heavy-duty steel construction with a dual axle support system — called the Super Hub — that improves stability during operation, reduces vibration, and strengthens the overall frame. It accommodates 3/8 inch ID hose up to 50 feet in length and is finished with a chip-resistant, rust-inhibiting CPC powder coat. Licensed plumbers, pipefitters, and industrial maintenance techs who need a reliable, self-retracting hose management solution will find this reel suited to the task.

The HP-N-340 is designed for use in commercial and light industrial environments where organized hose management and consistent spring retraction are required. Typical install scenarios include shop air lines, fluid transfer stations, and service bays. The larger SH Series chassis accommodates longer hose runs and larger hose diameters compared to the standard P Series, making it a practical choice for higher-volume service operations. The multi-position guide arm allows mounting on walls, floors, ceilings, and vehicles.

Key Features

• Spring-driven retraction with a cartridge-style motor that is fully enclosed, lubricated, and removable for maintenance without special tools
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base and support post with no-weld construction for maximum stability
• Dual axle Super Hub support system reduces vibration and increases structural integrity during operation
• Adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement and direct fitment for 3/8 inch ID hose up to 50 feet; consult COXREELS SH Series documentation for specific hose type and pressure rating compatibility.

Installation Notes

Installation is typically performed by a licensed plumber, pipefitter, or qualified industrial maintenance technician. Shut off all fluid or air supply and relieve line pressure completely before mounting or connecting the reel. The multi-position guide arm must be secured to a structurally adequate surface rated for the combined weight of the reel and filled hose. Refer to applicable OSHA and local mechanical codes for hose reel mounting requirements in the specific work environment.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Length: 50 feet
• Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 64 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP-N-340
