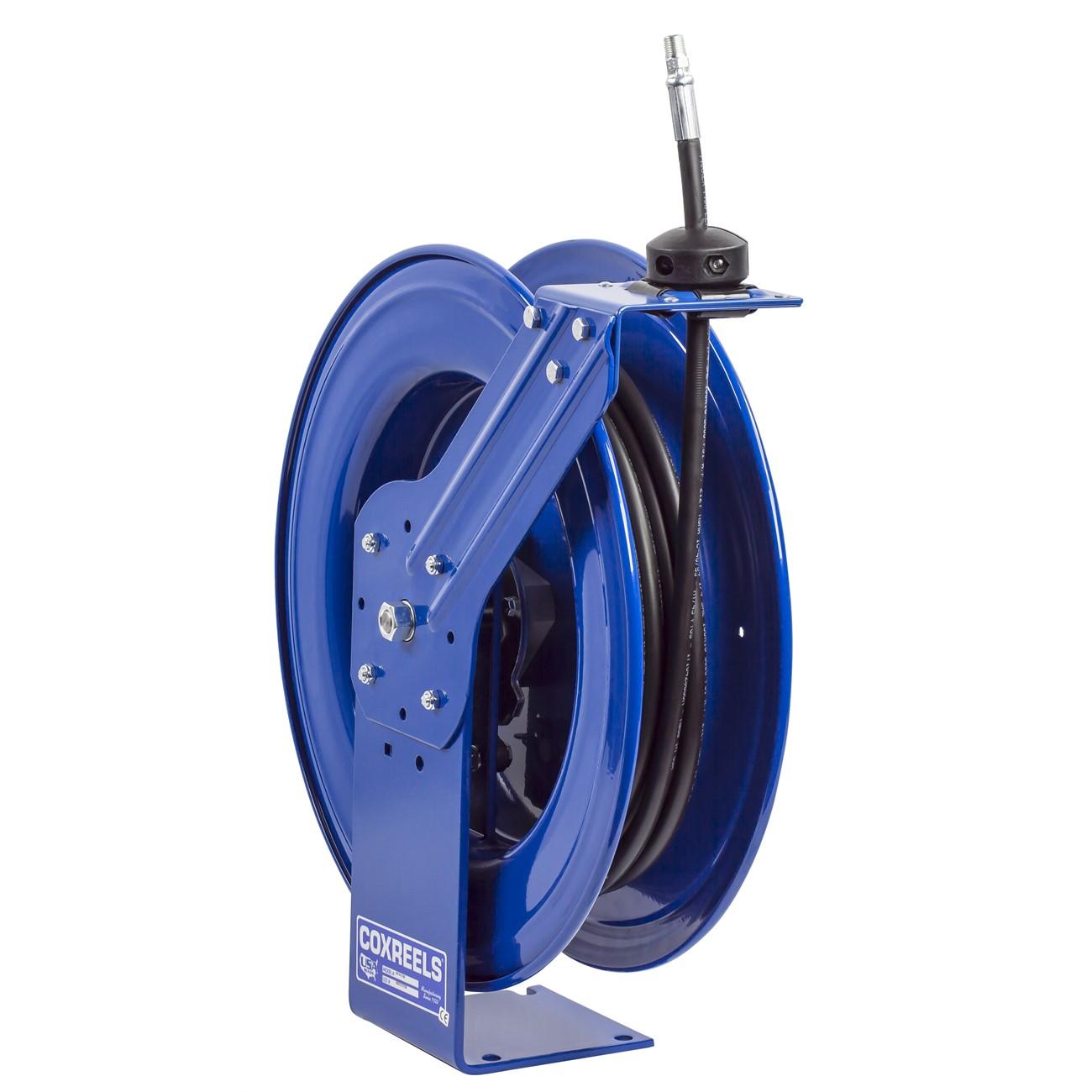

Coxreels HP-N-335 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS HP-N-335 is a spring-driven hose reel from the SH Series, designed for demanding industrial and trade applications. It features a 3/8 inch inner diameter hose path and accommodates up to 50 feet of hose. The larger chassis and frame are built to handle longer hose lengths and larger hose diameters compared to standard-duty reels. A CNC robotically spun and ribbed disc construction with rolled edges delivers structural strength and hose protection. The exclusive dual axle support system, which COXREELS calls the Super Hub, reduces vibration and reinforces stability during operation. This reel is installed by mechanical contractors, industrial maintenance technicians, and fleet service professionals.

The HP-N-335 is suited for use in automotive service bays, fleet maintenance facilities, industrial plants, and similar environments where a reliable, self-retracting hose management solution is needed. The multi-position guide arm allows mounting to walls, floors, ceilings, and vehicles, making it adaptable across a wide range of service configurations. The single-pedestal steel base provides a stable footprint without requiring a welded subframe. This reel is typically used with air, water, or compatible fluid hose in professional service settings.

Key Features

• Spring-driven retraction with cartridge-style motor that is fully enclosed, lubricated, and removable for maintenance without removing the reel from its mount
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without dismounting the reel
• CNC robotically spun ribbed discs with rolled edges for added strength, durability, and operator safety
• 1/4 inch solid one-piece steel base and support post, no-weld construction, with dual axle Super Hub support system
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven hose reel replacement or new installation for 3/8 inch ID hose applications up to 50 feet in length in industrial and service environments.

Installation Notes

Installation is typically performed by a qualified mechanical technician or industrial maintenance professional. Shut off and depressurize the supply line before connecting or disconnecting hose or fittings. Mounting hardware must be appropriate for the mounting surface and load; consult applicable facility and equipment codes. Do not exceed the rated hose diameter or length for this reel.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 11/16 inch
• Hose Capacity: 50 feet
• Drive Type: Spring driven
• Frame Material: Steel
• Base Construction: 1/4 inch solid one-piece steel, no-weld single pedestal
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255716209

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP-N-335
