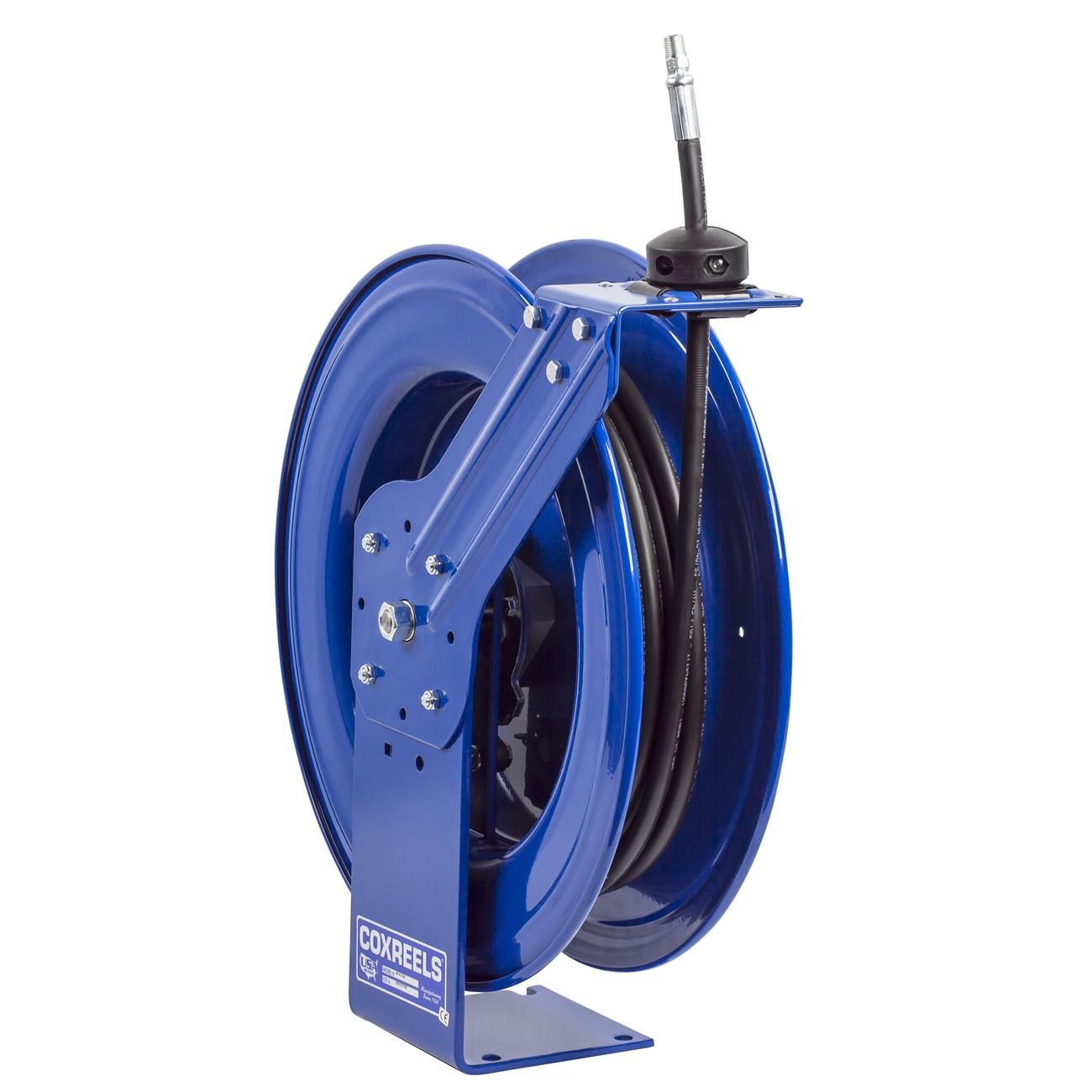

Coxreels HP-N-160 Spring Driven Hose Reel 3/8 Inch 35 Ft

Product Description

The COXREELS HP-N-160 is a spring-driven hose reel from the SH Series (Super Hub), built for trade and industrial environments where reliable hose retraction and structural durability are required. The reel accepts 3/8 inch ID, 9/16 inch OD hose up to 35 feet in length. The frame uses a single-pedestal steel base with a dual-axle Super Hub support system that reduces operational vibration and increases structural integrity. A CNC robotically spun and ribbed disc design, along with a cartridge-style spring motor and full-flow NPT swivel, make this unit practical for installers who need a dependable, low-maintenance reel in demanding service conditions. HVAC technicians, plumbers, and general contractors are the primary installers.

The HP-N-160 is suited for professional workshop, fleet, and field service applications where a compact yet heavy-duty spring-retractable hose reel is required. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of service bays, trucks, and equipment rooms. The adjustable solid rubber hose stop and chip-resistant CPC powder coat finish extend service life in high-use environments. The reel ships as a single unit and is intended for permanent or semi-permanent installation.

Key Features

• Spring-driven Super Hub dual-axle support system reduces vibration and increases reel stability during operation
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style spring motor is fully removable for field maintenance
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Multi-position guide arm mounts to wall, floor, ceiling, or vehicle without modification
• CPC powder coat finish provides chip resistance and rust inhibition for long service life

Compatibility

Designed for use with 3/8 inch ID, 9/16 inch OD hose up to 35 feet in length. Fits standard NPT hose and fitting connections typical of HVAC, plumbing, and general industrial hose reel applications.

Installation Notes

Installation should be performed by a qualified technician familiar with hose reel mounting requirements. De-pressurize and disconnect any connected fluid lines before servicing or mounting the reel. Verify that the mounting surface and hardware are rated for the combined weight of the reel and hose. Consult applicable local codes for vehicle or facility installation requirements.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 9/16 inch
• Maximum Hose Length: 35 feet
• Drive Type: Spring driven
• Disc Construction: CNC robotically spun, ribbed steel with rolled edges
• Base Material: Steel, single-piece no-weld pedestal
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 70 pounds
• UPC: 674255716193

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP-N-160
