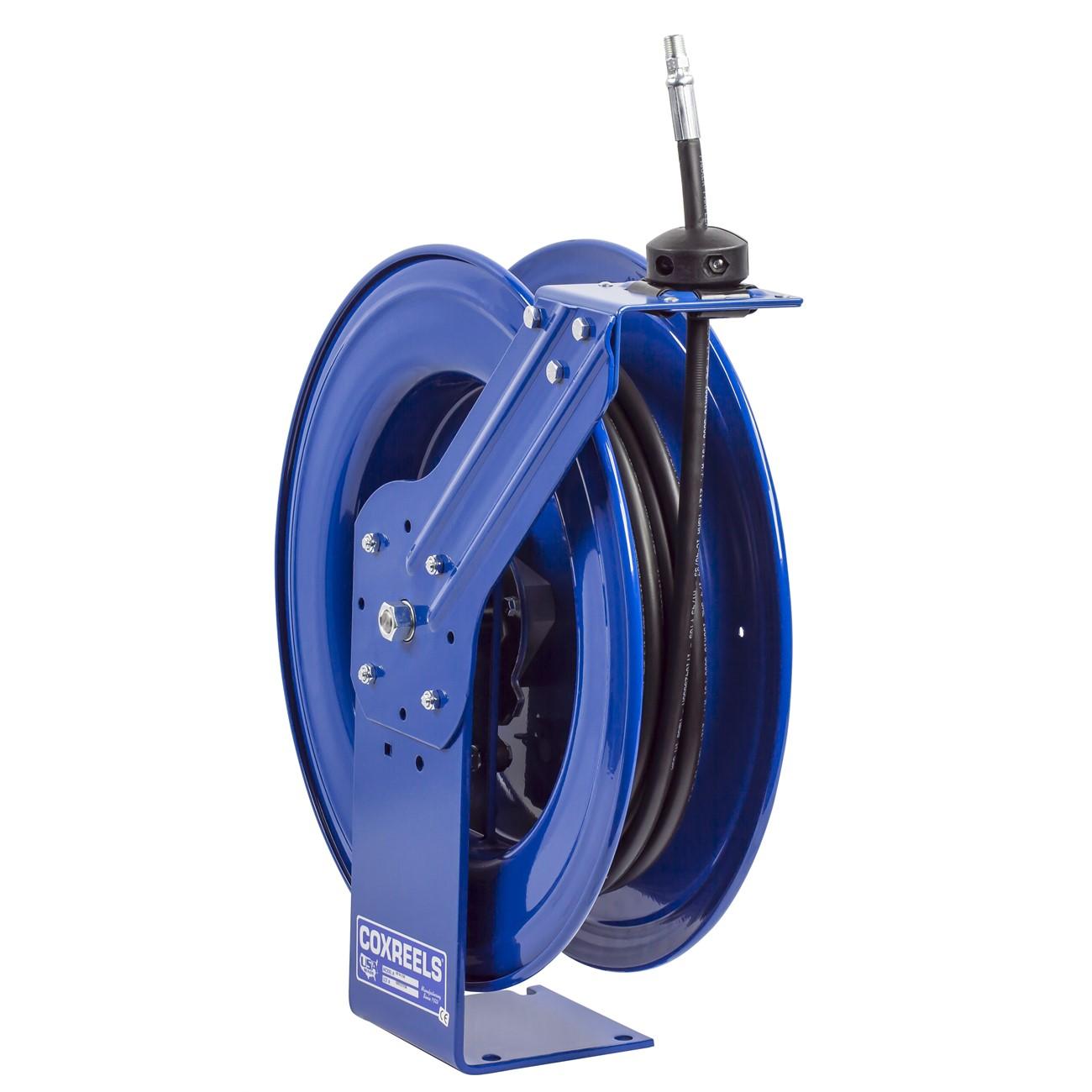

Coxreels HP-N-150 Spring Driven Hose Reel 1/4 in 50 Ft

Product Description

The COXREELS HP-N-150 is a spring-driven hose reel from the SH Series, built for heavy-duty service applications where a reliable, self-retracting reel is required. The larger chassis and frame are designed to accommodate longer hose lengths and larger hose diameters compared to standard compact reels. The reel features CoxReels exclusive dual axle support system, which reduces vibration, increases operational stability, and strengthens overall structural integrity. At 64 pounds, the HP-N-150 is a substantial unit sized for fixed installation in shop, fleet, or industrial environments. It is typically installed by mechanical contractors, fleet maintenance technicians, or industrial service professionals.

The HP-N-150 is suited for fixed-mount service installations including wall, floor, ceiling, and vehicle-mount configurations. The multi-position guide arm allows the reel to be oriented to fit the specific demands of the install location. Designed for use with 1/4 inch ID, 9/16 inch OD hose up to 50 feet in length, this reel fits applications such as compressed air, fluid dispensing, and general industrial hose management where a spring-return mechanism is required for organized, consistent hose retrieval.

Key Features

• Spring-driven retraction with enclosed, lubricated cartridge-style motor for easy removal and maintenance without disturbing the mount
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Solid one-piece steel base with single pedestal design and no-weld support post for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 1/4 inch ID, 9/16 inch OD hose up to 50 feet in length. Consult COXREELS SH Series documentation to confirm hose material and pressure rating compatibility for the intended fluid or gas application.

Installation Notes

Installation should be performed by a qualified technician familiar with the intended fluid or gas service. Depressurize and disconnect all supply lines before mounting or servicing the reel. Secure the mounting surface to support the combined weight of the reel and fully loaded hose. Verify that all NPT swivel connections are properly sealed and that the hose stop is adjusted before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Maximum Hose Length: 50 feet
• Drive Type: Spring driven
• Material: Steel
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 64 pounds
• Swivel Type: 90-degree full-flow NPT, zinc-plated steel
• Finish: CPC powder coat
• UPC: 674255716186

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP-N-150
