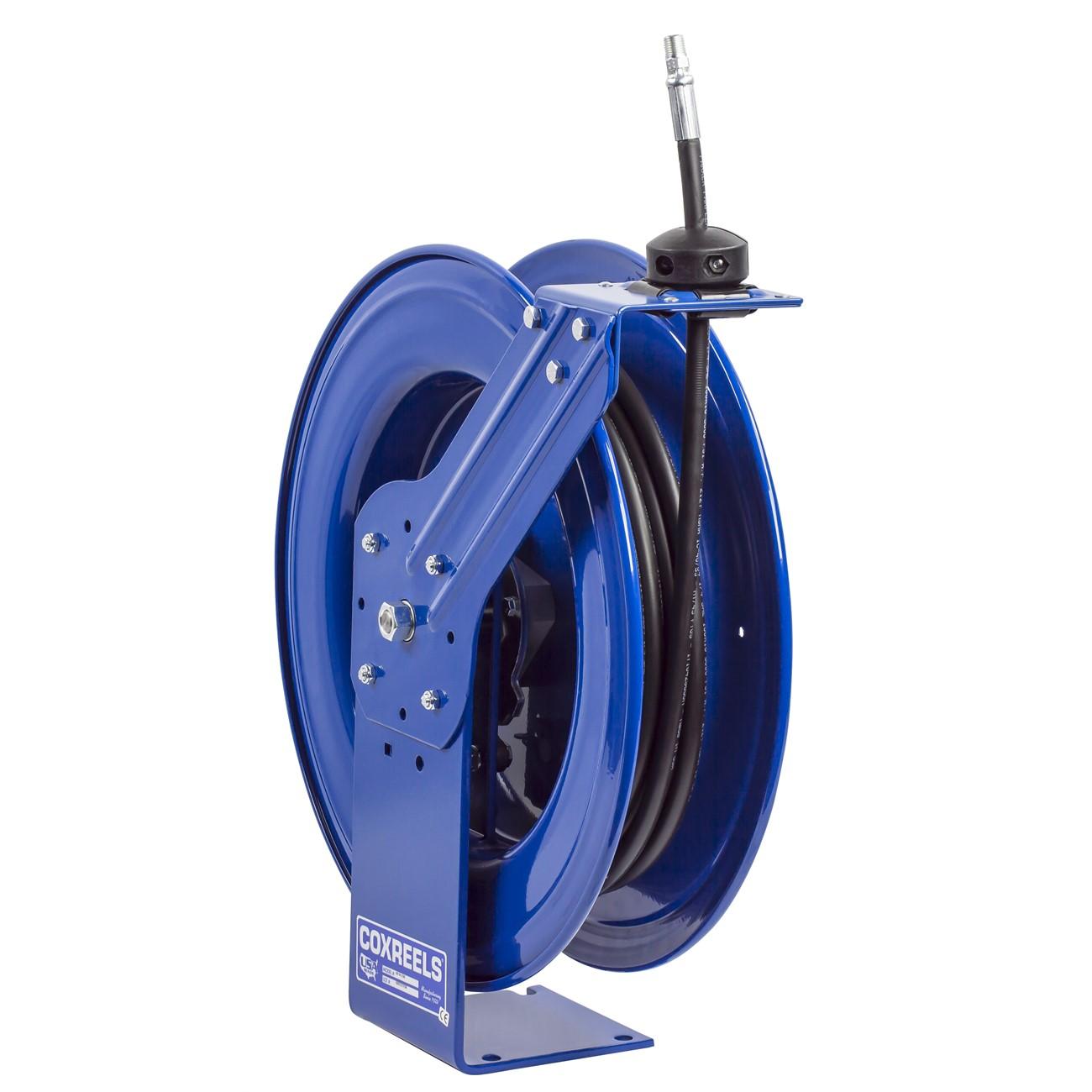

Coxreels HP-N-140 Spring Driven Hose Reel 40 Ft Steel

Product Description

The COXREELS HP-N-140 is a spring-driven hose reel from the SH Series, engineered for demanding trade applications where reliable hose retraction and structural durability are required. Built on a heavy-duty steel chassis with a solid one-piece base and support post — no welds — this reel accommodates hose with a 1/4 inch ID and 9/16 inch OD up to 40 feet in length. The exclusive Super Hub dual axle support system reduces vibration and improves stability during operation. A CPC powder coat finish resists chips and rust for long service life. Licensed contractors, industrial service technicians, and fleet maintenance professionals are the primary installers and operators of this reel.

The HP-N-140 is suited for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across shop, service truck, and facility installations. The multi-position guide arm adjusts to fit each mounting scenario without specialized hardware. The 40-foot hose capacity and larger SH Series chassis make this reel appropriate for service bays, mechanical shops, and mobile service units where extended hose reach and stable retraction under load are necessary. The spring-driven retraction mechanism keeps hose coiled and off the floor between uses, reducing trip hazards and hose wear.

Key Features

• Spring-driven retraction with Super Hub dual axle support for reduced vibration and improved structural stability
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Enclosed, lubricated cartridge-style motor is removable for maintenance without special tooling
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, hose protection, and operator safety
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chipping and rust; adjustable solid rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed for use with 1/4 inch ID, 9/16 inch OD hose up to 40 feet in length. Fits standard NPT connections. Suitable as an OEM-style spring-driven reel replacement or new installation in industrial and service environments.

Installation Notes

Installation is typically performed by a qualified mechanic or service technician familiar with hose reel mounting requirements. Shut off all fluid supply lines and release system pressure before mounting or servicing the reel. Ensure the mounting surface is structurally rated for the reel weight and operational load. Consult local safety codes for vehicle-mounted or overhead installations.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length Capacity: 40 feet
• Drive Type: Spring driven
• Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 62 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: HP-N-140
