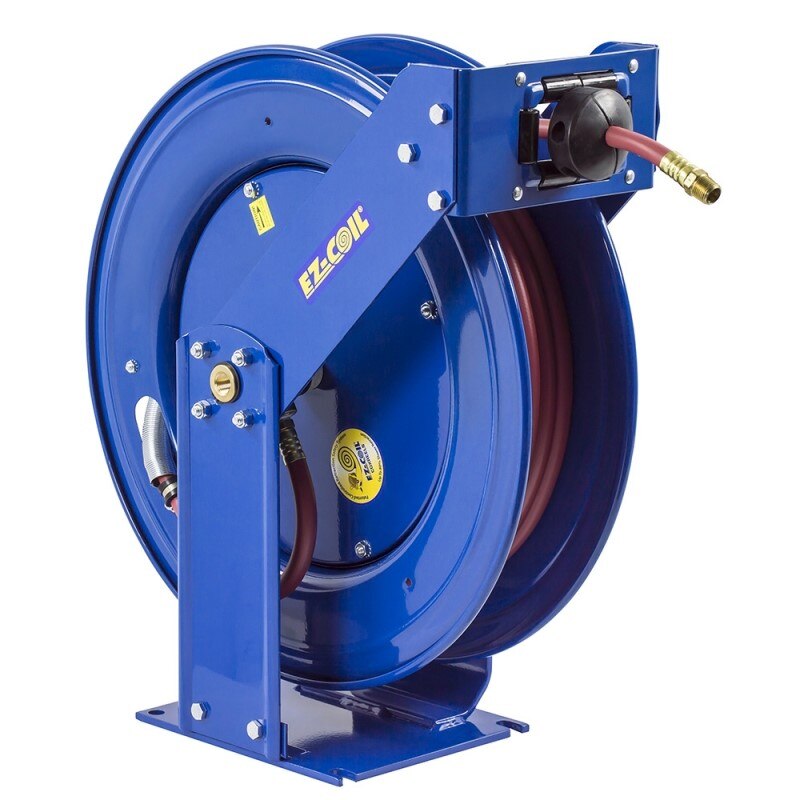

Coxreels EZ-TSHL-550 Spring Driven Hose Reel 3/4 in

Product Description

The COXREELS EZ-TSHL-550 is a spring-driven hose reel built for truck-mount and off-road service applications where standard reels fall short. Part of the COXREELS T Series EZ-T line, this unit features an extra-large chassis with dual pedestal-style arms and a Super Hub triple axle support system that reduces vibration and reinforces structural integrity under heavy use. The reel accepts 3/4 inch ID, 1 1/16 inch OD hose up to 50 feet in length. The enclosed, lubricated EZ-Coil cartridge motor retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk on the job. Licensed HVAC, plumbing, and fluid-transfer technicians working in demanding mobile or field environments are the primary installers.

The EZ-TSHL-550 is suited for vehicle-mounted service rigs, fleet maintenance operations, and off-road equipment where consistent hose management under vibration and impact is required. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of truck body and service van layouts. The robust CPC powder coat finish resists chipping and rust, which is critical in outdoor and high-moisture environments. This reel is built for applications that cycle hose frequently throughout a workday and cannot afford downtime from reel failure.

Key Features

• EZ-Coil spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazard
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Dual pedestal design with solid one-piece, no-weld steel base and Super Hub triple axle support for maximum stability
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting positions
• Long-lasting CPC powder coat finish resists chipping and rust; permanently lubricated precision bearings

Compatibility

Designed for use with 3/4 inch ID, 1 1/16 inch OD hose up to 50 feet. Suitable for truck-mount, vehicle, and stationary installations requiring a spring-driven reel in the COXREELS T Series EZ-T product family.

Installation Notes

Installation should be performed by a qualified technician familiar with fluid transfer or mobile service equipment. Depressurize and drain all hose and line pressure before mounting or servicing the reel. Secure the steel base to a structurally sound mounting surface rated for the combined weight of the reel, hose, and fluid load. Consult applicable local codes and vehicle upfitting standards when integrating into a service vehicle.

Technical Specifications

• Hose ID: 3/4 inch
• Hose OD: 1 1/16 inch
• Hose Length Capacity: 50 feet
• Drive Type: Spring driven
• Mount Style: Truck mount / multi-position
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 70 pounds
• UPC: 674255724075

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSHL-550
