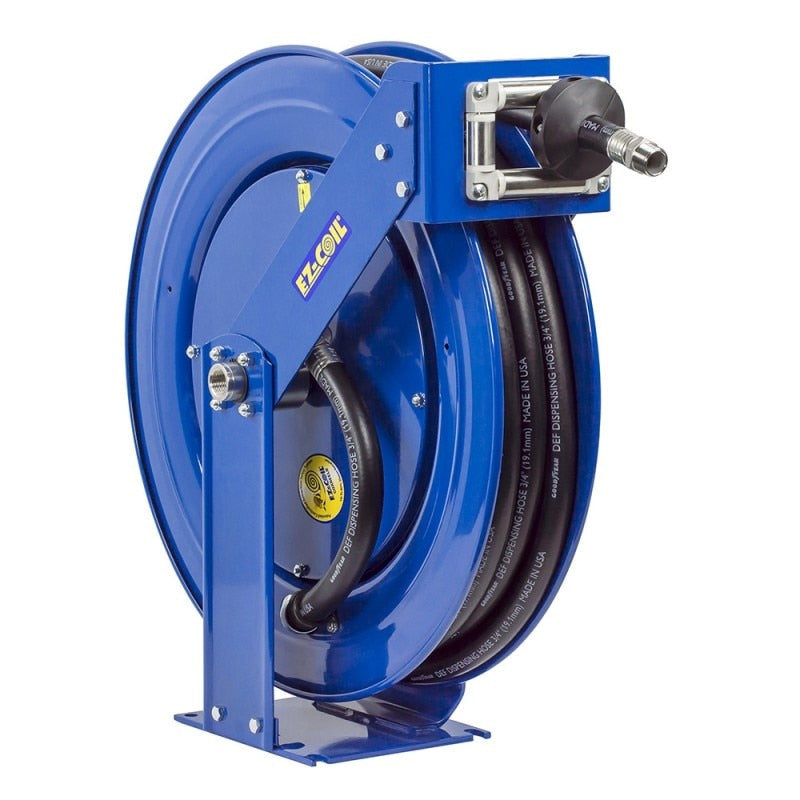

Coxreels EZ-TSHL-550-BBX Def Hose Reel 3/4 Inch Id

Product Description

The COXREELS EZ-TSHL-550-BBX is a supreme-duty dual pedestal DEF hose reel built for Diesel Exhaust Fluid dispensing in demanding stationary and mobile environments. It features a non-corrosive stainless steel 90-degree full-flow NPT swivel with chemical resistant Viton seals, providing a reliable, leak-resistant fluid path suited for DEF compatibility requirements. The reel ships with the EZ-COIL enclosed cartridge-style retraction motor, which retracts the hose up to 80 percent slower than conventional spring-driven reels, reducing snap-back risk on the shop floor or service vehicle. Licensed HVAC technicians, fleet service professionals, and diesel equipment mechanics install this unit in fueling bays, service trucks, and bulk DEF transfer stations.

The EZ-TSHL-550-BBX is designed for DEF dispensing applications where chemical compatibility, hose protection, and controlled retraction are priorities. The dual pedestal T Series frame suits high-cycle, heavy-use installations such as commercial truck stops, agricultural equipment dealers, and fleet maintenance facilities. The reel accommodates a 3/4 inch inner diameter hose and is built for either fixed wall or floor mounting as well as mobile vehicle-mounted configurations. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting orientations without requiring separate hardware.

Key Features

• Stainless steel 90-degree full-flow NPT swivel rated for DEF service with chemical resistant Viton seals
• EZ-COIL patented safety retraction system retracts up to 80 percent slower than standard spring reels
• Lubricated enclosed cartridge-style motor is removable for maintenance without full reel disassembly
• Heavy-duty CNC robotically spun and ribbed disc plates with rolled edges for hose protection and operator safety
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for Diesel Exhaust Fluid dispensing systems requiring chemical-resistant seals and controlled hose retraction; suited for stationary and mobile service installations in the COXREELS T Series supreme-duty dual pedestal configuration.

Installation Notes

Installation should be performed by a qualified service technician familiar with fluid dispensing equipment and applicable local codes. Shut off all fluid supply and depressurize the hose assembly completely before connecting or disconnecting fittings. Secure the pedestal base to a structurally sound mounting surface rated for the combined weight of the reel and filled hose. Follow all applicable OSHA and DEF handling guidelines when routing hose and making final NPT connections.

Technical Specifications

• Hose Inner Diameter: 3/4 inches
• Hose Outer Diameter: 1 1/8 inches
• Weight: 70 pounds
• Swivel Material: Stainless Steel
• Seal Material: Viton
• Retraction Type: EZ-COIL enclosed cartridge motor
• Frame Configuration: Dual pedestal supreme duty
• Finish: CPC powder coat
• UPC: 674255743625

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSHL-550-BBX
