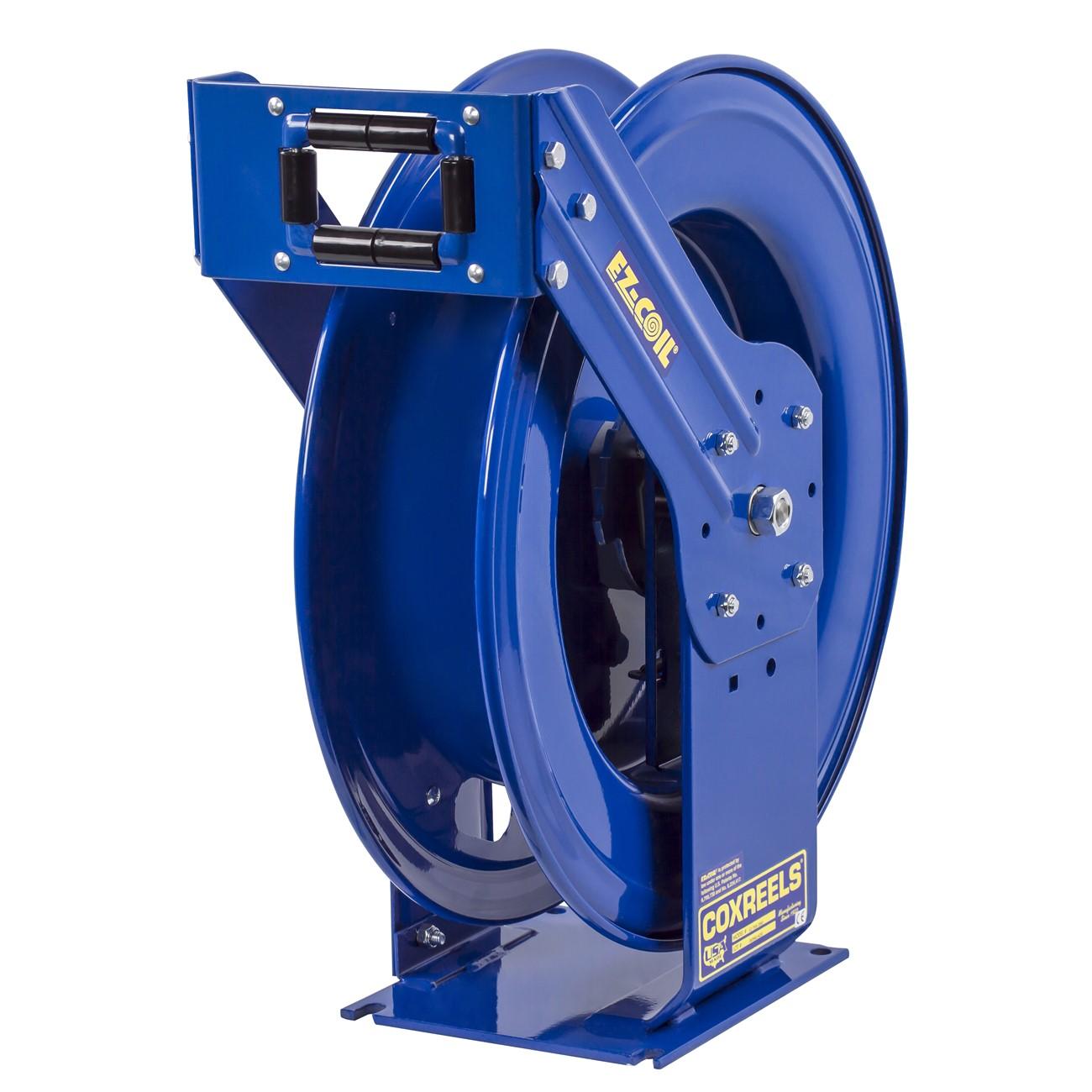

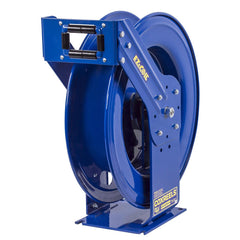

Coxreels EZ-TSHL-375 Spring Driven Hose Reel 3/8 Inch 75 Ft

Product Description

The COXREELS EZ-TSHL-375 is a spring-driven hose reel built for truck-mount and off-road service applications. It accepts 3/8 inch ID, 5/8 inch OD hose up to 75 feet in length. The reel uses an enclosed, lubricated cartridge-style spring motor with Coxreels patented EZ-Coil technology, which slows retraction speed by up to 80 percent compared to conventional spring reels — reducing hose wear and operator injury risk. The heavy-duty chassis features dual pedestal-style arms, a one-piece steel base, and the Coxreels Super Hub triple axle support system, which limits vibration and reinforces structural integrity under sustained abuse. Licensed trade professionals and fleet service technicians install this reel in demanding mobile service environments.

The EZ-TSHL-375 is engineered for truck-mounted service rigs, off-road equipment maintenance, and industrial mobile service applications where vibration, shock, and environmental exposure are constant concerns. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service vehicle layouts. CNC robotically spun and ribbed discs with rolled edges protect the hose during repeated retraction cycles. The CPC powder coat finish resists chips, rust, and corrosion for long service life in outdoor and harsh-environment use.

Key Features

• EZ-Coil spring motor retracts up to 80 percent slower than conventional reels, reducing hose and operator wear
• Enclosed, lubricated cartridge-style spring motor is removable for field maintenance without dismounting the reel
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Super Hub triple axle support reduces vibration and strengthens structural integrity for off-road and truck-mount use
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish provides chip resistance, rust inhibition, and long-term corrosion protection
• Permanently lubricated precision bearings require no scheduled bearing maintenance

Compatibility

Designed as an OEM-style truck-mount spring-driven hose reel for 3/8 inch ID hose up to 75 feet in length. Suitable for use in mobile service, fleet maintenance, and off-road equipment applications requiring a spring-retract reel.

Installation Notes

Installation is performed by qualified service technicians familiar with mobile hydraulic or pneumatic fluid service systems. Depressurize and bleed all hose and supply lines before mounting or connecting the reel. Secure the one-piece steel base to a structurally adequate mounting surface rated for the combined weight of the reel and fully loaded hose. Verify NPT fitting thread engagement and swivel integrity before returning the system to service.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 5/8 inch
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Mount Type: Truck mount / multi-position
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 73 pounds
• UPC: 674255724037

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSHL-375
