Coxreels EZ-TSHL-3100 Spring Driven Hose Reel 100 Ft

Product Description

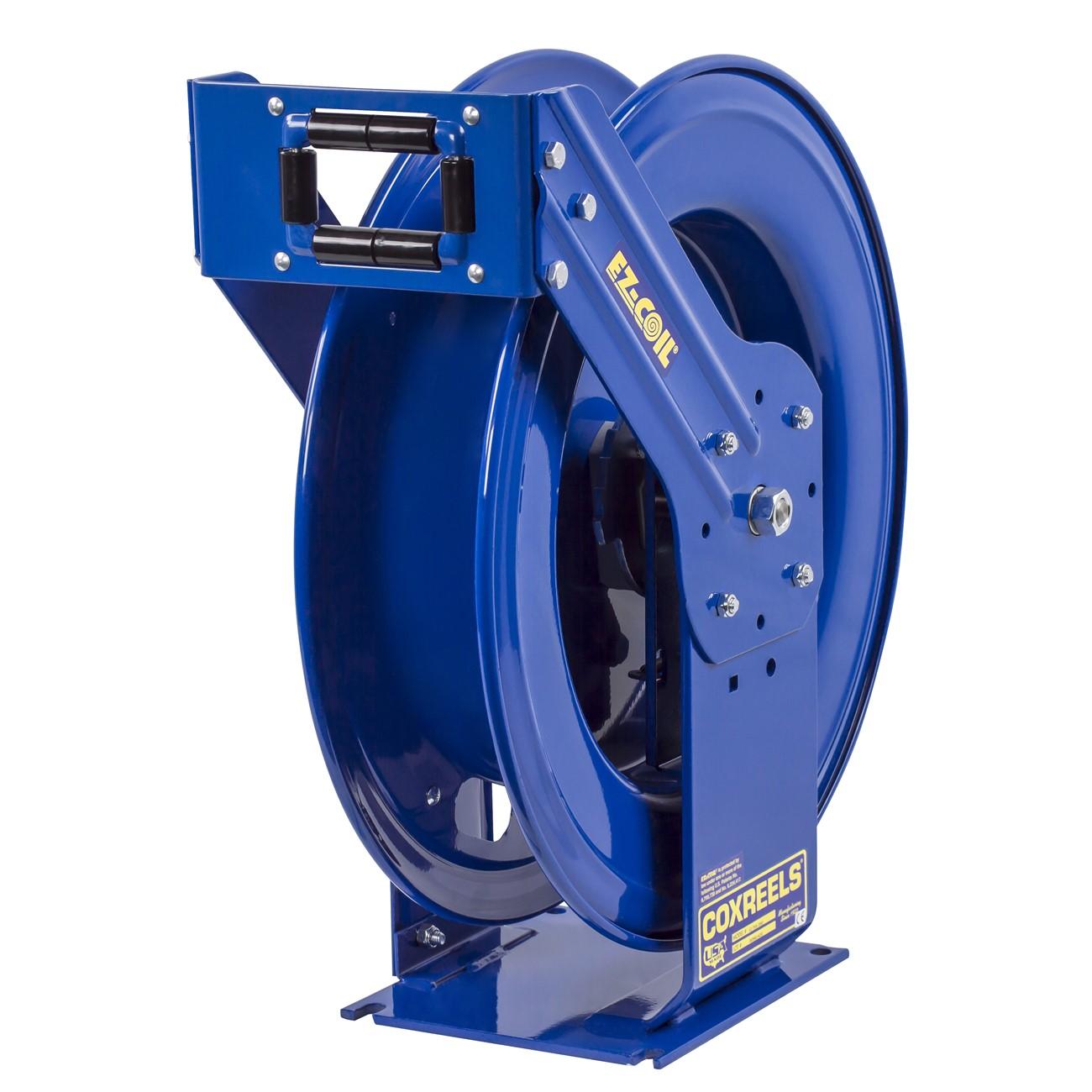

The COXREELS EZ-TSHL-3100 is a spring-driven hose reel built for truck-mount and off-road service applications where durability and reliability are non-negotiable. It accepts 3/8-inch ID hose up to 100 feet in length and features an EZ-Coil enclosed cartridge-style motor that retracts hose up to 80% slower than conventional spring-driven reels, reducing snap-back risk on the job. The reel weighs 74 pounds and is constructed around a heavy-duty dual pedestal design with a one-piece steel base. Licensed technicians and fleet service professionals working in demanding field environments rely on this reel for consistent, repeatable hose management cycle after cycle.

The EZ-TSHL-3100 is designed for truck-mounted service rigs and off-road vehicles operating in high-abuse environments such as fleet maintenance, industrial field service, and mobile lubrication or hydraulic applications. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of service truck layouts and work site setups.

Key Features

• EZ-Coil enclosed cartridge motor retracts hose up to 80% slower than conventional spring-driven reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for increased strength, hose protection, and operator safety
• Dual pedestal design with solid one-piece steel base and support post — no weld construction — for maximum structural stability
• Coxreels Super Hub triple axle support reduces vibration and reinforces structural integrity for off-road use
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings for long service life

Compatibility

Designed as an OEM-style truck-mount spring-driven hose reel compatible with 3/8-inch ID hose up to 100 feet in length. Intended for mobile service, off-road, and vehicle-mounted applications requiring a spring-retraction hose management system.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid-handling equipment. Shut off all fluid supply and depressurize the hose and line before mounting or servicing the reel. Ensure the mounting surface and fasteners are rated to support the reel weight of 74 pounds plus hose and fluid load. Consult applicable vehicle safety and equipment mounting standards before drilling or welding any mounting hardware to a service vehicle frame.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Length Capacity: 100 feet
• Drive Type: Spring driven
• Mount Type: Truck mount / multi-position
• Swivel Material: Solid brass
• Swivel Type: 90-degree full-flow NPT
• Base Material: Steel
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 74 pounds
• UPC: 674255724044

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSHL-3100
