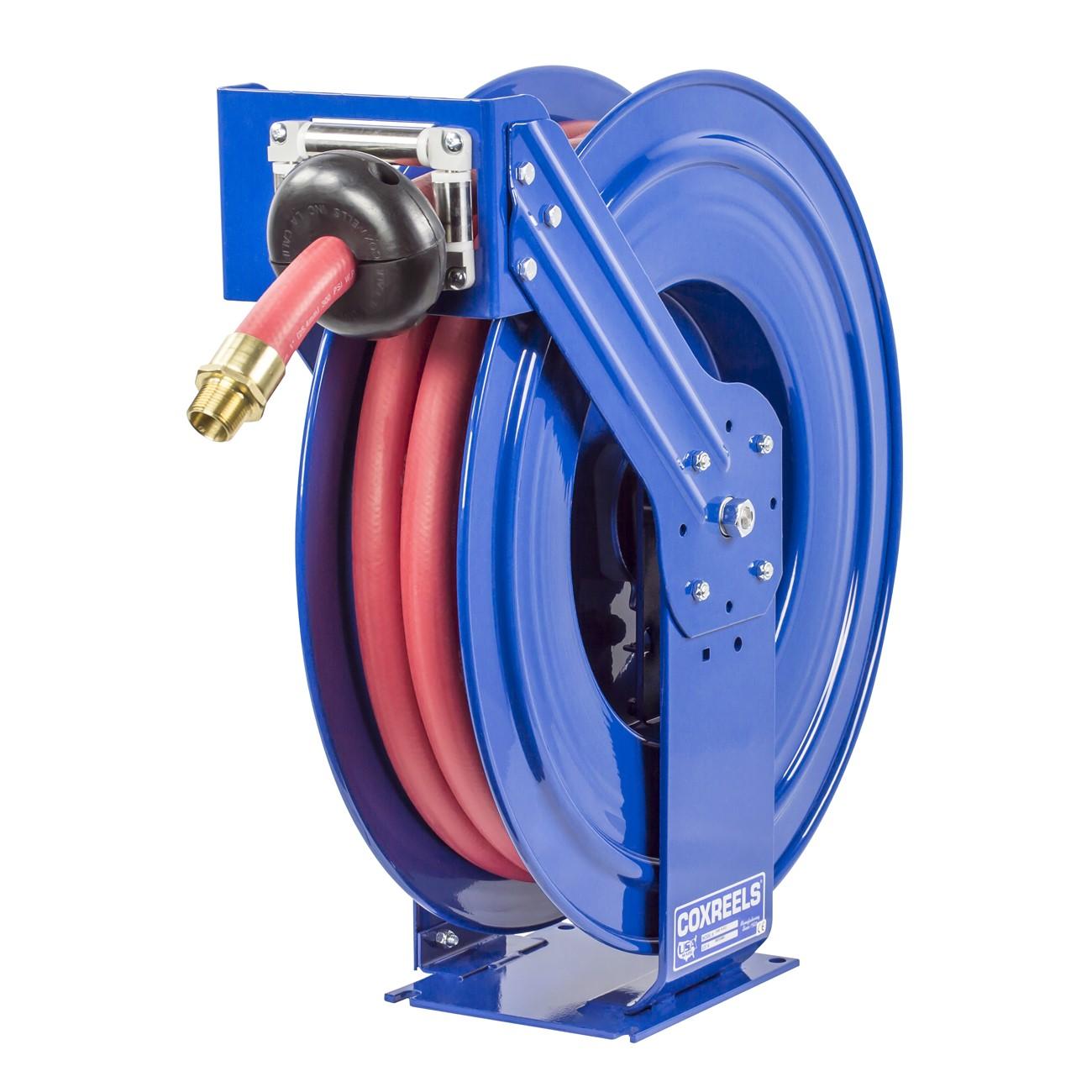

Coxreels EZ-TSHF-535 Fuel Hose Reel 35 Ft Dual Pedestal

Product Description

The COXREELS EZ-TSHF-535 is a supreme-duty dual pedestal fuel hose reel built for professional fuel dispensing in demanding service environments. Part of the T Series lineup, it handles non-aromatic fuels including diesel, kerosene, fuel oil, and heating oil. The reel accepts 3/4 inch ID hose up to 35 feet and features a machined solid brass 90-degree full-flow NPT swivel rated for fuel service. The EZ-Coil retraction system uses a lubricated, enclosed cartridge-style motor that slows retract speed up to 80 percent compared to conventional spring-return reels, reducing snap-back hazard during fuel transfer operations. Weighing 91 pounds, this unit is built for fixed or vehicle-mounted installations.

The EZ-TSHF-535 is suited for heavy-duty commercial and industrial fuel dispensing applications including fuel and lube trucks, tank trucks, aircraft refuelers, bulk liquid transport, ground support equipment, and stationary fuel storage dispensing systems. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable across utility fleet and transport service configurations. The dual pedestal frame with a solid one-piece steel base provides the structural stability required for high-cycle dispensing duty.

Key Features

• EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel designed for fuel dispensing service
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural strength
• Dual pedestal frame with solid one-piece steel base and support post, no-weld construction, with exclusive Super Hub triple axle support
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed for use with 3/4 inch ID non-aromatic fuel hose in diesel, kerosene, fuel oil, and heating oil dispensing systems. Suitable for vehicle-mounted and stationary fuel dispensing installations requiring a supreme-duty dual pedestal T Series reel configuration.

Installation Notes

Installation should be performed by a qualified technician familiar with fuel system plumbing and applicable local codes. Shut off all fuel supply lines and relieve system pressure before mounting or connecting the reel. Secure the base to a structurally adequate surface using hardware rated for the combined weight of the unit and filled hose. Verify all NPT swivel and hose end connections are leak-free before returning the system to service.

Technical Specifications

• Hose ID: 3/4 inches
• Hose Length: 35 feet
• Frame Style: Dual pedestal T Series
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: Steel, one-piece no-weld construction
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Height: 27 inches
• Width: 13 inches
• Length: 25 inches
• Weight: 91 pounds
• Fuel Compatibility: Diesel, kerosene, fuel oil, heating oil (non-aromatic)

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSHF-535
