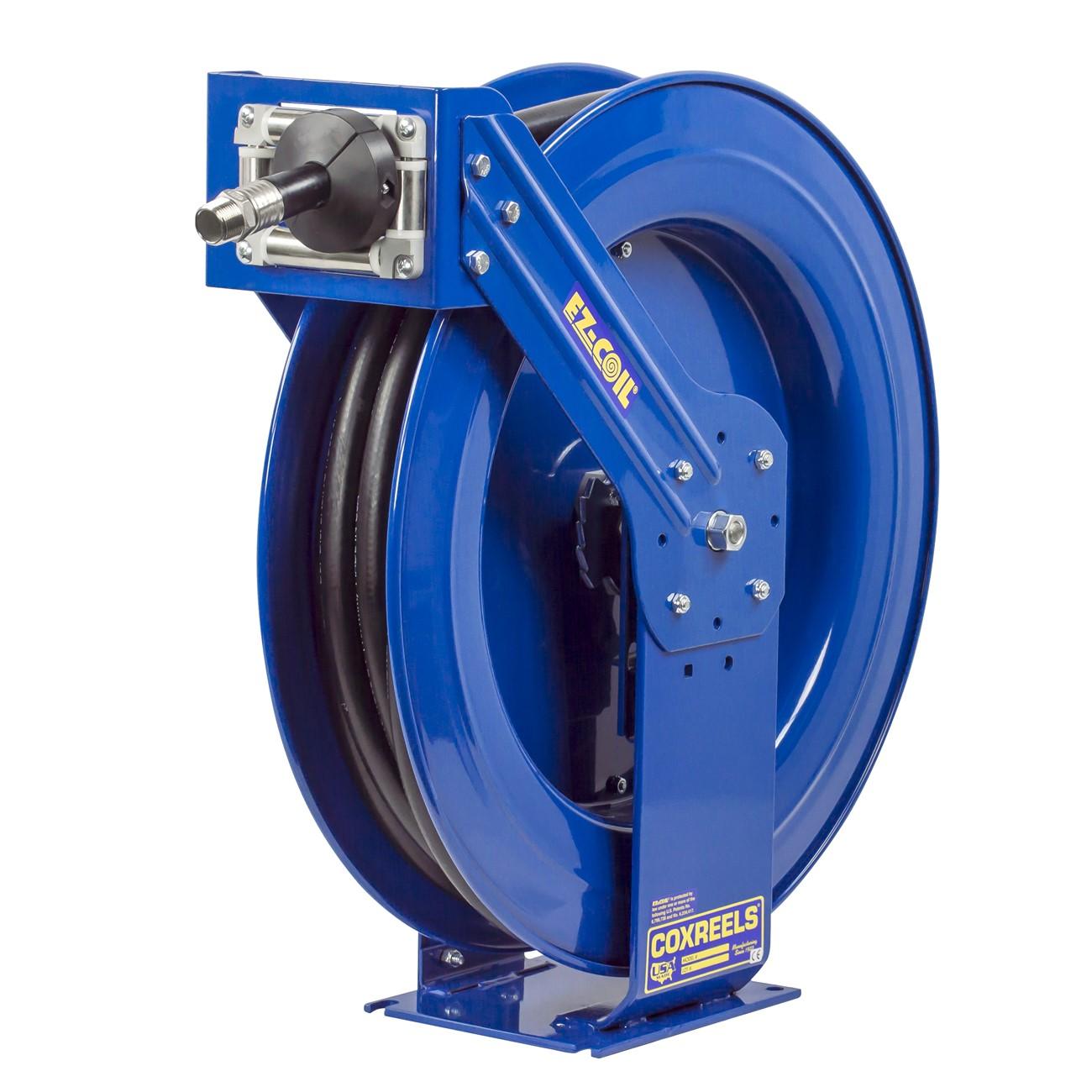

Coxreels EZ-TSH-550-DF-BBX Def Hose Reel Dual Pedestal

Product Description

The COXREELS EZ-TSH-550-DF-BBX is a supreme-duty dual pedestal Diesel Exhaust Fluid (DEF) hose reel designed for safe, reliable DEF dispensing in both stationary and mobile applications. Built to the T Series standard, it features a stainless steel 90-degree full-flow NPT external swivel with chemical-resistant Viton seals, ensuring compatibility with the corrosive nature of DEF fluid. The reel ships with a DEF dispensing hose sized at 3/4 inch ID and 1-1/8 inch OD. At 91 pounds, this is a heavy-duty unit intended for professional installation by fleet service technicians or shop maintenance crews. The EZ-Coil spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk during operation.

The EZ-TSH-550-DF-BBX is suited for commercial and fleet environments requiring consistent, high-volume DEF dispensing. Typical installations include truck service bays, agriculture equipment shops, and fueling stations where DEF is dispensed from bulk storage. The dual pedestal T Series configuration provides enhanced stability compared to single pedestal units, making it appropriate for high-traffic service areas or mobile vehicle-mounted setups where vibration and lateral load are concerns. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations to fit a wide range of facility layouts.

Key Features

• Stainless steel 90-degree full-flow NPT swivel with Viton seals rated for DEF chemical resistance
• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than standard reels for improved operator safety
• Supreme-duty dual pedestal T Series frame with Super Hub dual axle support system for reduced vibration and increased stability
• CNC robotically spun and ribbed disc plates with rolled edges for hose protection and structural strength
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish for chip resistance and corrosion inhibition; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style DEF dispensing reel compatible with standard 3/4 inch NPT DEF hose and dispensing equipment in commercial fleet and bulk fluid transfer applications.

Installation Notes

Installation should be performed by a qualified service technician familiar with fluid dispensing equipment and applicable local codes. Power down or depressurize the DEF supply line before connecting or servicing the swivel assembly. The external swivel is designed for easy field access, allowing seal inspection and replacement without removing the full reel from its mount. Secure the base to a structurally sound surface using fasteners appropriate for the mounting substrate, and verify guide arm position before routing hose to avoid kinking.

Technical Specifications

• Hose Inside Diameter: 3/4 inch
• Hose Outside Diameter: 1-1/8 inch
• Swivel Type: Stainless steel 90-degree full-flow NPT
• Seal Material: Viton (chemical resistant)
• Configuration: Supreme-duty dual pedestal (T Series)
• Spring Motor: EZ-Coil enclosed cartridge, lubricated
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Finish: CPC powder coat
• Weight: 91 pounds
• UPC: 674255743427

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-550-DF-BBX
