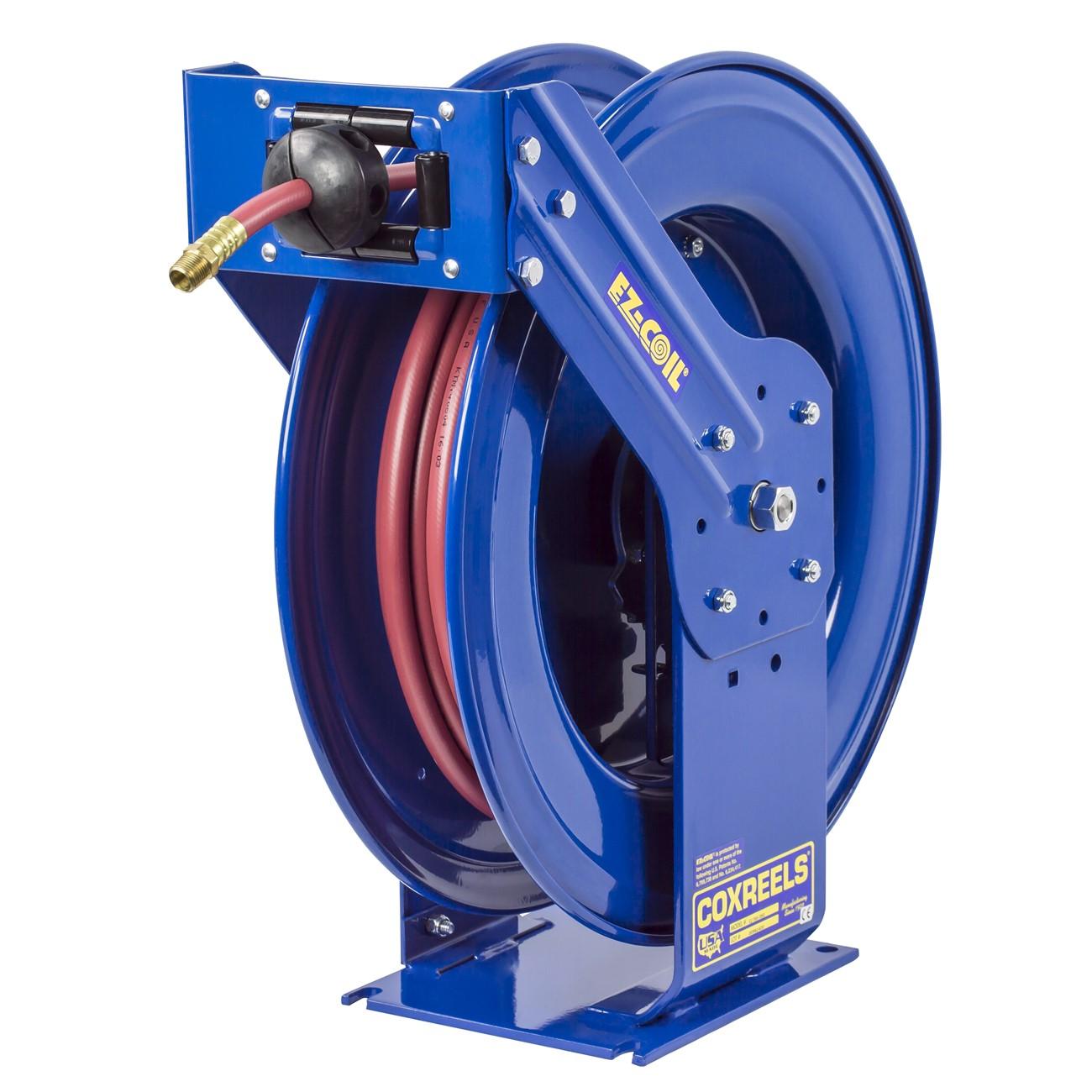

Coxreels EZ-TSH-475 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS EZ-TSH-475 is a spring-driven, truck-mount hose reel built for trade professionals who work in off-road and high-demand service environments. Part of the COXREELS T Series EZ-T line, it accepts 1/2 inch ID hose up to 75 feet and delivers reliable, controlled retraction through the patented EZ-Coil cartridge motor system, which slows retraction up to 80 percent compared to conventional spring reels. The heavy-duty chassis features dual pedestal-style arms, a one-piece steel base, and the COXREELS Super Hub triple axle support to reduce vibration and maintain structural integrity under rough service conditions. Licensed HVAC, plumbing, and fleet service technicians rely on this reel for consistent performance in abusive field environments.

The EZ-TSH-475 is designed for truck-mount applications in residential and commercial service settings where off-road durability is required. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across service vehicle setups. The machined brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount, reducing service downtime in the field.

Key Features

• EZ-Coil patented spring motor retracts up to 80 percent slower than conventional reels for controlled, safe hose retrieval
• Lubricated, enclosed cartridge-style spring motor is removable for in-field maintenance without full disassembly
• Machined solid brass 90-degree full-flow NPT swivel supports fast hose installation and seal service without dismounting the reel
• CNC robotically spun and ribbed steel discs with rolled edges for hose protection and operator safety
• Dual pedestal design with solid one-piece steel base and support post, no weld, plus Super Hub triple axle support
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style truck-mount hose reel for service vehicles and equipment requiring a spring-driven, 1/2 inch ID hose management solution in demanding off-road or fleet service applications.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle upfitting or industrial hose reel mounting. Secure the reel base to a structurally sound mounting surface using fasteners appropriate for the vehicle or wall material. Relieve all system pressure and disconnect the hose from the fluid supply before servicing the swivel, spring motor, or bearings. Follow all applicable safety codes and vehicle manufacturer guidelines when mounting to a service truck or trailer.

Technical Specifications

• Hose ID: 1/2 inch
• Hose Length Capacity: 75 feet
• Hose OD: 3/4 inch
• Drive Type: Spring driven
• Mount Type: Truck mount
• Swivel Material: Solid brass
• Swivel Angle: 90 degrees
• Base Material: Steel
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 82 pounds
• UPC: 674255723030

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-475
