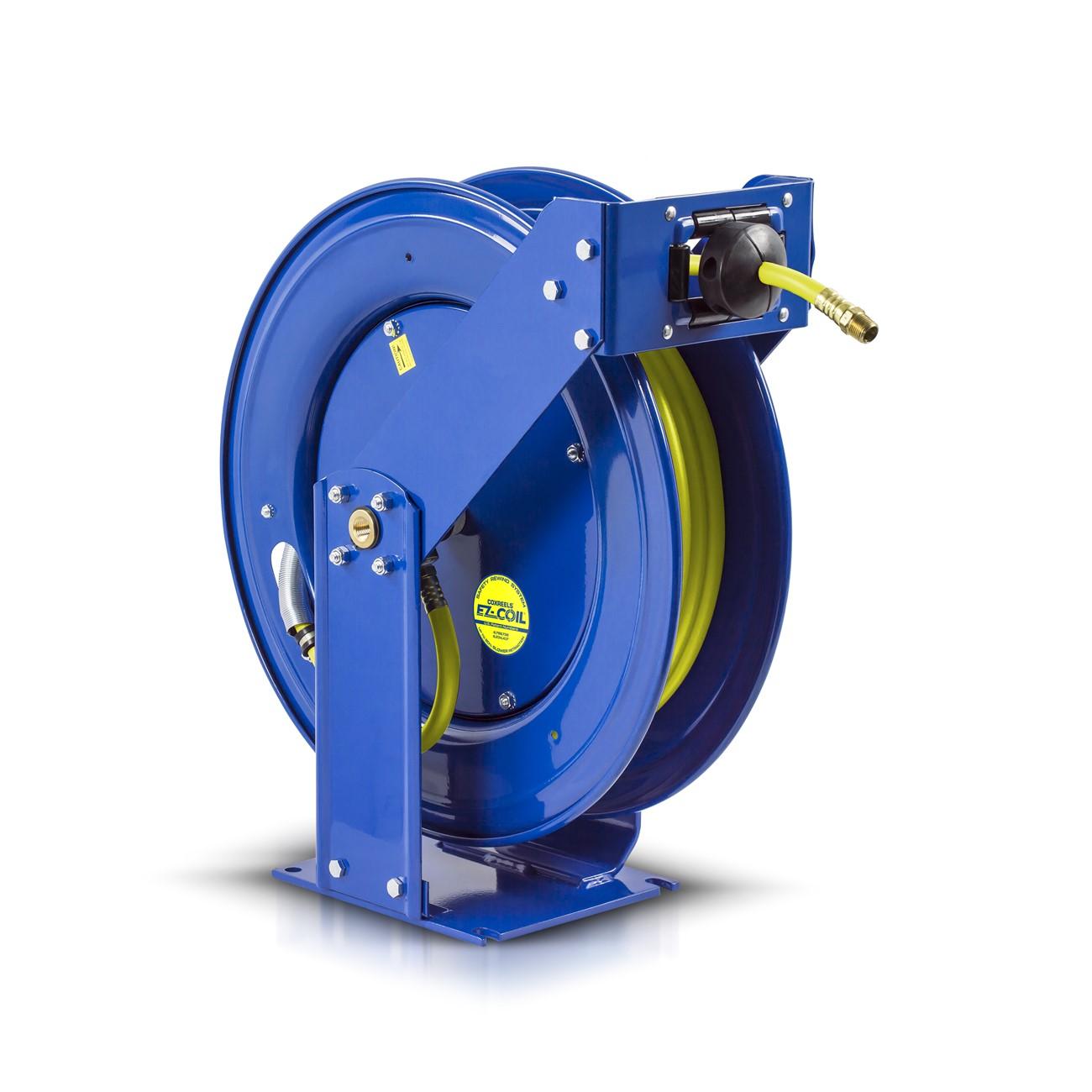

Coxreels EZ-TSH-475-HV Hv Safety Hose Reel 1/2 in

Product Description

The COXREELS EZ-TSH-475-HV is a high-visibility, spring-driven retractable hose reel built for trade environments where hose management and jobsite safety are both critical. The reel features Coxreels patented EZ-Coil controlled retraction system, which slows hose retraction to up to 80% slower than conventional spring reels, reducing snap-back hazards. The spool is built from heavy-duty CNC robotically spun steel discs with ribbed faces and rolled edges for strength and hose protection. A machined solid brass 90-degree full-flow NPT swivel allows fast hose installation and seal maintenance without removing the reel from its mount.

This reel is suited for industrial, commercial, and fleet-service applications where a durable, high-cycle retractable hose reel is required. The bright yellow hybrid hose with white glossy stripe provides immediate visual identification on busy shop floors, service bays, or vehicle-mounted installations. The guide arm adjusts for wall, floor, ceiling, and vehicle mounting positions, making it adaptable across a wide range of fixed and mobile service setups. Licensed mechanics, fleet techs, and industrial maintenance crews are the primary installers and end users.

Key Features

• EZ-Coil controlled retraction slows hose return up to 80% compared to conventional spring reels, reducing snap-back risk
• Lubricated, enclosed cartridge-style retraction motor is removable for easy field maintenance
• Heavy-duty CNC spun and ribbed steel discs with rolled edges protect hose and operators
• Machined solid brass 90-degree full-flow NPT swivel — no need to dismount the reel for hose changes or seal service
• High-visibility hybrid PVC-rubber hose in bright yellow with white stripe offers kink resistance, low coil memory, and lays flat to reduce trip hazards
• 1/4-inch solid one-piece steel base with dual pedestal design and Coxreels triple-axle super hub support — no welds
• Adjustable guide arm compatible with wall, floor, ceiling, and vehicle mounting; chip-resistant CPC powder coat finish

Compatibility

Designed as an OEM-style retractable hose reel for industrial and commercial hose management systems requiring a 1/2 inch inside-diameter hose path with NPT swivel connection.

Installation Notes

Installation is typically performed by industrial maintenance technicians or licensed mechanics following applicable facility safety codes. Before mounting or servicing, relieve all system pressure and depressurize the hose completely. Secure the reel to a structurally rated wall, floor, ceiling, or vehicle surface using hardware rated for the reel weight and anticipated hose load. Verify NPT thread connections are properly sealed with thread sealant appropriate for the media being conveyed.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Swivel Type: 90-degree full-flow NPT, machined solid brass
• Retraction System: EZ-Coil spring-driven controlled retraction
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: 1/4 inch solid one-piece steel
• Hose Type: Hybrid PVC-rubber, high-visibility yellow with white stripe
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Mounting Positions: Wall, floor, ceiling, vehicle
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 82 pounds
• UPC: 674255752795

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-475-HV
