Coxreels EZ-TSH-450-HV Hv Safety Hose Reel 1/2 in Id Steel

Product Description

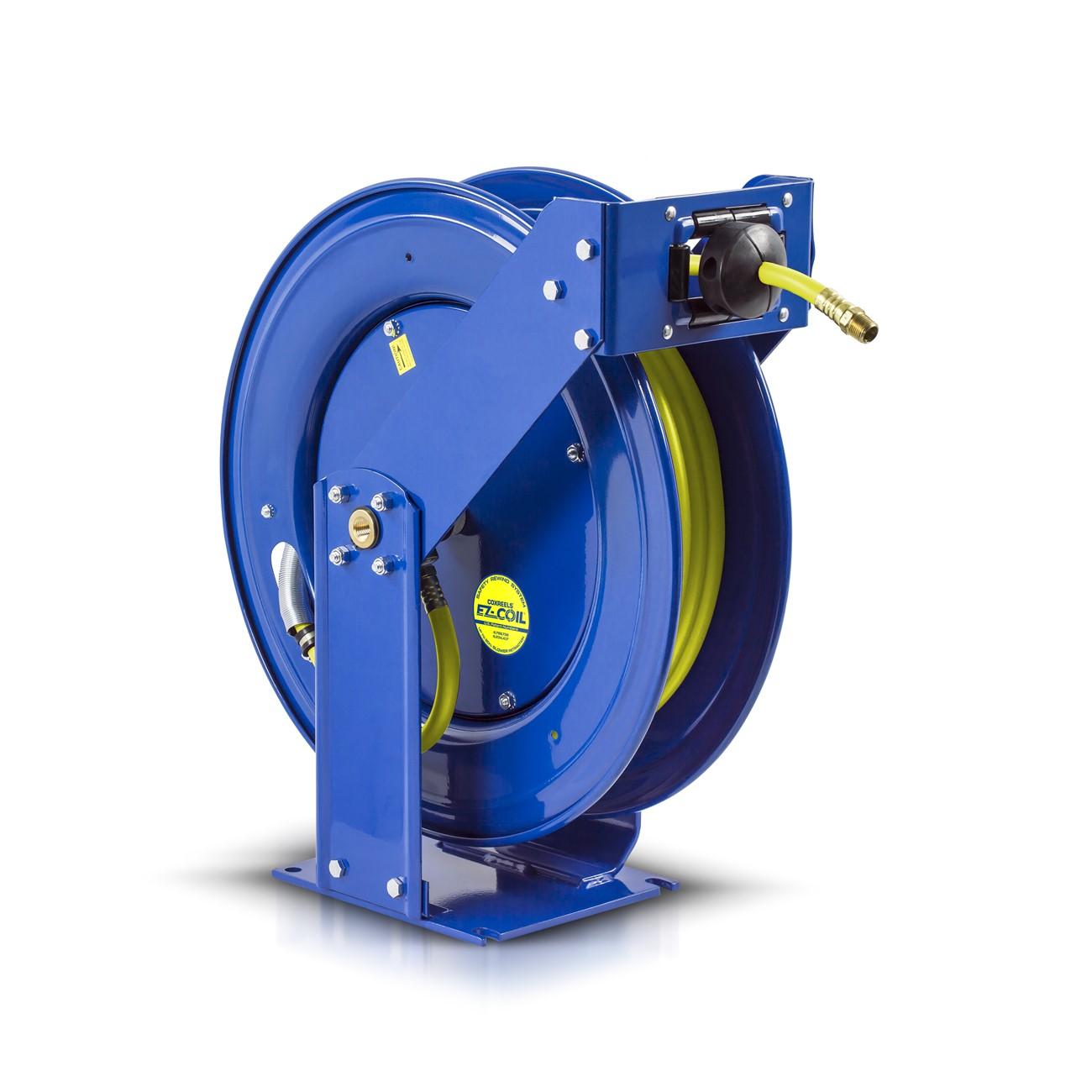

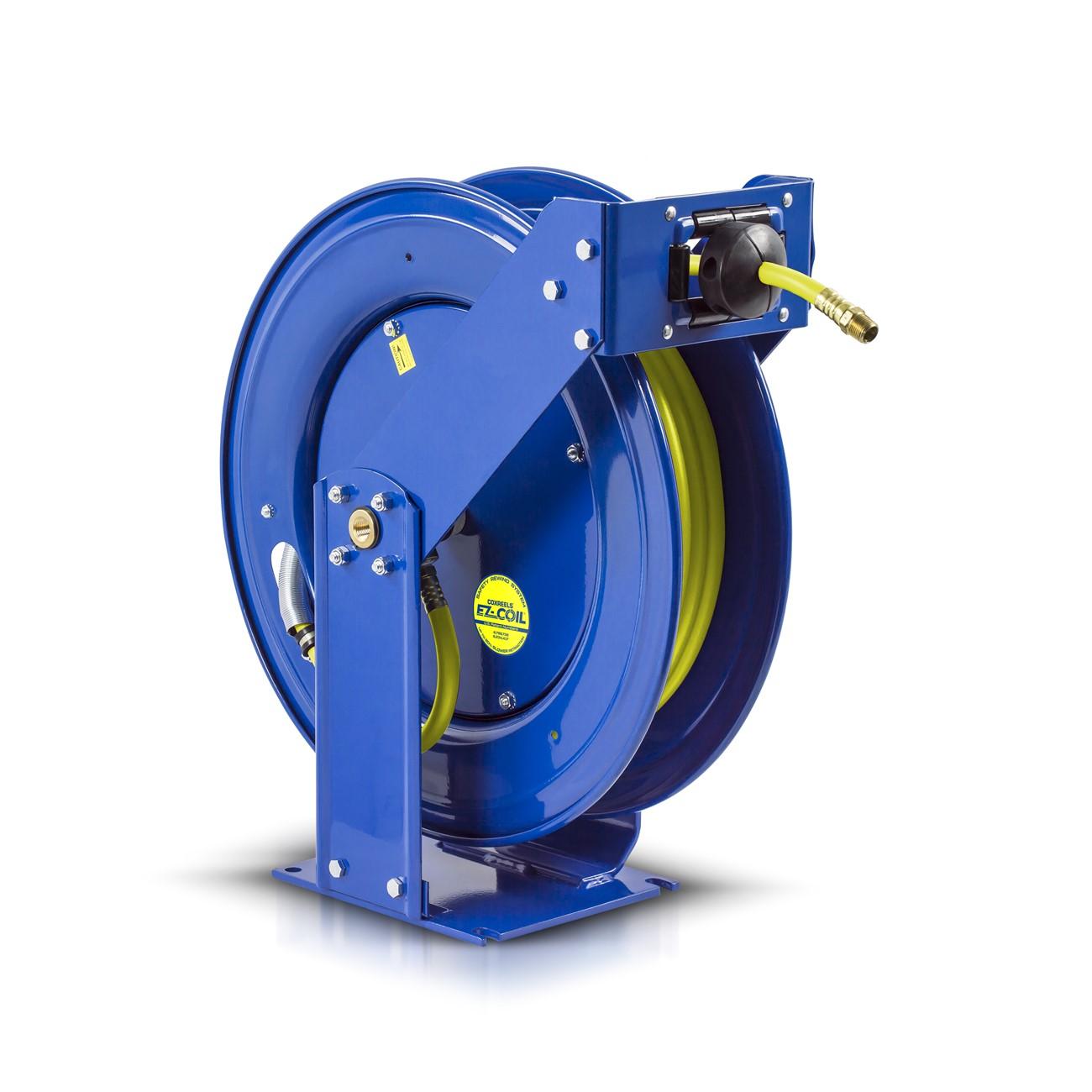

The COXREELS EZ-TSH-450-HV is a high-visibility, spring-driven retractable hose reel designed for trade and industrial environments where hose management and operator safety are critical. Built around Coxreels patented EZ-Coil controlled retraction system, the reel retracts up to 80% slower than conventional spring reels, reducing snap-back hazards on the job. The hose ID is 1/2 inch, and the unit ships assembled on a solid one-piece steel base with a dual pedestal design and no welds at the support post junction. The reel weighs 63 pounds and measures 20.5 inches long, 10.5 inches wide, and 22 inches tall.

This reel is suited for shop floors, service bays, fleet maintenance facilities, and industrial worksites where a high-visibility hose run improves situational awareness and reduces trip hazards. The bright yellow hybrid hose with white glossy stripe is a PVC and rubber blend that combines the lighter weight of PVC with the flexibility and low-temperature performance of rubber. Enhanced kink resistance and reduced coil memory allow the hose to lay flat, further lowering trip hazard potential. The guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service environments.

Key Features

• EZ-Coil controlled retraction retracts up to 80% slower than conventional reels for reduced snap-back risk
• 1/2 inch ID hose passage with machined solid brass 90-degree full-flow NPT swivel for simplified seal maintenance without removing the reel from its mount
• High-visibility hybrid hose in bright yellow with white stripe offers improved kink resistance, reduced coil memory, and a non-marring, low-stick jacket surface
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base with dual pedestal and no-weld support post construction; includes Coxreels exclusive triple-axle super hub bearing support
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style retractable hose reel for shop, fleet maintenance, and industrial service applications requiring a 1/2 inch ID hose path and spring-driven EZ-Coil retraction.

Installation Notes

Installation is typically performed by a qualified technician or maintenance professional. Before mounting, shut off and depressurize any connected fluid or air supply lines. The guide arm supports wall, floor, ceiling, and vehicle mounting positions; confirm that the mounting surface is rated for the combined weight of the reel and maximum hose load. Refer to applicable facility codes and the manufacturers installation documentation for fastener requirements and swivel connection torque guidance.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Weight: 63 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Retraction System: EZ-Coil controlled spring retraction
• Mounting Positions: Wall, floor, ceiling, vehicle
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-450-HV
