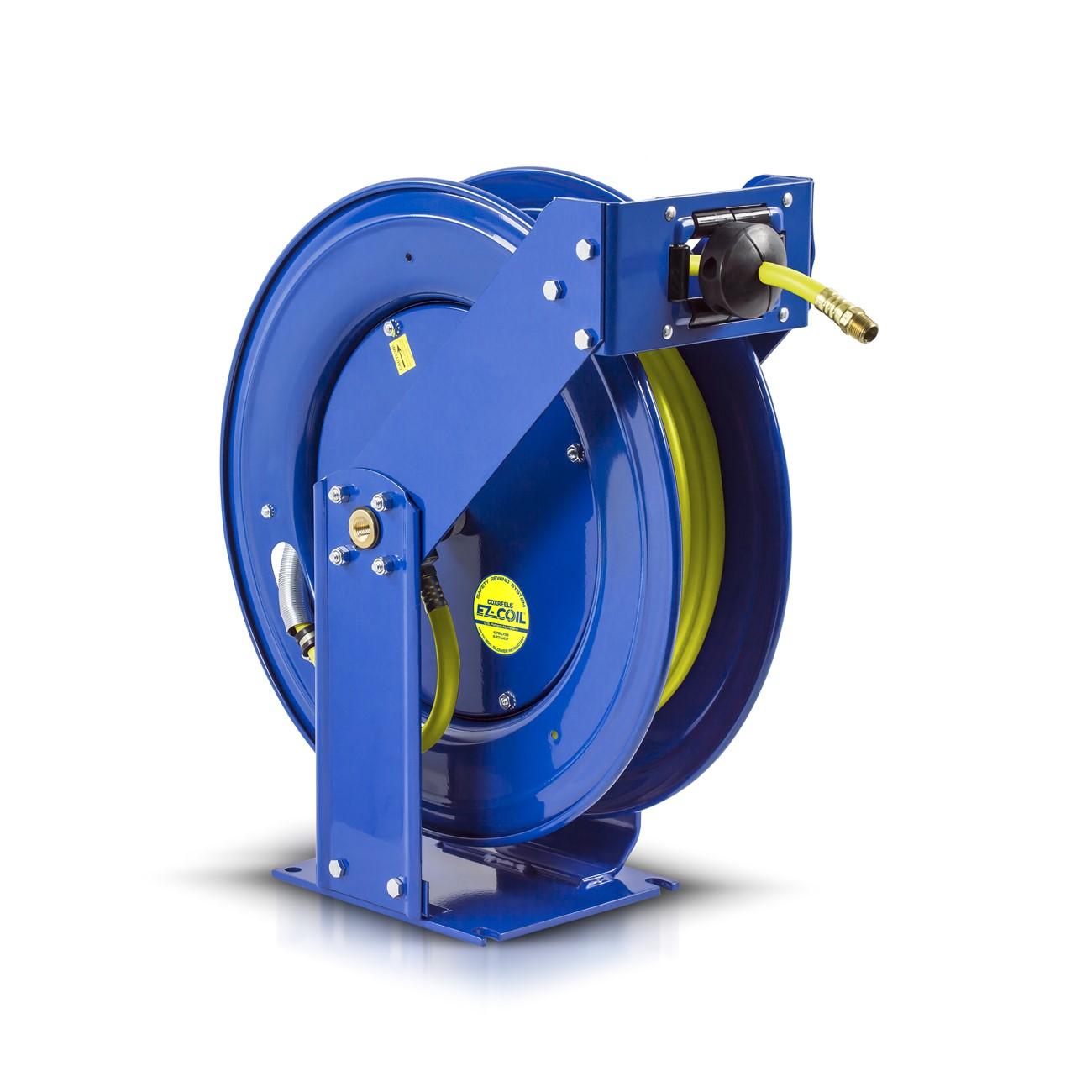

Coxreels EZ-TSH-4100-HV Hv Safety Hose Reel 1/2 Inch Id

Product Description

The COXREELS EZ-TSH-4100-HV is a high visibility, spring-retractable safety hose reel designed for industrial and commercial service environments where hose management and operator safety are critical. Built around the EZ-Coil controlled retraction system, the reel retracts up to 80 percent slower than conventional spring reels, reducing snap-back hazards. The reel accepts 1/2 inch ID hose with a 3/4 inch OD and ships ready for wall, floor, ceiling, or vehicle mounting. At 95 pounds, it is a heavy-duty unit intended for permanent installation by maintenance and facilities technicians.

This reel is suited for industrial facilities, workshops, service bays, and fleet maintenance operations where a high visibility hose is needed to reduce trip hazards and improve awareness in busy work areas. The included hybrid bright yellow hose with white glossy stripe is a PVC and rubber blend that combines the light weight of PVC with the flexibility and low-temperature performance of rubber. Enhanced kink resistance and reduced coil memory allow the hose to lay flat when extended, lowering trip hazard potential. The guide arm adjusts for multiple mounting orientations to fit a wide range of installation layouts.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels for controlled, safe retraction
• High visibility hybrid hose in bright yellow with white stripe improves awareness and lays flat to reduce trip hazards
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• 1/4 inch solid one-piece steel base with dual pedestal design and triple axle super hub support, no weld construction
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style retractable hose reel for permanent industrial and commercial installations requiring a 1/2 inch ID hose path with spring-driven EZ-Coil retraction.

Installation Notes

Installation is typically performed by a qualified maintenance technician or industrial contractor. Shut off and depressurize the supply line fully before mounting the reel or connecting hose fittings. The guide arm supports wall, floor, ceiling, and vehicle mounting configurations — confirm the mounting surface can support the weight of the reel plus hose and fluid load. Follow all applicable facility safety codes and manufacturer mounting instructions when securing the steel base.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 3/4 inch
• Retraction Type: EZ-Coil spring-driven controlled retraction
• Swivel: Machined solid brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun and ribbed with rolled edges
• Base Material: 1/4 inch solid steel, no-weld dual pedestal
• Finish: CPC chip-resistant rust-inhibiting powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 95 pounds
• UPC: 674255752801

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-4100-HV
