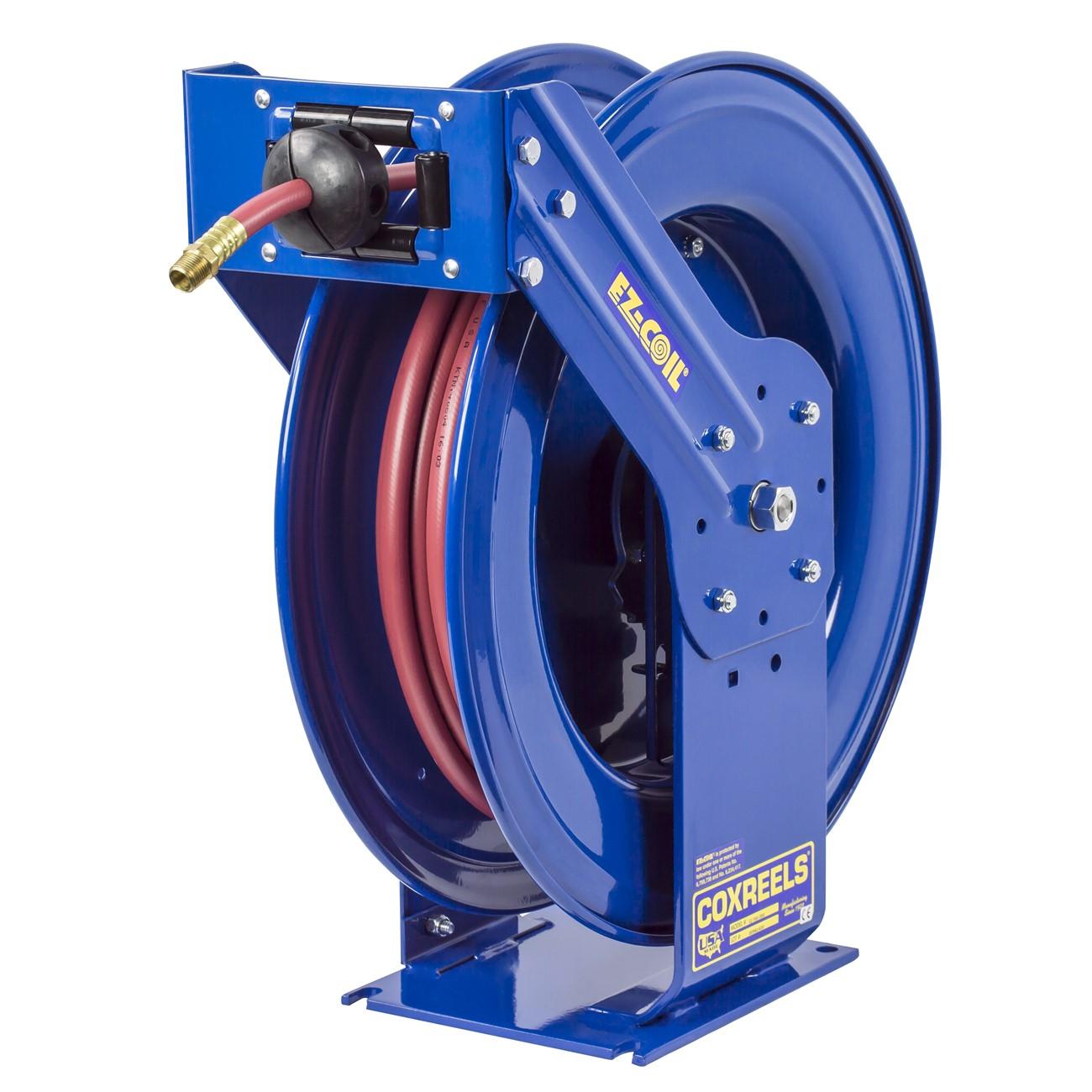

Coxreels EZ-TSH-375 Spring Driven Hose Reel 3/8 in 75 Ft

Product Description

The COXREELS EZ-TSH-375 is a spring-driven hose reel built for truck-mount and off-road service applications where conventional reels fail. Part of the COXREELS T Series line, this reel features an extra-large chassis with dual pedestal-style arms and the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under punishing field conditions. It accommodates 3/8 inch ID, 5/8 inch OD hose up to 75 feet in length. The EZ-Coil enclosed cartridge motor retracts hose up to 80 percent slower than standard spring-driven reels, reducing snap-back risk for the technician. Licensed plumbers, fleet mechanics, and field service pros working in demanding mobile environments rely on this reel for consistent, controlled hose retrieval.

The EZ-TSH-375 is designed for truck-mounted and vehicle-based installations in off-road and high-vibration environments. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across service truck layouts and shop setups alike. The solid one-piece steel base with no-weld construction supports stable mounting under load. This reel is well-suited for fluid transfer, air, and similar service lines where durability and recoil control are critical priorities.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional spring-driven reels, reducing snap-back hazard
• Super Hub triple axle support reduces vibration and strengthens reel integrity in off-road and mobile applications
• Solid brass machined 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• 1/4 inch solid steel one-piece base with dual pedestal design and no-weld construction for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or upgrade reel for truck-mount spring-driven hose reel applications requiring 3/8 inch ID hose connections up to 75 feet.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted fluid or air system equipment. Depressurize and disconnect the supply line completely before mounting or servicing the reel. Secure the base to the mounting surface using fasteners rated for the load and vibration demands of the application. Consult applicable fleet or facility maintenance codes when integrating into mobile service units.

Technical Specifications

• Hose Inner Diameter: 3/8 inch
• Hose Outer Diameter: 5/8 inch
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Mount Type: Truck mount, multi-position
• Base Material: Steel, 1/4 inch one-piece no-weld construction
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 82 pounds
• UPC: 674255723016

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-375
