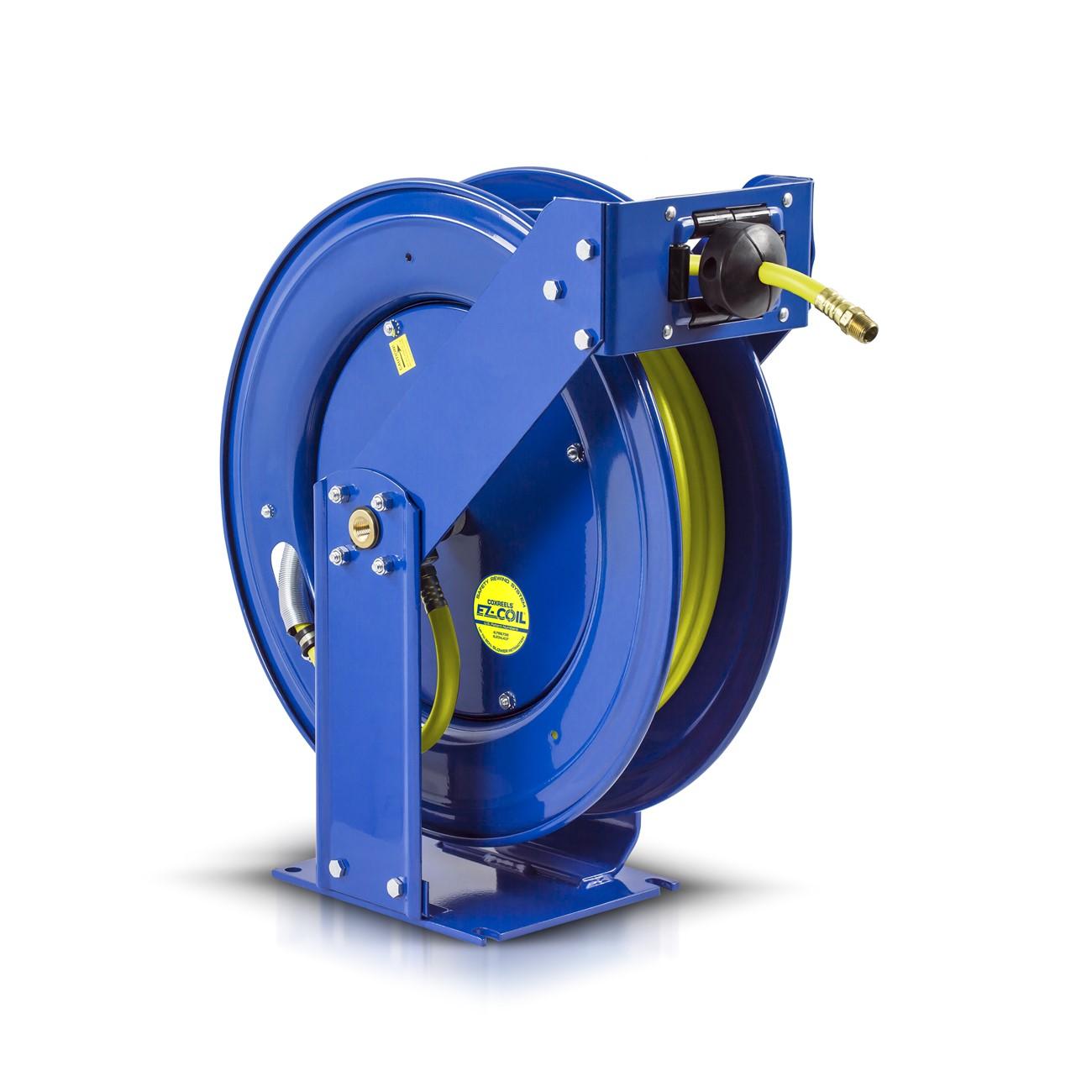

Coxreels EZ-TSH-375-HV Hv Safety Hose Reel 3/8 Inch Steel

Product Description

The COXREELS EZ-TSH-375-HV is a high visibility safety hose reel built for trade and industrial environments where hose control and worker safety are both priorities. The reel features a bright yellow hybrid hose with a white glossy stripe, making it easy to spot in busy workspaces. EZ-Coil controlled retraction slows the return speed up to 80 percent compared to conventional spring-return reels, reducing snap-back hazards. The unit is constructed with a heavy-duty steel base and CNC robotically spun ribbed discs with rolled edges. Licensed contractors and service technicians in industrial, fleet, and facility maintenance settings are the primary installers.

This reel is suited for wall, floor, ceiling, and vehicle mounting applications. The adjustable guide arm accommodates a wide range of installation configurations, making it practical for service bays, maintenance shops, and mobile service vehicles. The 3/8 inch ID hose path is appropriate for compressed air and fluid delivery in demanding service environments. The hybrid PVC and rubber hose construction delivers improved flexibility and low-temperature performance while resisting kinking and reducing coil memory, which helps keep the hose laying flat and minimizes trip hazard potential.

Key Features

• EZ-Coil cartridge-style spring motor retracts up to 80 percent slower than conventional reels for controlled, safe retraction
• High visibility hybrid hose in bright yellow with white glossy stripe for increased jobsite awareness
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Solid one-piece steel base with dual pedestal design and triple axle super hub support, no-weld construction
• CPC powder coat finish resists chipping, rust, and corrosion; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style hose reel for compressed air and fluid service applications requiring controlled spring retraction and high-visibility hose identification in industrial, fleet, and facility maintenance environments.

Installation Notes

Installation is typically performed by licensed millwrights, facility maintenance technicians, or fleet service professionals. Shut off all air or fluid supply and depressurize the hose and reel fully before mounting or performing any maintenance. The guide arm supports wall, floor, ceiling, and vehicle mounting configurations — verify that the mounting surface is rated for the combined weight of the reel, hose, and fluid load. Follow applicable OSHA and facility safety standards when working at height or in confined service areas.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Base Material: Steel
• Swivel Material: Solid Brass
• Swivel Type: 90-degree full-flow NPT
• Retraction System: EZ-Coil enclosed cartridge spring motor
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 82 pounds
• UPC: 674255752764

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-375-HV
