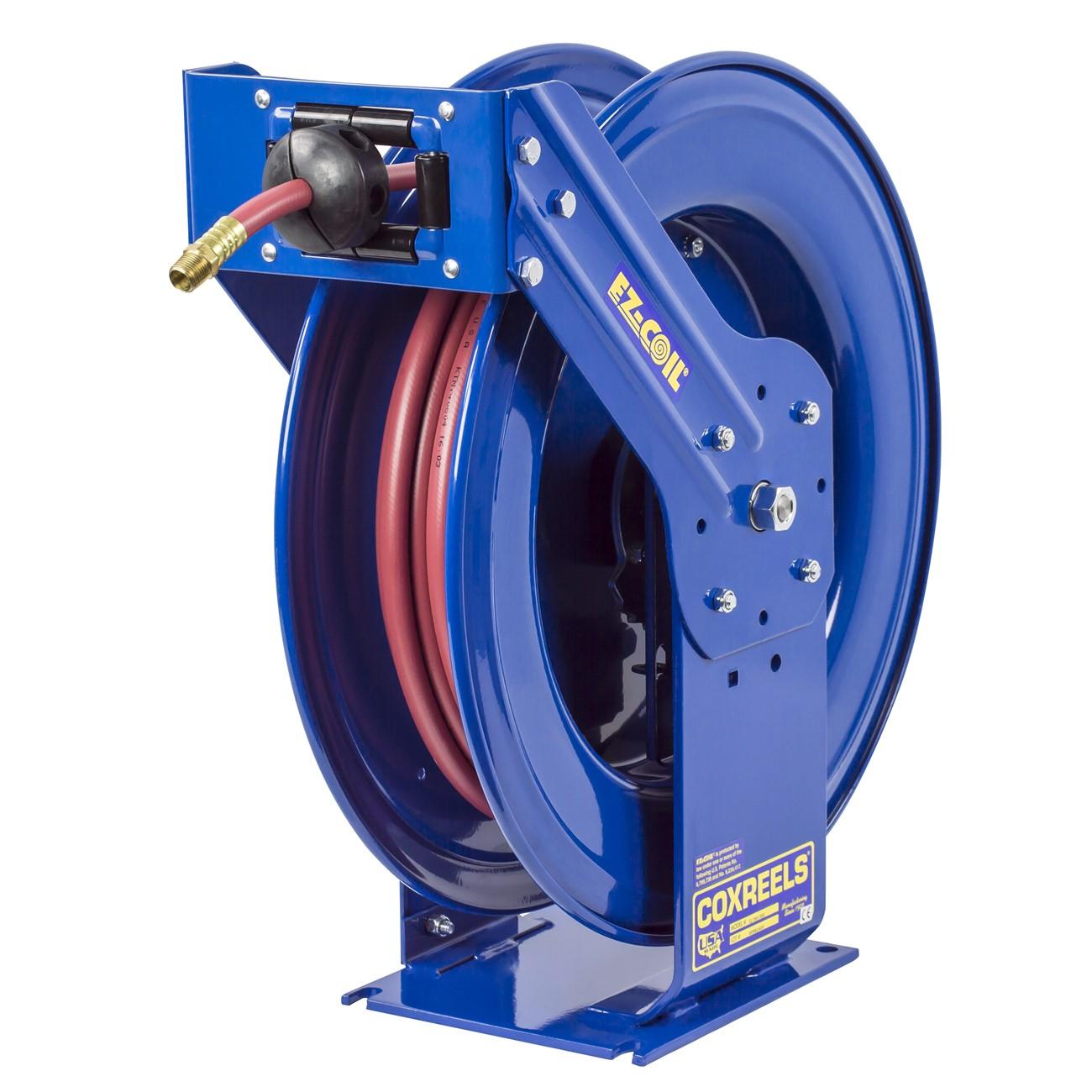

Coxreels EZ-TSH-350 Spring Driven Hose Reel 3/8 Inch 50 Ft

Product Description

The COXREELS EZ-TSH-350 is a spring-driven hose reel from the T Series line, built for truck-mount and off-road service applications. It accepts 3/8 inch ID hose up to 50 feet in length. The reel features an extra-large chassis with dual pedestal-style arms and the Coxreels Super Hub, which provides triple axle support, reduces vibration, and strengthens the overall frame. The EZ-Coil spring motor uses a lubricated, enclosed cartridge design that retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk. Licensed trades and fleet service technicians working in demanding field environments are the primary installers.

This reel is designed for heavy-duty service in off-road and truck-mount scenarios where mechanical abuse, vibration, and exposure are constant factors. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting, making it adaptable to service trucks, utility rigs, and similar mobile platforms. The 3/8 inch ID capacity suits air, water, and compatible fluid delivery lines commonly used in mobile maintenance operations. The robust structural design makes it well suited for construction, mining, and agricultural service environments.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for added operator safety
• Triple axle support via Coxreels Super Hub reduces vibration and strengthens structural integrity
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve durability
• Dual pedestal, one-piece steel base with no-weld construction for maximum stability
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in outdoor and mobile environments
• Multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting

Compatibility

Designed as an OEM-style replacement or direct-fit reel for truck-mount and off-road service applications requiring a 3/8 inch ID spring-driven hose reel.

Installation Notes

Installation is typically performed by licensed mechanics or fleet service technicians mounting the reel to a service vehicle or fixed structure. Before servicing or replacing the reel, depressurize the hose line and relieve any stored spring tension per the manufacturer procedure. Secure all mounting fasteners to the vehicle frame or mounting surface before connecting the supply line. Consult applicable federal and state DOT guidelines when mounting equipment to work vehicles.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Hose Length: 50 feet
• Drive Type: Spring driven
• Mount Type: Truck mount, multi-position
• Swivel Material: Solid brass
• Base Material: Steel
• Finish: CPC powder coat
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• UPC: 674255733312

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-350
