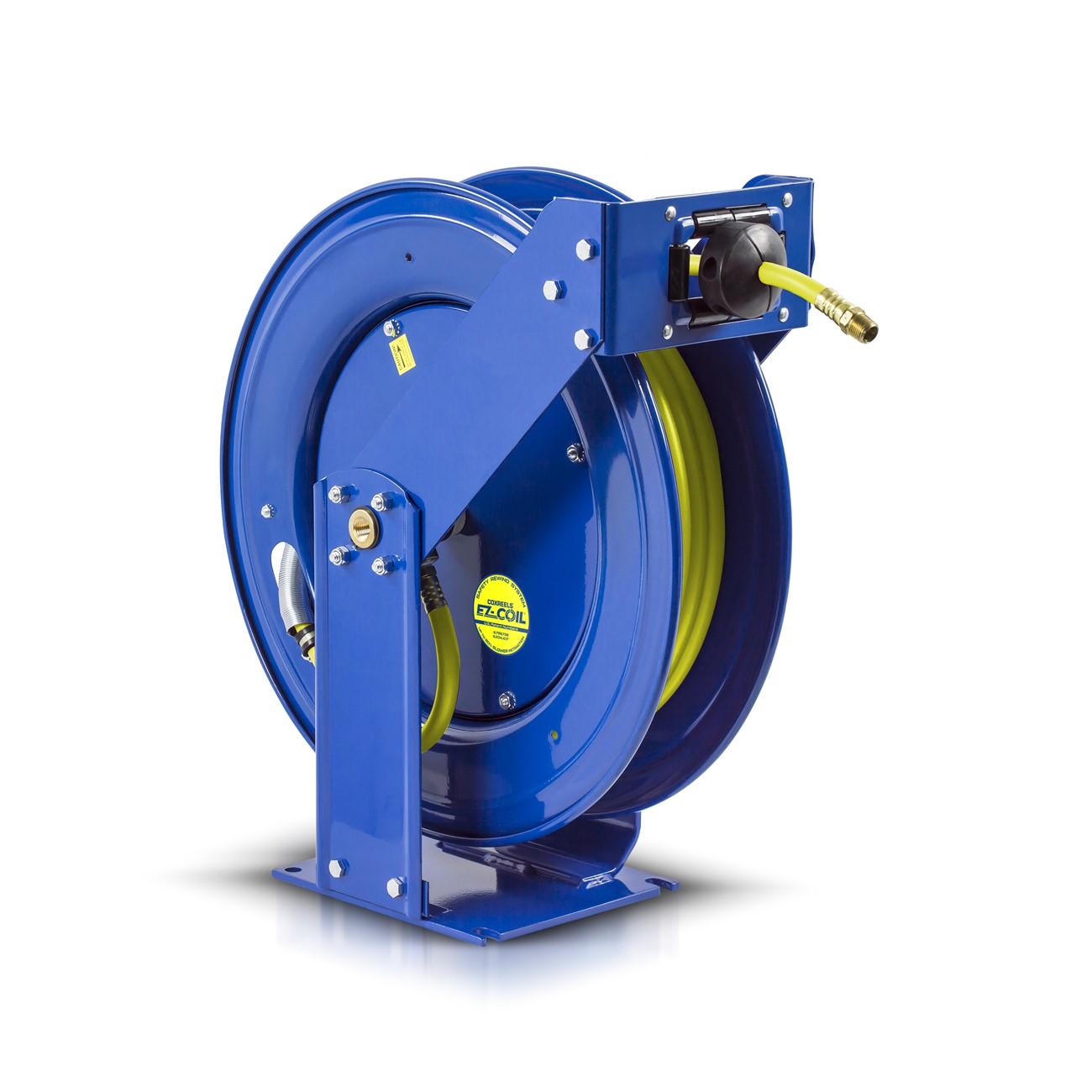

Coxreels EZ-TSH-350-HV Safety Hose Reel 3/8 in Steel

Product Description

The COXREELS EZ-TSH-350-HV is a high-visibility safety hose reel built for trade and industrial environments where hose management and operator safety are priorities. Designed around a 3/8-inch ID, 5/8-inch OD hose path and a solid one-piece steel base, this reel integrates the patented EZ-Coil controlled retraction system, which slows retraction speed by up to 80 percent compared to conventional spring-driven reels. The assembly weighs 61 pounds and measures 20.5 inches long by 10.5 inches wide by 22 inches tall. It is intended for installation by qualified trades in shops, service bays, fleet maintenance facilities, and similar industrial settings.

The EZ-TSH-350-HV is suited for applications where a visible, controlled-retraction hose reel reduces trip hazards and improves worksite safety. The hybrid bright yellow hose with a white glossy stripe increases visibility on busy shop floors. The guide arm is adjustable to wall, floor, ceiling, and vehicle mounting positions, making this reel adaptable across a wide range of service configurations. It is sold as a single unit and ships complete with the EZ-Coil motor cartridge installed.

Key Features

• EZ-Coil enclosed cartridge-style motor retracts up to 80 percent slower than conventional reels for controlled, safer hose retrieval
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for strength, durability, and operator safety
• Solid one-piece 1/4-inch steel base with dual pedestal design and triple axle super hub support — no welds
• Hybrid PVC and rubber blend high-visibility yellow hose with enhanced kink resistance, reduced coil memory, and improved low-temperature flexibility
• CPC powder coat finish resists chips and rust; adjustable rubber hose stop and permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement or direct-install safety hose reel for industrial and trade service environments requiring 3/8-inch ID hose path with controlled spring retraction.

Installation Notes

Installation is typically performed by a qualified mechanic or industrial maintenance technician. Before mounting, ensure the mounting surface — wall, floor, ceiling, or vehicle — can support the combined weight of the reel and hose under dynamic retraction loads. Disconnect and depressurize any air or fluid supply lines before connecting or servicing the swivel and hose fittings. Follow applicable facility safety codes and manufacturer torque guidance when securing the mounting hardware.

Technical Specifications

• Hose ID: 3/8 inches
• Hose OD: 5/8 inches
• Base Material: Steel
• Swivel Material: Solid brass
• Retraction System: EZ-Coil enclosed cartridge, up to 80 percent slower retraction
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 61 pounds
• Finish: CPC powder coat, chip and rust resistant
• Unit of Measure: Each
• UPC: 674255752757

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-350-HV
