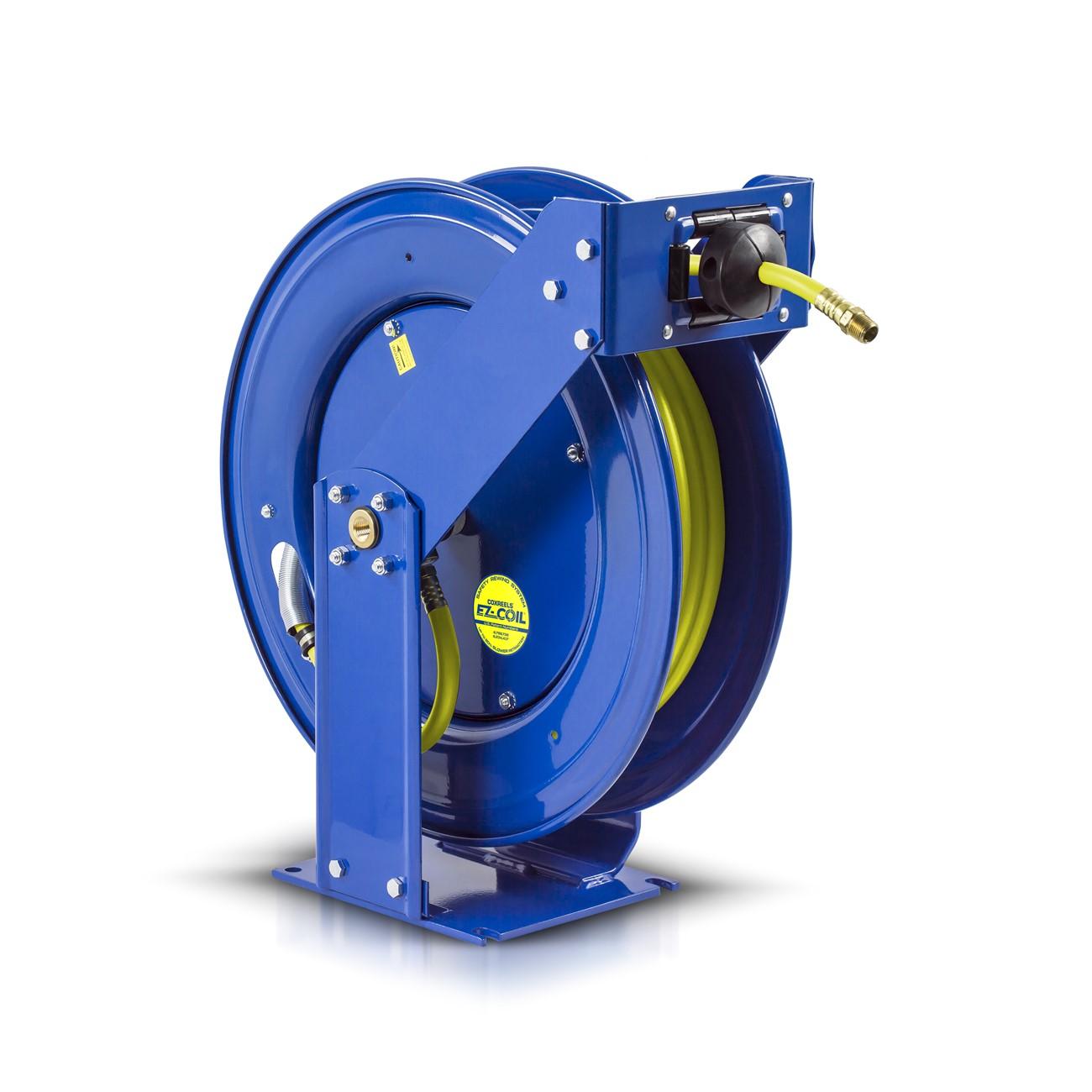

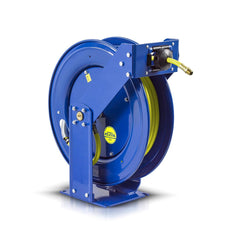

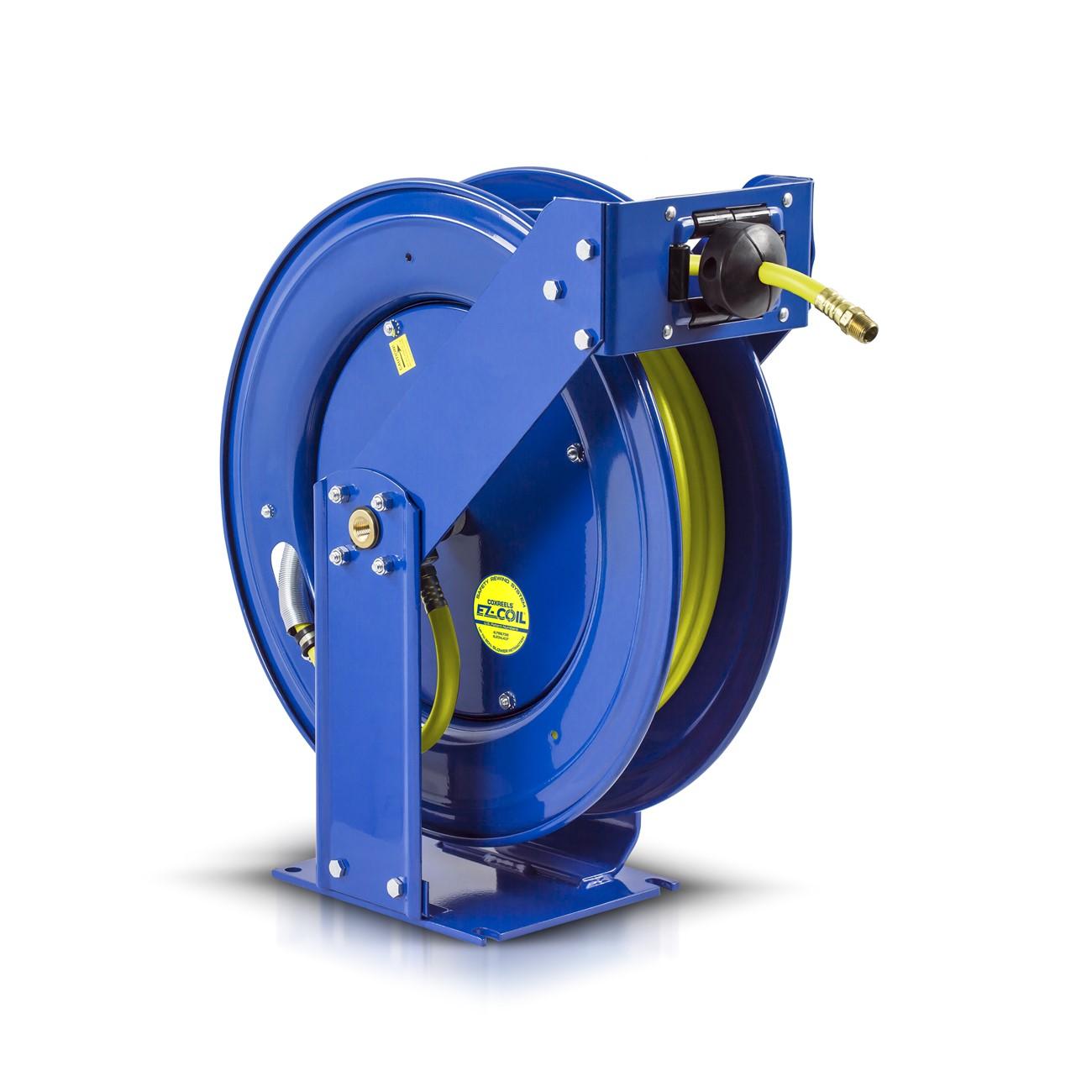

Coxreels EZ-TSH-3100-HV Hv Safety Hose Reel 3/8 in

Product Description

The COXREELS EZ-TSH-3100-HV is a high-visibility, spring-retractable safety hose reel designed for demanding shop, fleet, and industrial service environments. It features a bright yellow hybrid hose with a white gloss stripe for enhanced awareness and trip-hazard reduction. The EZ-Coil enclosed cartridge motor retracts the hose up to 80 percent slower than conventional spring reels, reducing snap-back risk for the technician. The reel accepts 3/8-inch inside diameter hose and is built for daily use by HVAC technicians, automotive service pros, and industrial maintenance crews who need a reliable, controlled retraction system at a fixed workstation or vehicle mount.

The EZ-TSH-3100-HV suits both shop and field installations. Its adjustable guide arm accommodates wall, floor, ceiling, and vehicle mounting positions, making it a practical fit for service bays, fleet maintenance facilities, and mobile service units. The 3/8-inch ID, 5/8-inch OD hose configuration is common in compressed air and fluid transfer applications. The HV hose series is particularly well-suited for busy shop floors where hose visibility reduces trip and snag incidents.

Key Features

• EZ-Coil cartridge motor retracts hose up to 80 percent slower than standard reels for controlled, safe retraction
• High-visibility hybrid hose: bright yellow with white gloss stripe, PVC-rubber blend combining flexibility, kink resistance, and reduced coil memory
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed steel discs with rolled edges for structural strength and hose protection
• 1/4-inch solid one-piece steel base with dual pedestal design and Coxreels triple-axle super-hub support — no welds
• CPC powder-coat finish, adjustable solid rubber hose stop, permanently lubricated precision bearings, and multi-position guide arm

Compatibility

Designed as an OEM-style retractable hose reel for 3/8-inch ID hose service in compressed air and compatible fluid-transfer applications requiring a spring-retractable, high-visibility reel.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air or fluid-system plumbing. Shut off and depressurize the supply line completely before connecting or servicing the reel. The guide arm can be configured for wall, floor, ceiling, or vehicle mounting — verify fastener load ratings for the mounting surface prior to installation. Refer to applicable OSHA and facility safety standards for hose reel placement in occupied work areas.

Technical Specifications

• Hose Inside Diameter: 3/8 inches
• Hose Outside Diameter: 5/8 inches
• Retraction Type: EZ-Coil spring-driven, controlled retraction
• Swivel: Machined solid brass 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Material: 1/4-inch solid steel, dual pedestal, no-weld construction
• Finish: CPC chip-resistant, rust-inhibiting powder coat
• Hose Type: Hybrid PVC-rubber blend, high-visibility yellow with white stripe
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 85 pounds
• UPC: 674255752771

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TSH-3100-HV
