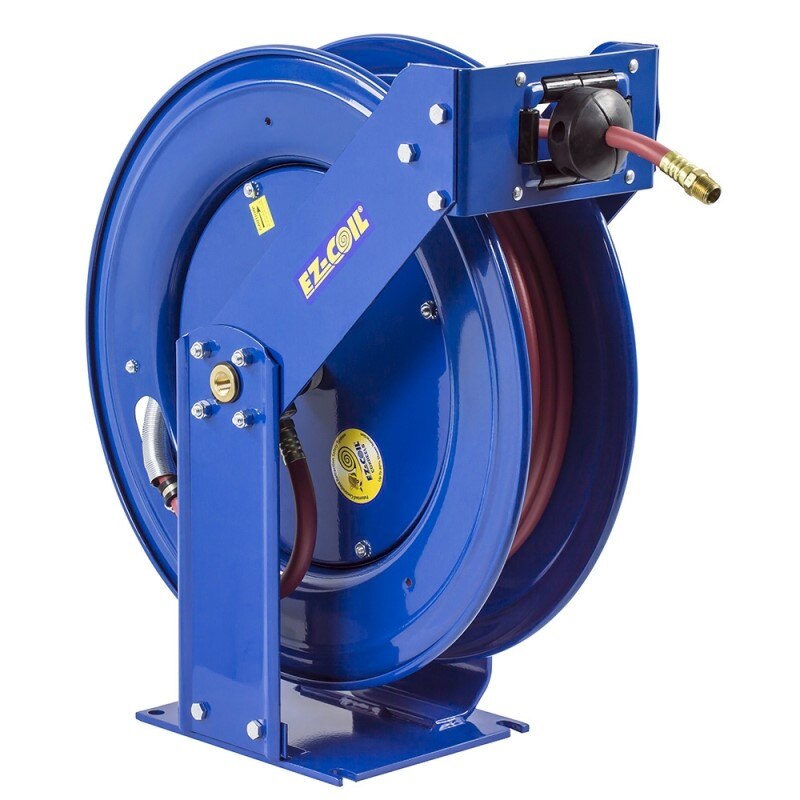

Coxreels EZ-TMPL-550 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS EZ-TMPL-550 is a spring-driven, truck-mount hose reel built for demanding off-road and fleet service applications. Part of the EZ-T Series, it features an extra-large chassis with dual pedestal-style arms and a Super Hub triple axle support system that reduces vibration and reinforces structural integrity under heavy use. The reel is equipped with the EZ-Coil patented retraction system, which slows rewind speed by up to 80 percent compared to conventional reels, reducing hose wear and operator risk. At 74 pounds, this is a heavy-duty unit intended for professional installation by fleet mechanics, HVAC service techs, or industrial maintenance crews.

The EZ-TMPL-550 is designed for truck-mounted service rigs and other vehicles operating in abusive environments where vibration, impact, and constant cycling are routine. The 3/4 inch inner diameter hose path and 1-1/16 inch outer diameter accommodate standard service hoses up to 50 feet in length. The multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of service truck layouts and facility installations.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for safer, controlled rewind
• Super Hub triple axle support reduces vibration and strengthens reel integrity in off-road conditions
• Dual pedestal design with solid one-piece steel base and support post — no weld construction for maximum stability
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish resists chips and rust for long service life in outdoor and mobile environments

Compatibility

Designed as an OEM-style replacement and direct-fit unit within the COXREELS EZ-T Series for truck-mounted and off-road service vehicle hose reel applications accepting a 3/4 inch ID, 50-foot hose configuration.

Installation Notes

Installation is typically performed by a qualified fleet mechanic or industrial maintenance technician. Depressurize and drain the supply line completely before mounting or connecting the reel. Secure the steel base to a structurally rated surface using fasteners appropriate for the mount material and load rating. Verify NPT thread connections are sealed with appropriate thread sealant and pressure-tested before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 3/4 inch
• Hose Outer Diameter: 1-1/16 inch
• Hose Length Capacity: 50 feet
• Retraction Type: Spring driven, EZ-Coil enclosed cartridge motor
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Base Material: One-piece steel, no-weld dual pedestal
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 74 pounds
• UPC: 674255724396

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMPL-550
