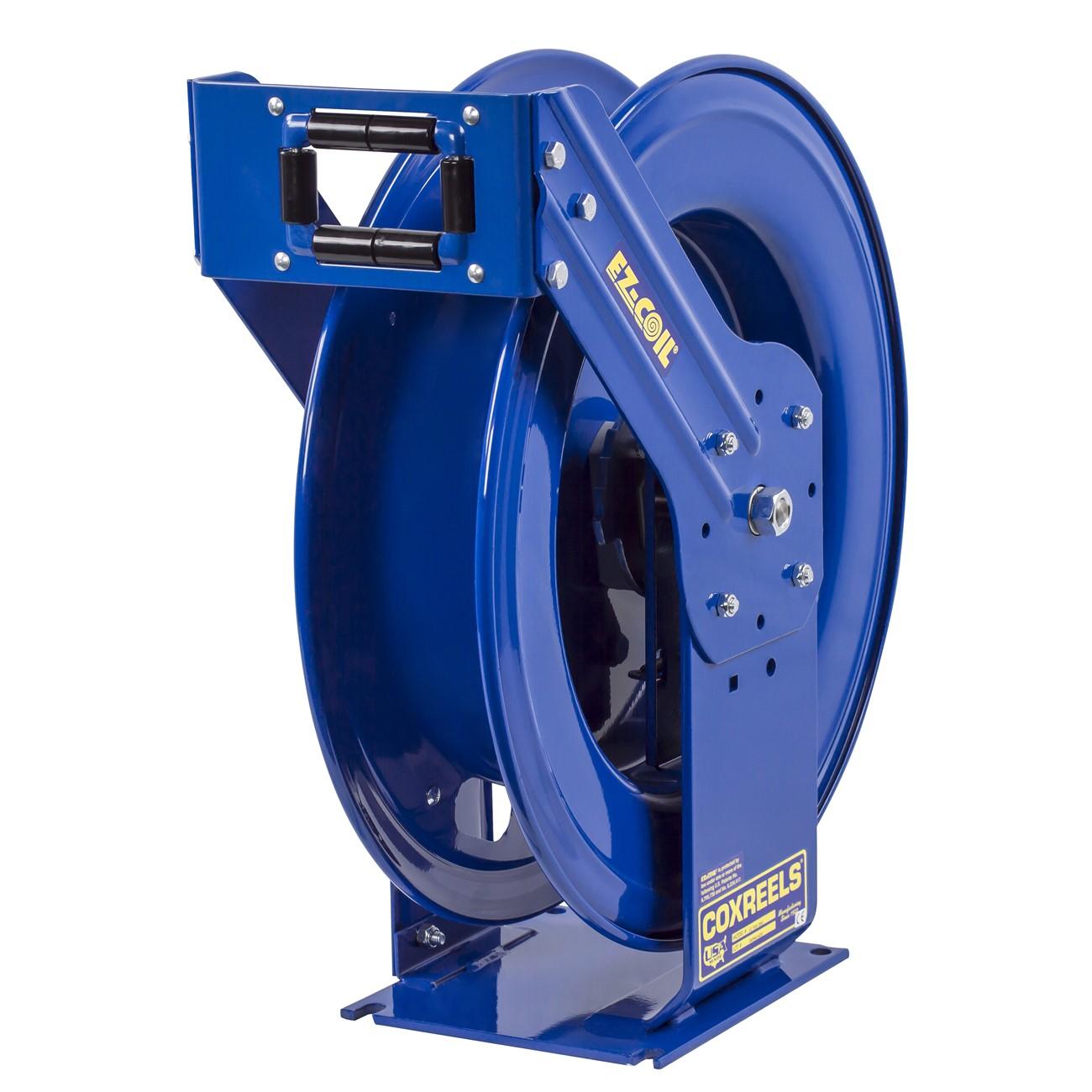

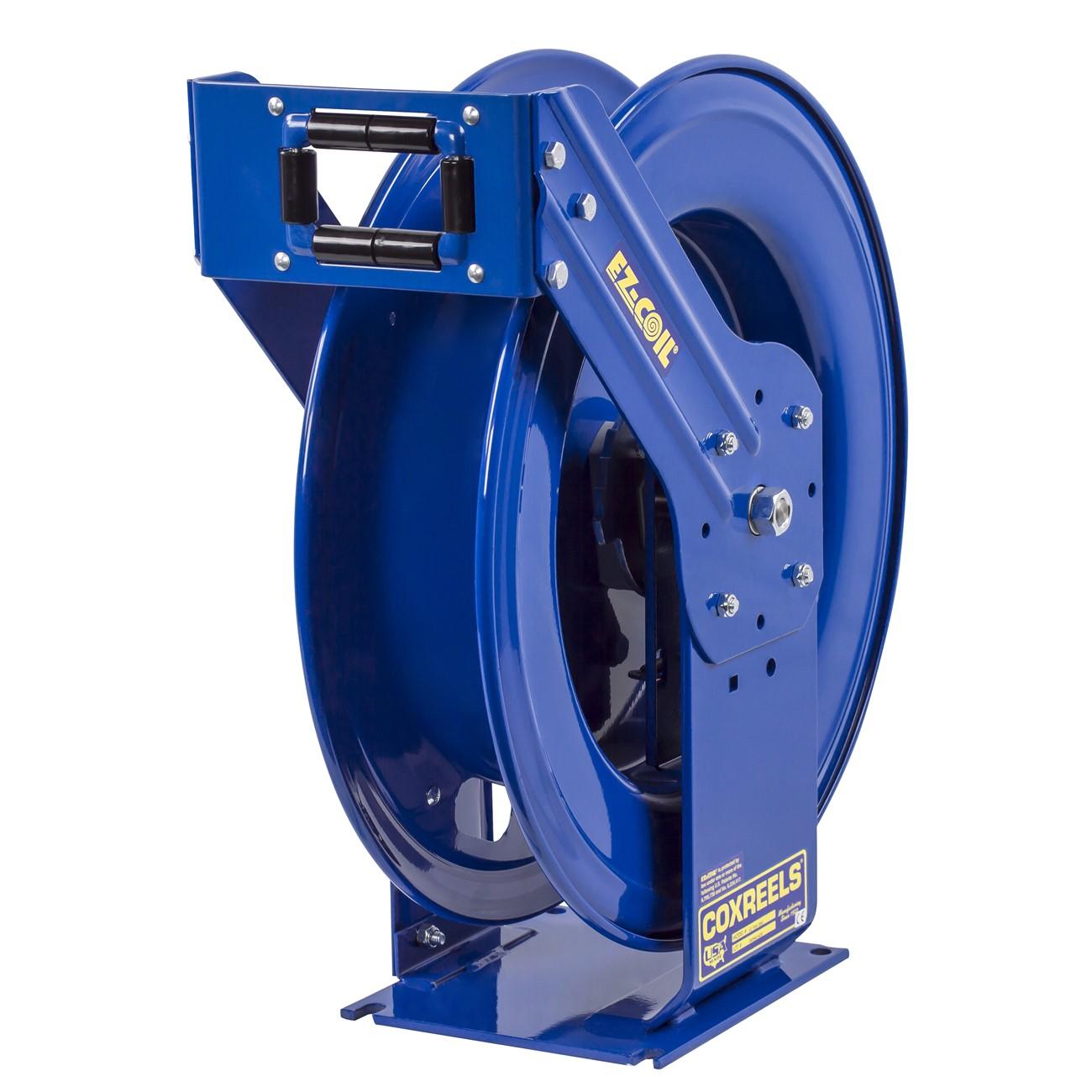

Coxreels EZ-TMPL-450 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS EZ-TMPL-450 is a spring-driven, truck-mount hose reel built for demanding off-road and field service applications. Part of the COXREELS EZ-T Series, it features an extra-large chassis with dual pedestal-style arms and the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under heavy use. The reel accepts hose with a 1/2 inch ID and 13/16 inch OD up to 50 feet in length. At 64 pounds, it is a rugged, heavy-duty unit intended for installation by trained service technicians who operate in abusive, high-demand environments where standard spring-driven reels fall short.

The EZ-TMPL-450 is suited for truck-mounted service rigs, fleet maintenance vehicles, and off-road service equipment where reliable hose retraction and structural durability are critical. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of vehicle types and install scenarios. It is a practical choice for mobile lube, hydraulic service, compressed air, and similar trade applications requiring a spring-driven retraction reel mounted to a vehicle platform.

Key Features

• EZ-Coil spring motor: enclosed, lubricated cartridge design retracts up to 80 percent slower than conventional reels for controlled, safe hose retraction
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for added strength, hose protection, and operator safety
• Dual pedestal, one-piece steel base with no-weld construction and Super Hub triple axle support for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, or vehicle mounting
• CPC powder coat finish resists chips and rust; permanently lubricated precision bearings for long service life

Compatibility

Designed to accept hose with a 1/2 inch ID and 13/16 inch OD up to 50 feet in length; intended for truck-mount and off-road service vehicle installations where a spring-driven EZ-T Series reel is specified.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mounted equipment and the applicable torque and fastener requirements for the mounting surface. Relieve all system pressure and disconnect the hose from any pressurized source before servicing or mounting the reel. The multi-position guide arm must be secured in the correct orientation for the chosen mounting configuration before placing the reel into service. Verify that all swivel and inlet connections are properly tightened and leak-free before resuming operation.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Length Capacity: 50 feet
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 64 pounds
• Drive Type: Spring driven
• Mount Type: Truck mount
• Swivel Material: Solid brass
• Base Construction: One-piece steel, no-weld dual pedestal
• Finish: CPC powder coat
• UPC: 674255724389

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMPL-450
