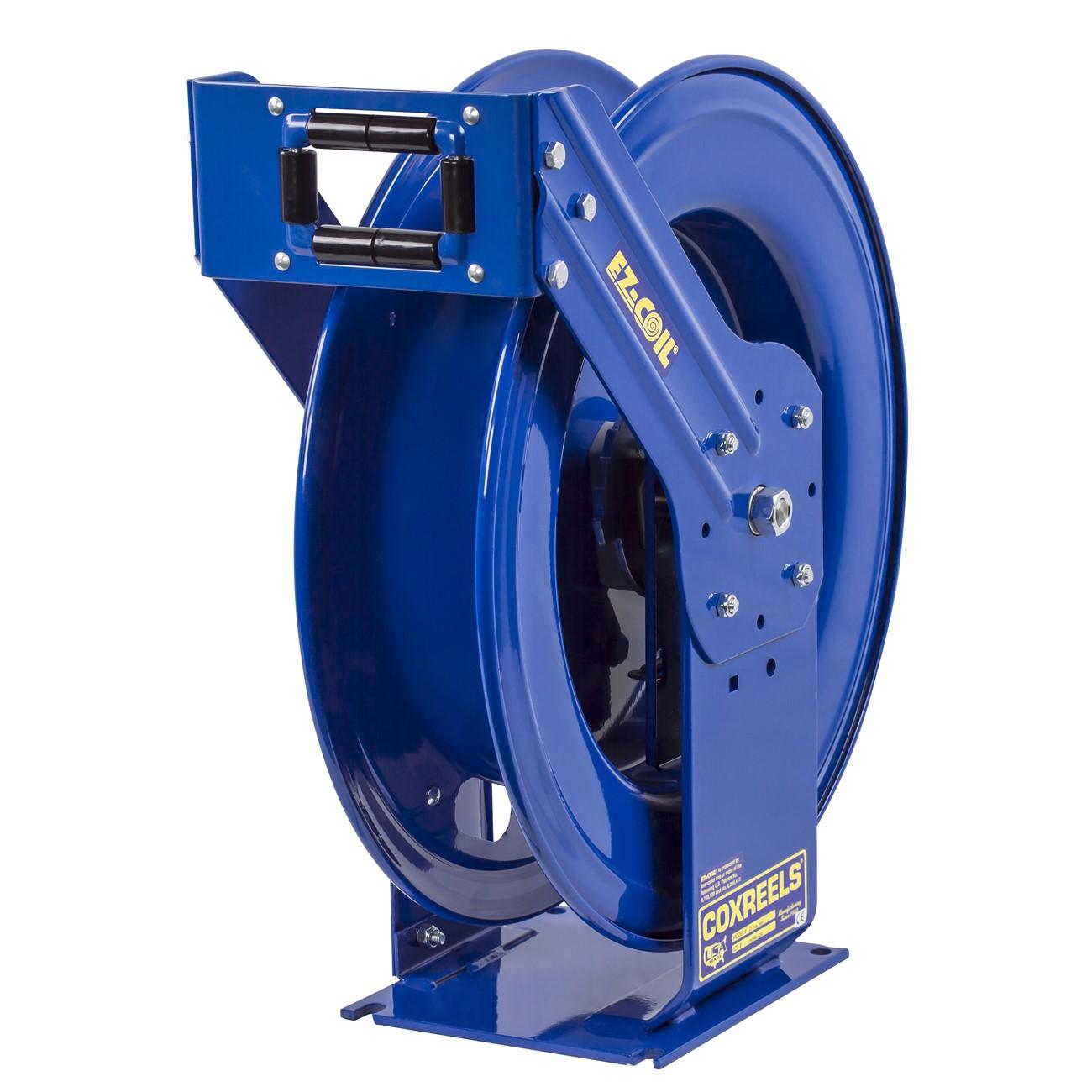

Coxreels EZ-TMPL-375 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS EZ-TMPL-375 is a spring-driven, truck-mount hose reel built for heavy-duty field use. Part of the EZ-T Series, it features a 3/8 inch ID bore, accommodates up to 75 feet of hose, and is engineered around an extra-large chassis with dual pedestal-style arms. The integrated Super Hub provides triple axle support, which reduces vibration and reinforces structural integrity under load. A licensed HVAC tech, plumber, or service contractor running hose from a service vehicle will find this reel suited for high-cycle, off-road, and abusive-environment applications.

The EZ-TMPL-375 is designed for truck and vehicle-mounted installations where spring-driven retraction, quick access, and reliable performance in rough conditions are required. The multi-position guide arm adjusts to accommodate wall, floor, ceiling, and vehicle mounting configurations. This reel is appropriate for fluid service applications in commercial and industrial settings where a durable, field-serviceable reel is a daily-use tool.

Key Features

• EZ-Coil spring system retracts up to 80 percent slower than conventional spring reels, reducing snap-back hazards
• Enclosed, lubricated cartridge-style motor is removable for maintenance without special tooling
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance and hose installation without dismounting the reel
• CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Dual pedestal, one-piece steel base with no-weld construction and 1/4 inch steel thickness for maximum stability
• CPC powder coat finish resists chipping and rust for extended service life

Compatibility

Designed as an OEM-style truck-mount spring-driven hose reel for 3/8 inch ID hose up to 75 feet in length, suitable for vehicle-based fluid service applications.

Installation Notes

Installation should be performed by a qualified mechanic or service technician familiar with vehicle-mount hose reel systems. Depressurize and disconnect the fluid supply line completely before mounting or servicing the reel. Secure the base to the mounting surface using hardware rated for the combined weight of the reel and loaded hose. Verify the guide arm position and swivel orientation before pressurizing the system for the first time.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Capacity: 75 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 80 pounds
• Base Material: Steel
• Finish: CPC powder coat
• Swivel Material: Solid brass
• UOM: Each

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMPL-375
