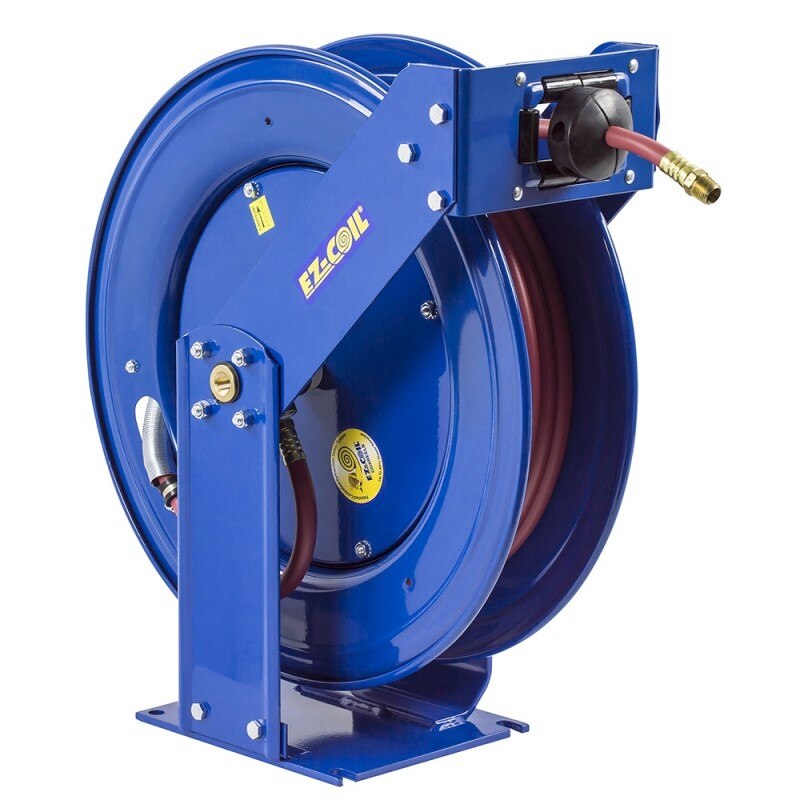

Coxreels EZ-TMPL-350 Spring Driven Hose Reel 50 Ft

Product Description

The COXREELS EZ-TMPL-350 is a spring-driven hose reel built for truck-mount and off-road service applications. It accepts hose with a 3/8-inch inner diameter and 11/16-inch outer diameter, handling up to 50 feet of hose. The reel is engineered around an extra-large chassis with dual pedestal-style arms and a Super Hub triple-axle support system that reduces vibration and reinforces structural integrity. The EZ-Coil retraction motor slows rewind speed by up to 80 percent compared to conventional spring reels, reducing snap-back risk during daily use. Licensed trade professionals and fleet service technicians are the primary installers.

The EZ-TMPL-350 is designed for demanding truck-mount installations where road vibration, rough terrain, and continuous use are routine. It suits mobile lube trucks, service rigs, and fleet maintenance vehicles that require a reliable retractable hose solution. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of service body layouts. The enclosed cartridge-style spring motor can be removed without taking the reel off its mount, reducing downtime during scheduled maintenance.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than standard reels for safer operation
• Super Hub triple-axle support reduces vibration and strengthens chassis integrity on off-road applications
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Solid one-piece steel base with dual pedestal design and no-weld support post for maximum stability
• CPC powder coat finish provides chip resistance and rust inhibition for long service life in outdoor and mobile environments

Compatibility

Designed as an OEM-style truck-mount replacement or new-installation spring-driven hose reel for 3/8-inch ID hose lines in mobile service and off-road fleet applications.

Installation Notes

Installation is typically performed by qualified fleet mechanics or service technicians. Depressurize and bleed all lines before disconnecting existing hose or fittings. Secure the reel base to a structurally sound mounting surface rated for the combined weight of the reel and fully loaded hose. Verify that mounting hardware torque and fastener grade are appropriate for the vehicle and service environment before placing the unit in service.

Technical Specifications

• Hose Inner Diameter: 3/8 inches
• Hose Outer Diameter: 11/16 inches
• Hose Length Capacity: 50 feet
• Reel Height: 22 inches
• Reel Length: 20.5 inches
• Reel Width: 10.5 inches
• Weight: 61 pounds
• Drive Type: Spring driven
• Mount Type: Truck mount
• Base Material: Steel
• Swivel Material: Solid brass
• Finish: CPC powder coat
• UPC: 674255727649

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMPL-350
