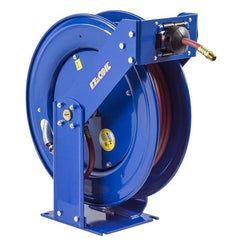

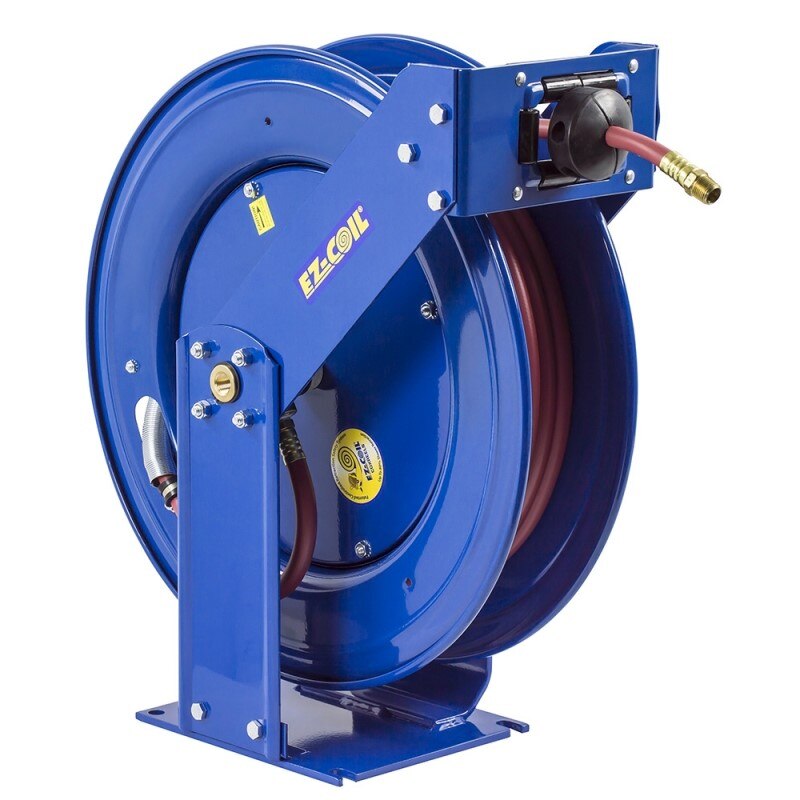

Coxreels EZ-TMP-550 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS EZ-TMP-550 is a spring-driven, truck-mount hose reel built for demanding off-road and field service applications. Part of the COXREELS T Series line, it features an extra-large chassis with dual pedestal-style arms and a Super Hub triple axle support system that reduces vibration and reinforces structural integrity. The EZ-COIL retraction motor slows hose retrieval to up to 80 percent slower than conventional spring reels, reducing snap-back risk during operation. Rated for 3/4 inch ID hose up to 50 feet in length, this reel is suited for professional technicians running water, air, or fluid delivery lines from a service vehicle in abusive, high-cycle environments.

The EZ-TMP-550 is designed for truck-mounted service applications where durability and secure mounting are critical. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across service truck layouts. The solid one-piece steel base requires no welding and provides a stable platform under constant movement and vibration. This reel is commonly installed by HVAC service technicians, plumbers, irrigation contractors, and industrial maintenance crews who require a reliable retractable hose solution on a mobile work platform.

Key Features

• EZ-COIL spring-driven motor retracts hose up to 80 percent slower than standard reels for improved operator safety
• Super Hub triple axle support reduces vibration and strengthens the reel chassis under off-road conditions
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• 1/4 inch solid one-piece steel base with dual pedestal design and support post, no-weld construction
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit unit for truck-mounted spring-driven hose reel applications requiring a 3/4 inch ID, 50-foot hose capacity in the COXREELS T Series EZ-T platform.

Installation Notes

Installation should be performed by a qualified technician familiar with vehicle-mount fluid delivery systems. Shut off all fluid supply lines and depressurize the hose before removing or installing the reel. Secure all mounting hardware to the vehicle frame per the vehicle manufacturer load and torque specifications, and verify that hose end fittings are rated for the intended working pressure. Consult applicable DOT guidelines when mounting equipment to a commercial service vehicle.

Technical Specifications

• Hose ID: 3/4 inch
• Hose Capacity: 50 feet
• Hose OD: 1 1/16 inch
• Drive Type: Spring driven
• Mount Type: Truck mount
• Base Material: Steel, 1/4 inch one-piece construction
• Swivel Material: Solid brass, 90-degree full-flow NPT
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 94 pounds
• UPC: 674255729094

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMP-550
