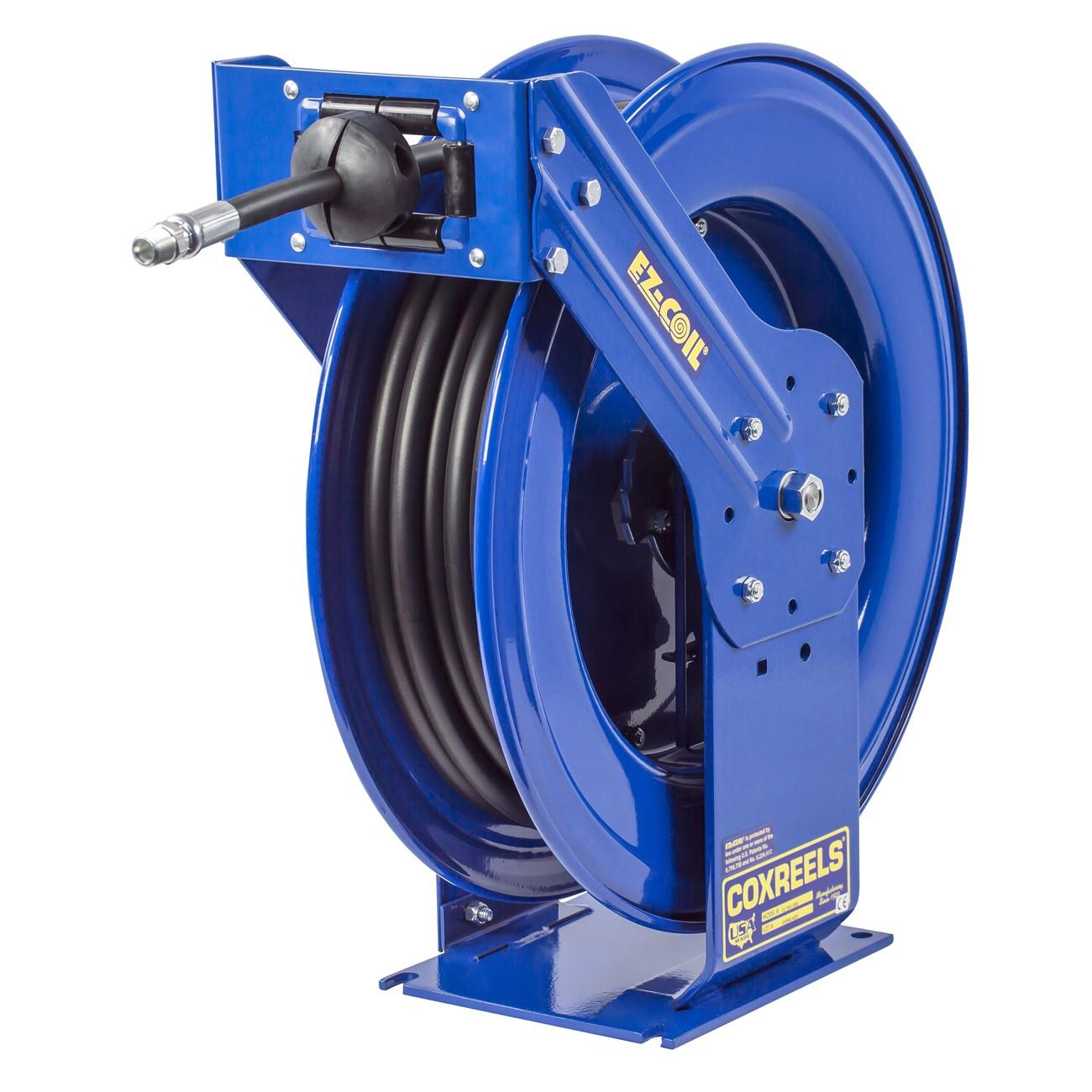

Coxreels EZ-TMP-475 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS EZ-TMP-475 is a spring-driven, truck-mount hose reel built for heavy-duty trade and fleet applications. Part of the COXREELS T Series, it accommodates 1/2 inch ID hose with a 13/16 inch OD up to 75 feet in length. The reel features an extra-large chassis with dual pedestal-style arms and a triple axle support hub that reduces vibration and reinforces structural integrity. It is designed for off-road and mobile service environments where conventional reels fail under repeated stress. Licensed contractors, fleet mechanics, and field service technicians in HVAC, plumbing, and industrial trades are the primary installers.

The EZ-TMP-475 suits truck-mounted service rigs and mobile maintenance units that operate in demanding outdoor or off-road conditions. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions, making it adaptable across a range of installation layouts. Its spring-driven retraction system uses the COXREELS EZ-Coil mechanism, which retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazards in the field. This reel is well suited for mobile lube trucks, pressure washing rigs, and utility service vehicles.

Key Features

• EZ-Coil spring retraction system retracts up to 80 percent slower than standard reels for safer operation
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed disc construction with rolled edges for added strength, durability, and hose protection
• Dual pedestal design with solid one-piece 1/4 inch steel base and support post, no-weld construction for maximum stability
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting
• CPC powder coat finish provides chip resistance and rust inhibition; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style truck-mount replacement or new-install spring-driven hose reel for 1/2 inch ID hose lines up to 75 feet in length on mobile service vehicles and stationary mount points.

Installation Notes

Installation should be performed by a qualified mechanic or trade technician familiar with mobile fluid-handling equipment. Depressurize and drain the hose and connected system fully before mounting or servicing the reel. Secure the steel base to a structurally sound mount point using hardware rated for the reel weight and expected load. Verify swivel and hose connections are leak-free under working pressure before returning the system to service.

Technical Specifications

• Hose ID: 1/2 inch
• Hose OD: 13/16 inch
• Hose Length Capacity: 75 feet
• Reel Length: 25 inches
• Reel Width: 13 inches
• Reel Height: 27 inches
• Weight: 100 pounds
• Base Material: Steel (1/4 inch solid one-piece)
• Swivel Material: Solid brass
• Finish: CPC powder coat
• Drive Type: Spring driven
• Mount Type: Truck mount
• UOM: Each
• UPC: 674255725812

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMP-475
