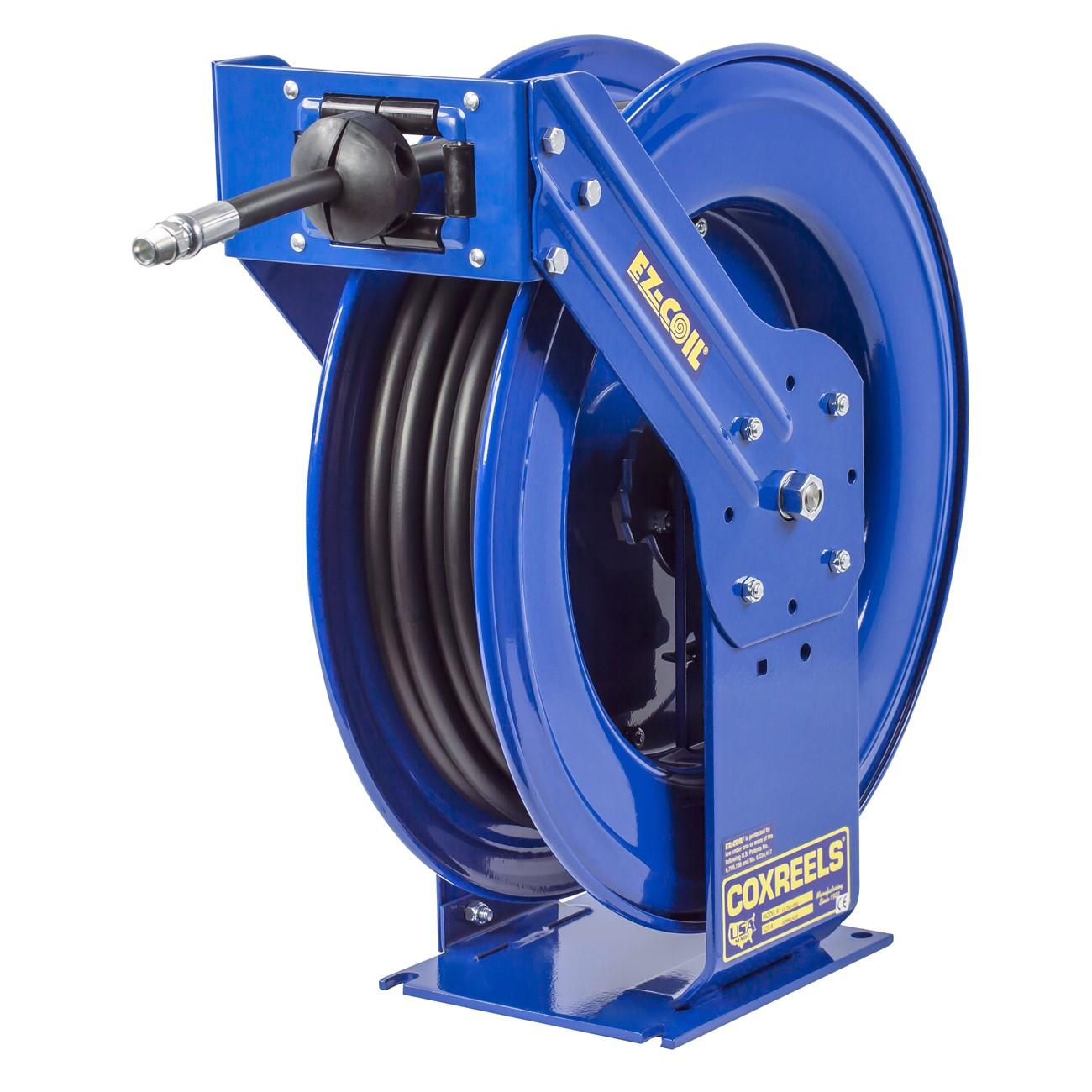

Coxreels EZ-TMP-450 Spring Driven Truck Mount Hose Reel

Product Description

The COXREELS EZ-TMP-450 is a spring-driven truck mount hose reel built for demanding off-road and field service environments. Part of the EZ-T Series, it features an extra-large chassis with dual pedestal-style arms and the Coxreels Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under abusive conditions. The reel accepts hose with a 1/2 inch inner diameter and 13/16 inch outer diameter up to 50 feet in length. The EZ-Coil spring motor is enclosed in a lubricated cartridge and retracts hose up to 80 percent slower than conventional reels, reducing snap-back hazards on the job site. Licensed tradespeople in HVAC, plumbing, and general industrial service will find this reel suited to vehicle-mounted service setups.

The EZ-TMP-450 is designed for truck and vehicle mount applications where reliability in rough terrain is non-negotiable. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across different service truck layouts. The reel is equally suited to industrial facilities and field service fleets that run pressurized fluid or air lines regularly. Its sealed spring motor and solid one-piece steel base with no-weld construction make it a practical choice for daily-use service environments where downtime for maintenance must be minimized.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Machined solid brass 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and structural durability
• Dual pedestal design with solid one-piece no-weld steel base and Super Hub triple axle support reduces vibration and flex
• Multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish is chip resistant and rust inhibiting for long service life in outdoor and vehicle-mounted use

Compatibility

Designed to accept hose with a 1/2 inch inner diameter and 13/16 inch outer diameter up to 50 feet in length. Intended for truck mount and off-road vehicle service applications requiring a spring-driven hose reel.

Installation Notes

Installation is typically performed by qualified mechanical or service technicians familiar with vehicle-mounted fluid handling equipment. Depressurize the hose and fluid system completely before mounting or servicing the reel. Secure all mounting fasteners to the vehicle frame or service body using hardware rated for the load. Consult applicable OSHA and equipment manufacturer guidelines for pressurized hose reel installations on service vehicles.

Technical Specifications

• Hose Inner Diameter: 1/2 inch
• Hose Outer Diameter: 13/16 inch
• Hose Capacity: 50 feet
• Weight: 77 pounds
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Drive Type: Spring driven
• Mount Type: Truck mount
• Swivel Material: Solid brass
• Finish: CPC powder coat

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMP-450
