Coxreels EZ-TMP-375 Spring Driven Hose Reel 3/8 Inch 75 Ft

Product Description

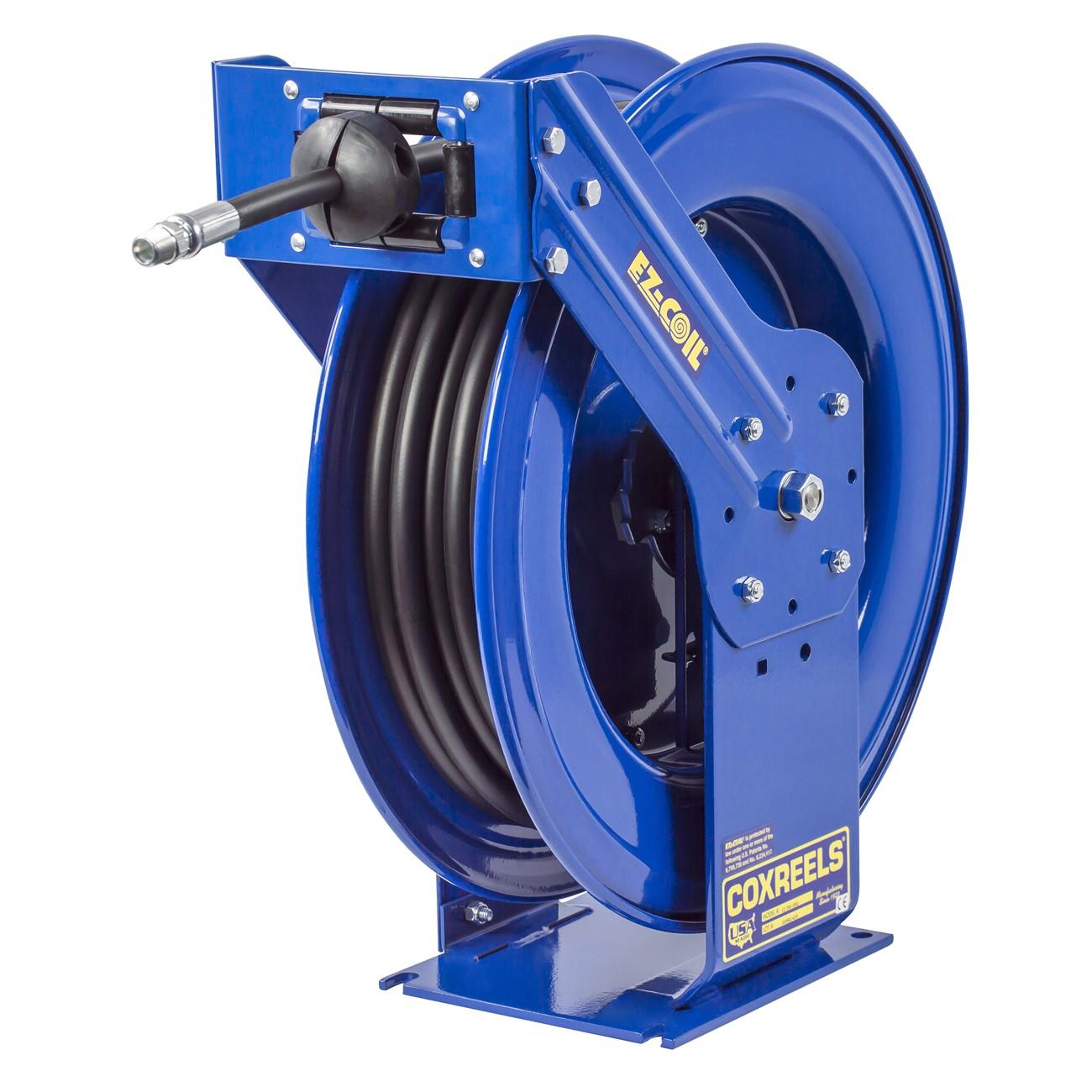

The COXREELS EZ-TMP-375 is a spring-driven hose reel built for truck-mount and off-road service applications. Part of the COXREELS T Series, it features an extra-large chassis with dual pedestal-style arms and a Super Hub triple axle support system that reduces vibration and reinforces structural integrity under harsh field conditions. The reel accepts 3/8 inch ID, 11/16 inch OD hose up to 75 feet in length. The EZ-Coil spring motor is enclosed in a lubricated cartridge that retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk during retraction. Licensed contractors and fleet service technicians working in demanding mobile environments rely on this reel for consistent, safe hose management.

The EZ-TMP-375 is designed for mobile service units, lube trucks, fleet maintenance rigs, and other vehicle-mounted installations where durability and vibration resistance are critical. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service truck setups. The one-piece steel base and CNC robotically spun ribbed discs with rolled edges make it well suited to off-road and high-cycle service environments where lesser reels fail prematurely.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts up to 80 percent slower than conventional spring reels for improved operator safety
• Super Hub triple axle support reduces vibration and strengthens chassis integrity on off-road and truck-mounted applications
• CNC robotically spun and ribbed discs with rolled edges provide hose protection and structural durability
• Solid brass 90-degree full-flow NPT swivel machined from solid stock for simple seal maintenance without removing reel from mount
• 1/4 inch solid one-piece steel base with dual pedestal design and no-weld support post for maximum stability
• Multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions
• CPC powder coat finish resists chips and rust; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style truck-mount replacement or new-install hose reel for mobile service units requiring a 3/8 inch ID spring-driven reel rated for 75 feet of hose in off-road and high-demand environments.

Installation Notes

Installation should be performed by a qualified service technician familiar with mobile fluid-delivery systems and vehicle upfitting. Depressurize the hose and fluid supply line completely before mounting or servicing the reel. Secure all mounting hardware to a structurally sound surface rated to support the reel weight, and verify guide arm orientation before final torque of mounting fasteners. Consult applicable vehicle upfit and safety guidelines when integrating into a service truck chassis.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length Capacity: 75 feet
• Drive Type: Spring driven
• Swivel: Solid brass 90-degree full-flow NPT
• Base Material: 1/4 inch solid one-piece steel
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Finish: CPC powder coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 99 pounds
• UPC: 674255730458

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TMP-375
