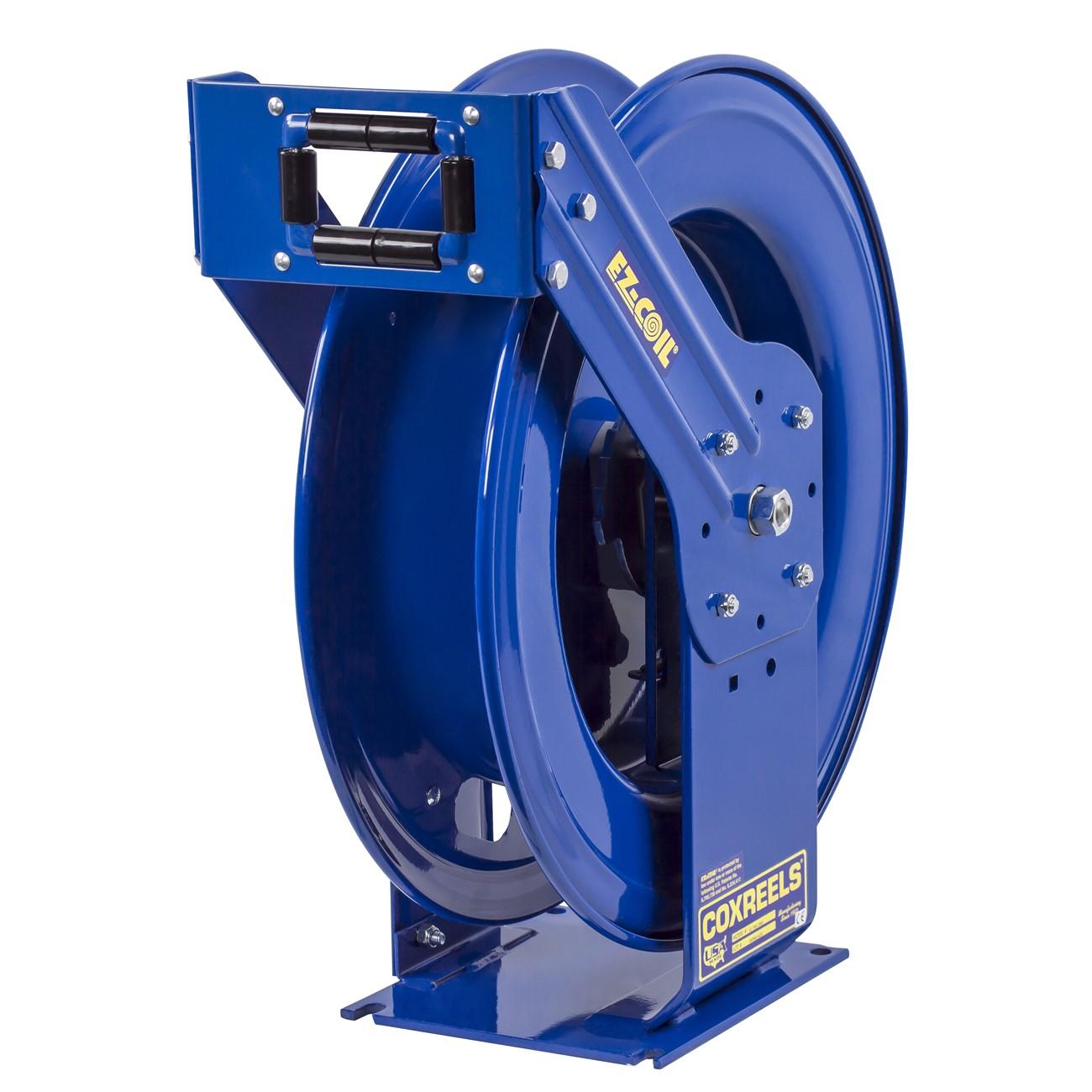

Coxreels EZ-THPL-175 Spring Driven Hose Reel 75 Foot

Product Description

The COXREELS EZ-THPL-175 is a spring-driven hose reel built for truck-mount and off-road service applications. It accepts 1/4 inch inner diameter hose up to 75 feet in length and features an extra-large dual pedestal chassis with the Coxreels Super Hub triple axle support system. That construction reduces vibration and reinforces structural integrity under demanding field conditions. The EZ-Coil enclosed cartridge-style spring motor retracts hose up to 80 percent slower than conventional spring reels, giving technicians controlled retraction on the job. CNC robotically spun and ribbed steel discs with rolled edges add strength while protecting hose and operator alike. This reel is intended for professional installation and use by trade service technicians operating mobile service vehicles.

The EZ-THPL-175 is designed for truck-mount and vehicle-mounted service setups where off-road reliability is required. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting orientations, making it adaptable across service body configurations. The 90-degree full-flow NPT swivel, machined from zinc-plated steel, allows hose installation and seal maintenance without removing the reel from its mount. This reel is well suited to mobile lube, fluid transfer, pneumatic, and similar service-truck applications where a durable, spring-return hose management solution is needed in high-vibration environments.

Key Features

• EZ-Coil enclosed cartridge spring motor retracts hose up to 80 percent slower than conventional reels for controlled, safe retraction
• Super Hub triple axle support reduces vibration and strengthens chassis integrity for off-road and truck-mount use
• CNC robotically spun and ribbed discs with rolled edges protect hose and improve structural durability
• 90-degree full-flow NPT swivel machined from zinc-plated steel allows seal service without dismounting the reel
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting configurations
• CPC powder coat finish resists chips and rust for long service life in outdoor and mobile environments
• Permanently lubricated precision bearings require no routine bearing maintenance

Compatibility

Designed as an OEM-style truck-mount spring-driven hose reel accepting 1/4 inch inner diameter hose up to 75 feet in length with standard NPT swivel connections.

Installation Notes

Installation should be performed by a qualified technician familiar with mobile service equipment and vehicle upfitting. Shut off all fluid supply lines and depressurize the hose assembly completely before mounting or servicing the reel. Secure the one-piece steel base to a structurally sound mounting surface using appropriately rated fasteners for the vehicle or fixture type. Verify all NPT swivel connections are properly sealed and torqued per the fitting manufacturer's recommendations before returning the system to service.

Technical Specifications

• Hose Inner Diameter: 1/4 inch
• Hose Outer Diameter: 9/16 inch
• Hose Length Capacity: 75 feet
• Drive Type: Spring driven
• Swivel Material: Zinc plated steel
• Swivel Type: 90-degree full-flow NPT
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Finish: CPC powder coat
• Weight: 71 pounds
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• UPC: 674255725843

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-THPL-175
