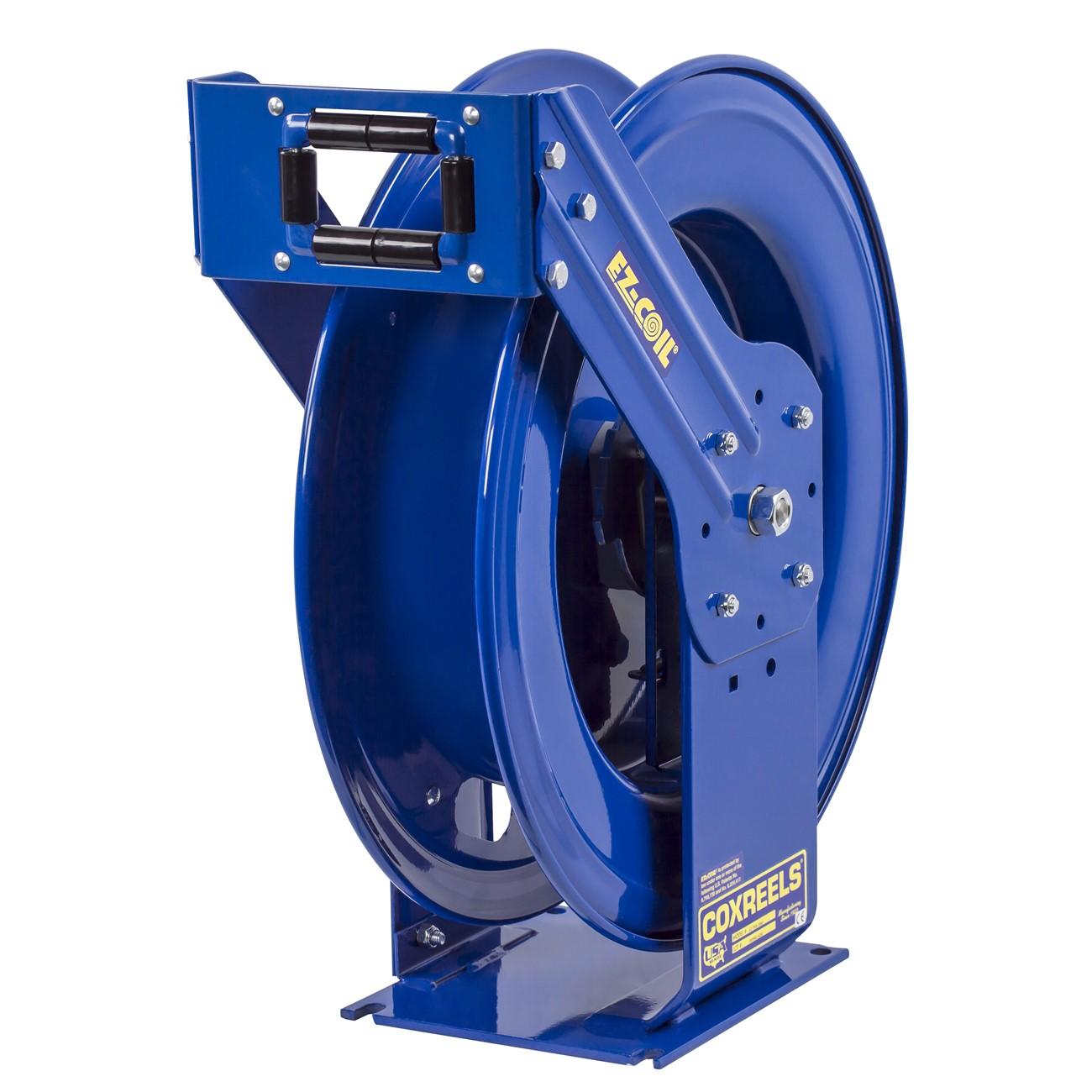

Coxreels EZ-THPL-150 Spring Driven Hose Reel 1/4 Inch Id

Product Description

The COXREELS EZ-THPL-150 is a spring-driven hose reel built for truck-mount and off-road service applications. It accepts 1/4-inch ID, 9/16-inch OD hose up to 50 feet and retracts using a lubricated, enclosed cartridge-style spring motor. The reel rides on a dual pedestal chassis with a Super Hub triple axle support system that reduces vibration and reinforces structural integrity under heavy field use. CNC robotically spun and ribbed discs with rolled edges protect the hose and the operator. At 62 pounds, this is a heavy-duty unit built for environments where conventional reels fail. Licensed technicians and fleet service crews rely on it for demanding mobile installations.

The EZ-THPL-150 is designed for truck-mounted and vehicle-based service rigs where durability and reliable retraction are non-negotiable. It suits off-road and field service scenarios in industries such as oil and gas, agriculture, construction, and fleet maintenance. The multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a range of service truck layouts and body styles.

Key Features

• EZ-Coil spring motor retracts hose up to 80% slower than conventional reels, reducing snap-back risk and operator injury
• Enclosed, lubricated cartridge-style spring motor is removable for maintenance without dismounting the reel
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• CNC robotically spun ribbed discs with rolled edges add structural strength and protect hose from abrasion damage
• Dual pedestal, one-piece steel base with no-weld construction and Super Hub triple axle support for maximum stability under vibration
• CPC powder coat finish resists chips and rust for long service life in outdoor and mobile environments

Compatibility

Designed as an OEM-style truck-mount spring-driven hose reel compatible with 1/4-inch ID hose up to 50 feet in length, suitable for mobile service and off-road vehicle installations.

Installation Notes

Installation is typically performed by experienced service technicians or fleet upfitters familiar with vehicle-mounted fluid transfer equipment. Depressurize and bleed the hose and supply line completely before mounting or servicing the reel. Secure the one-piece steel base to a structurally sound mounting surface rated for the combined weight of the reel and fully loaded hose. Consult applicable OSHA and vehicle upfitting guidelines for proper fastener specifications and load ratings.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Capacity: 50 ft
• Drive Type: Spring driven
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 62 pounds
• Disc Construction: CNC robotically spun ribbed steel with rolled edges
• Base Construction: One-piece no-weld steel dual pedestal
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Swivel Material: Zinc-plated steel, 90-degree full-flow NPT
• UPC: 674255727304

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-THPL-150
