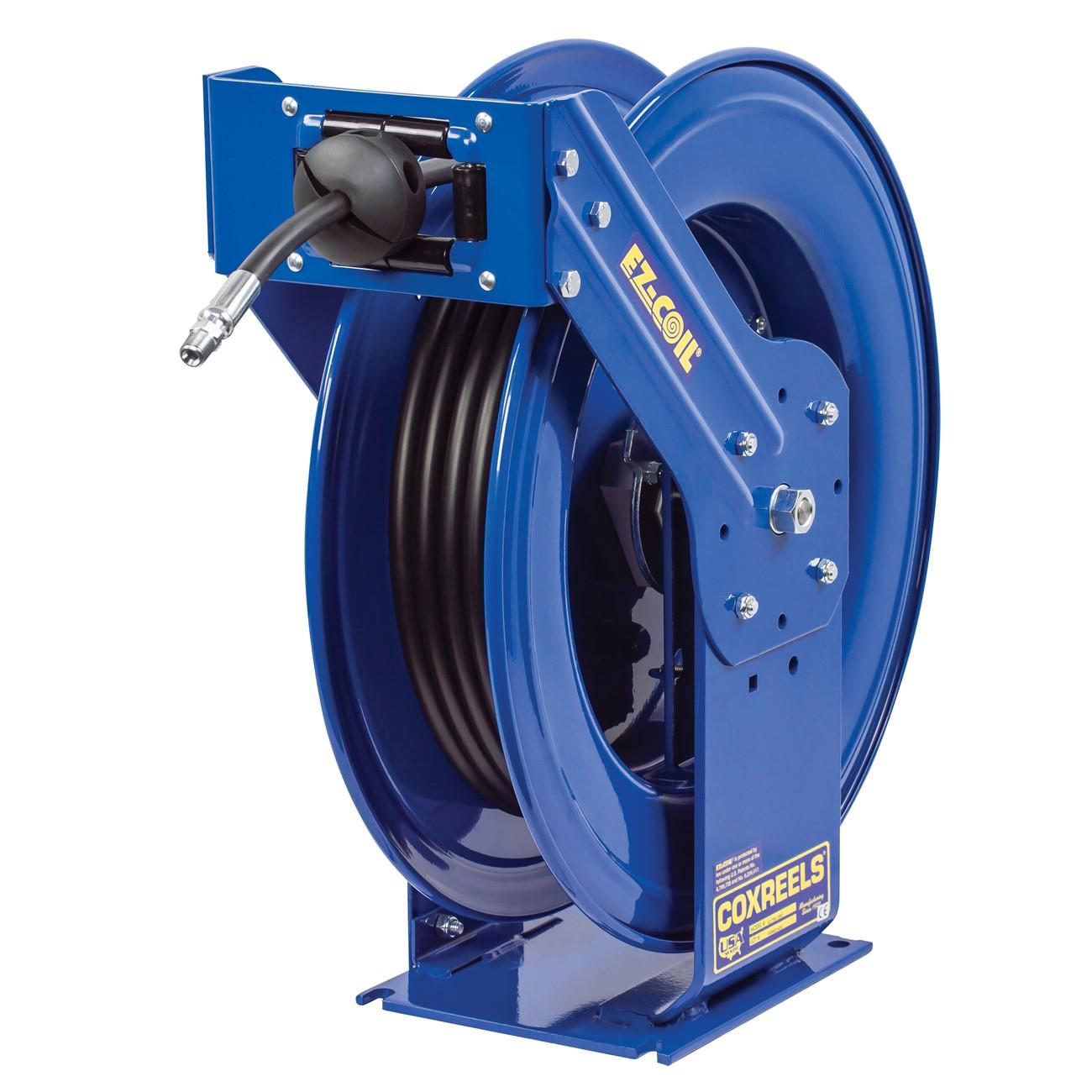

Coxreels EZ-THP-375 Spring Driven Hose Reel 3/8 in 75 Ft

Product Description

The COXREELS EZ-THP-375 is a heavy-duty spring-driven hose reel built for truck-mount and off-road applications where reliability under extreme conditions is non-negotiable. Engineered as part of the COXREELS T Series, it features an extra-large chassis with dual pedestal-style arms and a Super Hub triple axle support system that reduces vibration and reinforces structural integrity across the entire reel body. The reel accommodates 3/8 inch ID, 11/16 inch OD hose up to 75 feet in length. Its EZ-Coil retraction system slows rewind speed by up to 80 percent compared to conventional spring-driven reels, significantly reducing the risk of hose snap-back injury during retrieval. Licensed HVAC, plumbing, and service technicians working in mobile or field-service environments will find this reel suited to high-cycle daily use.

The EZ-THP-375 is designed for demanding mobile service installations, including service trucks, utility vehicles, and off-road fleet equipment. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a wide range of service body layouts. The zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without removing the reel from its mount, reducing downtime on the job. This reel is a practical fit for fluid transfer, compressed air, and similar applications in trade service environments that see constant movement and vibration.

Key Features

• EZ-Coil spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Lubricated, enclosed cartridge-style spring motor is removable for maintenance without special tooling
• CNC robotically spun and ribbed discs with rolled edges for strength, hose protection, and durability
• Dual pedestal design with solid one-piece 1/4 inch steel base and support post, no-weld construction
• Super Hub triple axle support reduces vibration and increases structural integrity under off-road conditions
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mount orientations
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in harsh environments

Compatibility

Designed as an OEM-style truck-mount spring-driven hose reel compatible with 3/8 inch ID hose up to 75 feet in length. No specific model or system compatibility data was provided by the manufacturer for this listing.

Installation Notes

Installation should be performed by a qualified technician familiar with mobile fluid-delivery or compressed-air service equipment. Depressurize all lines and disconnect the hose from any fluid or air source before mounting or servicing the reel. The multi-position guide arm must be secured in the correct orientation for the mounting surface prior to connecting the hose. Follow vehicle manufacturer guidelines and applicable DOT or fleet safety standards when mounting to service truck bodies or off-road vehicles.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Capacity: 75 feet
• Retraction Type: Spring driven
• Swivel: 90-degree full-flow NPT, zinc-plated steel
• Base Material: 1/4 inch solid steel, no-weld construction
• Finish: CPC powder coat, chip-resistant and rust-inhibiting
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 98 pounds
• UPC: 674255733510

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-THP-375
