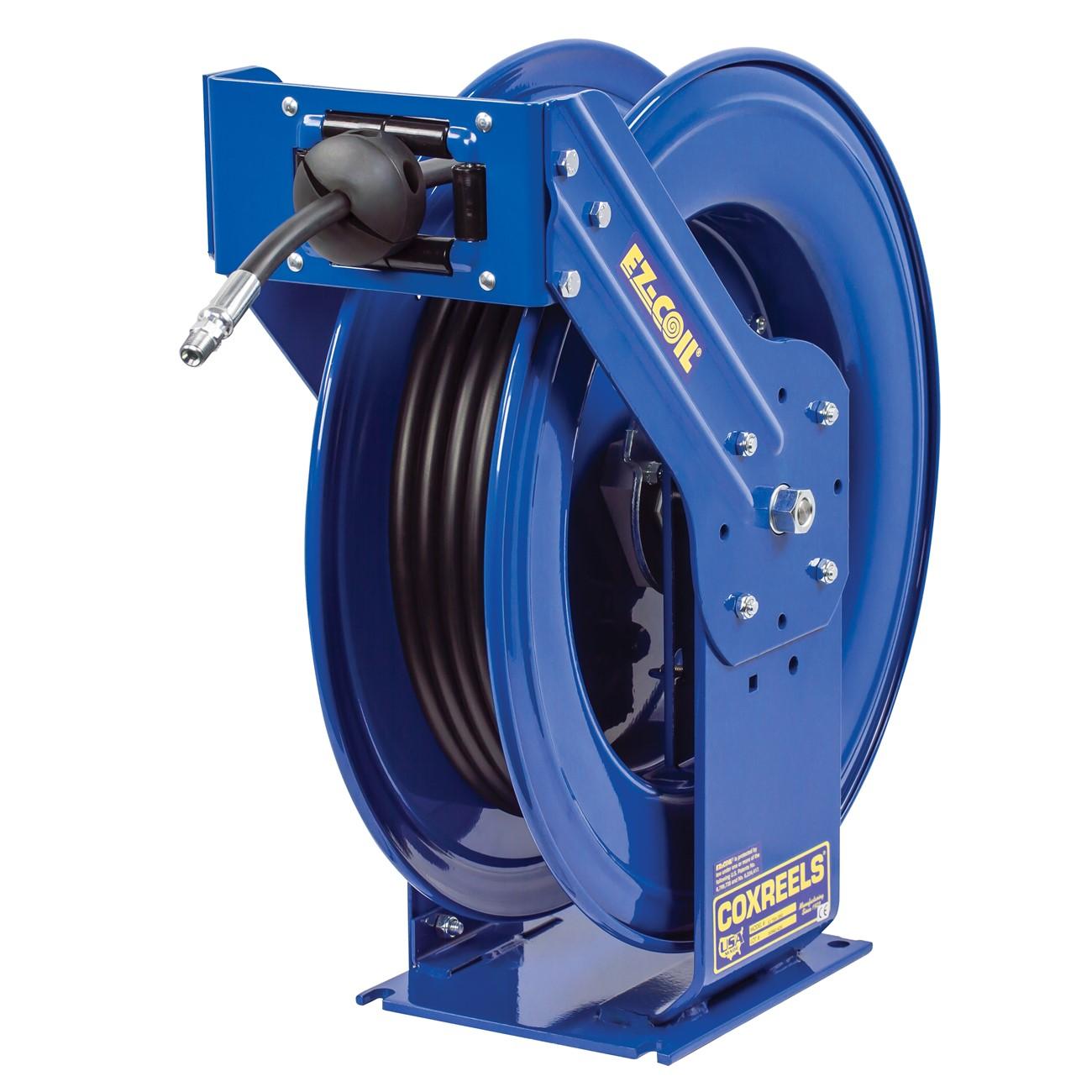

Coxreels EZ-THP-350 Spring Driven Hose Reel 3/8 in 50 Ft

Product Description

The COXREELS EZ-THP-350 is a heavy-duty spring driven hose reel built for truck mount and off-road service applications. Part of the COXREELS T Series EZ-T line, it accepts 3/8 inch ID hose up to 50 feet and uses a patented EZ-COIL cartridge motor that retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk for the technician. The chassis features an extra-large dual pedestal design with a one-piece solid steel base and the COXREELS Super Hub triple axle support system to minimize vibration and maintain structural integrity under abusive field conditions. Weighing 78 pounds, this reel is designed for demanding environments where reliability is not optional.

The EZ-THP-350 is suited for mobile service trucks, fleet maintenance operations, and off-road equipment servicing where a reel must hold up to constant vibration, rough handling, and repeated daily use. The multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting configurations, making it adaptable across a range of mobile and fixed-station setups. Licensed plumbers, HVAC technicians, and fluid-service professionals working from service vehicles will find this reel fits standard truck-mount installations.

Key Features

• EZ-COIL patented spring motor retracts up to 80 percent slower than conventional reels, reducing snap-back hazard
• Lubricated and enclosed cartridge-style motor is removable without removing the reel from its mount
• Zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal maintenance without dismounting the reel
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for hose protection and operator safety
• Dual pedestal, one-piece steel base with Super Hub triple axle support reduces vibration and strengthens structural integrity
• CPC powder coat finish is chip resistant and rust inhibiting; includes adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style truck mount spring driven hose reel accepting 3/8 inch ID hose up to 50 feet in length; consult COXREELS fitment documentation to confirm compatibility with specific hose assemblies and mounting hardware.

Installation Notes

Installation is typically performed by licensed service technicians or qualified mechanics familiar with mobile fluid-delivery systems. Depressurize and drain all connected lines before mounting or servicing the reel. The multi-position guide arm should be secured in the appropriate orientation for the mounting surface prior to connecting hose. Follow applicable workplace safety and vehicle upfitting guidelines during installation.

Technical Specifications

• Hose ID: 3/8 inch
• Hose OD: 11/16 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Swivel: 90-degree full-flow NPT, zinc-plated steel
• Base Material: One-piece solid steel
• Finish: CPC powder coat, chip resistant and rust inhibiting
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 78 pounds

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-THP-350
