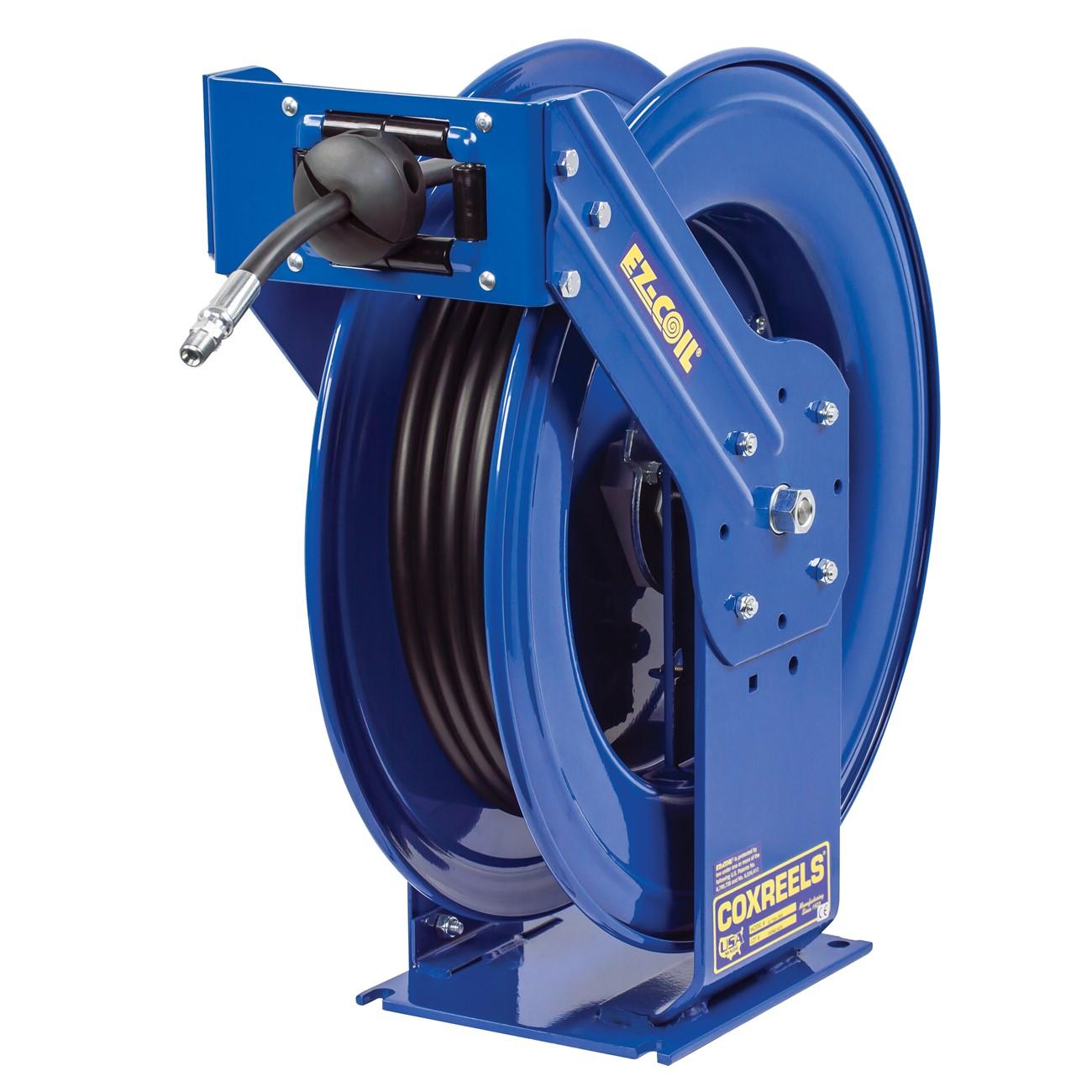

Coxreels EZ-THP-175 Spring Driven Hose Reel 75 Ft

Product Description

The COXREELS EZ-THP-175 is a heavy-duty, spring-driven hose reel engineered for truck-mount and off-road service applications. It accepts 1/4 inch ID hose with a 9/16 inch OD up to 75 feet in length, making it well suited for mobile service rigs operating in harsh, high-vibration environments. The reel features an extra-large chassis with dual pedestal-style arms and the COXREELS Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under demanding field conditions. A CPC powder coat finish provides chip resistance and rust inhibition for long service life. Licensed trades and fleet service technicians working in abusive outdoor environments will find this reel built to withstand repeated daily use.

The EZ-THP-175 is designed for mobile and stationary installations where spring-driven automatic retraction is required. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, giving installers flexibility across a range of service truck and shop setups. The EZ-Coil spring motor retracts hose up to 80 percent slower than conventional reels, reducing snap-back risk for operators in the field.

Key Features

• EZ-Coil patented safety system retracts hose up to 80 percent slower than standard spring-driven reels
• Super Hub triple axle support reduces vibration and increases chassis rigidity for off-road use
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• Dual pedestal, solid one-piece steel base with no-weld support post for maximum mounting stability
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• Chip-resistant, rust-inhibiting CPC powder coat finish with adjustable solid rubber hose stop and permanently lubricated precision bearings

Compatibility

Designed as an OEM-style spring-driven hose reel for truck-mount and shop applications requiring 1/4 inch ID hose up to 75 feet in length.

Installation Notes

Installation should be performed by a qualified technician familiar with mobile equipment or industrial hose reel mounting practices. Depressurize and disconnect the hose line from its source before mounting or servicing the reel. Secure the reel base to the mounting surface using fasteners rated for the load and vibration environment. Verify the guide arm position and swivel orientation before returning the system to service.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length Capacity: 75 feet
• Drive Type: Spring driven
• Mounting Style: Truck mount, multi-position
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 88 pounds
• Finish: CPC powder coat
• Swivel Material: Zinc plated steel
• UPC: 674255725829

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-THP-175
