Coxreels EZ-THP-150 Spring Driven Hose Reel 1/4 Inch Id

Product Description

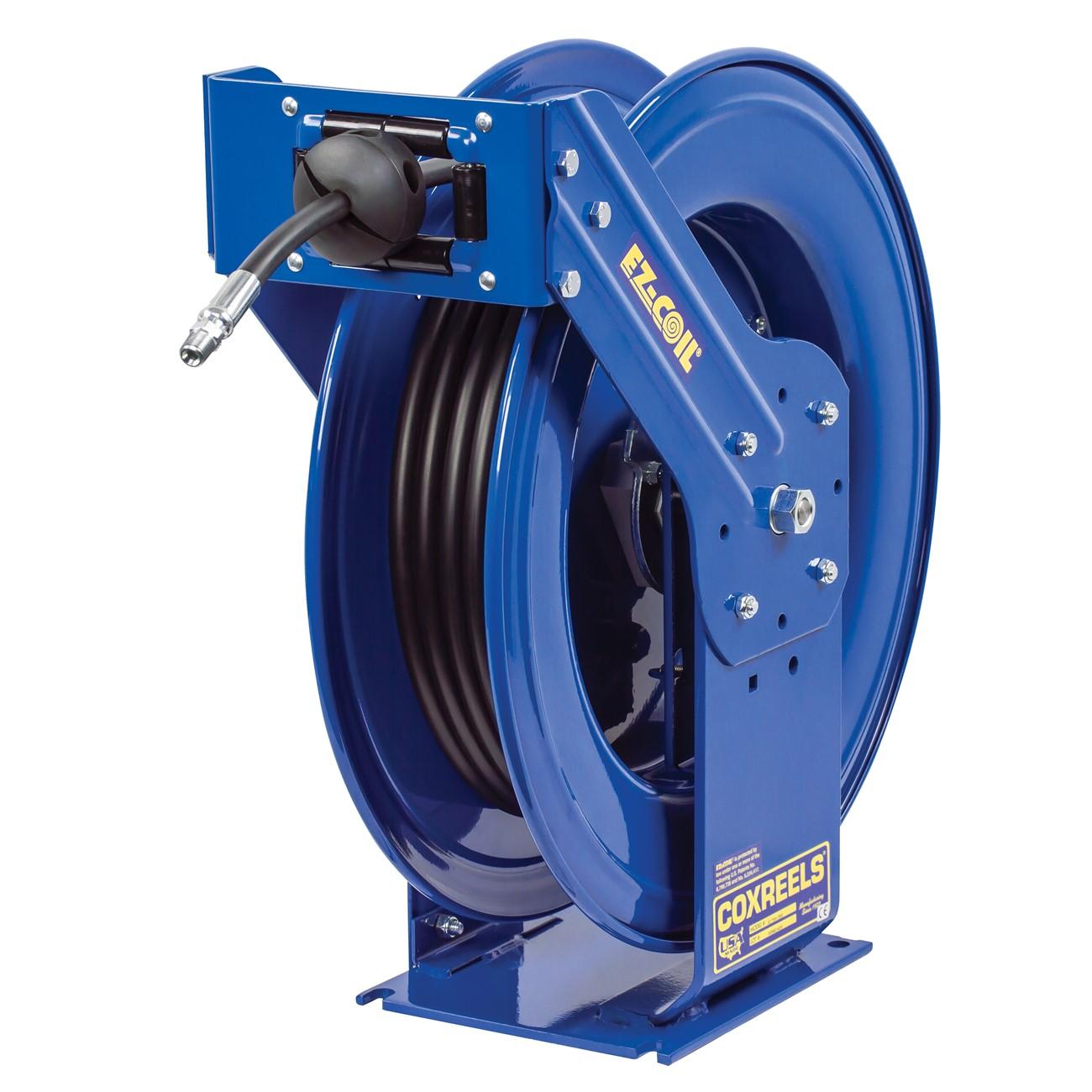

The COXREELS EZ-THP-150 is a heavy-duty spring driven hose reel built for truck mount and off-road service applications. Designed around the EZ-T Series chassis, it features an extra-large dual pedestal frame with a one-piece steel base and the Coxreels Super Hub triple axle support system. These design elements reduce vibration and reinforce structural integrity under the punishing conditions common in field service, utility, and vocational truck applications. The reel accommodates 1/4 inch ID hose at 50 feet in length and is driven by a lubricated, enclosed cartridge-style spring motor that retracts hose up to 80 percent slower than conventional reels for controlled, operator-safe retraction.

This reel is suited for mobile service trucks, fleet maintenance vehicles, and off-road equipment platforms where reliability under repeated stress is non-negotiable. The multi-position guide arm adjusts to wall, floor, ceiling, and vehicle mounting orientations, making installation flexible across a wide range of truck bed and service body configurations. Licensed contractors and fleet service technicians working in lubrication, pneumatic tool supply, or fluid transfer will find this reel appropriate for high-cycle daily use in demanding field environments.

Key Features

• EZ-Coil spring motor retracts hose up to 80 percent slower than conventional reels for controlled, safe operation
• Lubricated and enclosed cartridge-style spring motor is fully removable for maintenance without dismounting the reel
• Machined zinc-plated steel 90-degree full-flow NPT swivel allows hose installation and seal service without removing the reel from its mount
• Super Hub triple axle support reduces vibration and strengthens structural integrity for off-road use
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges protect hose and improve operator safety
• CPC powder coat finish is chip-resistant and rust-inhibiting for long service life in outdoor and mobile environments
• Adjustable multi-position guide arm accommodates wall, floor, ceiling, and vehicle mounting

Compatibility

Designed as an OEM-style truck mount and pedestal-mount spring driven hose reel for 1/4 inch ID hose lines in mobile service and off-road fleet applications.

Installation Notes

Installation is typically performed by a qualified fleet service technician or mechanical contractor. Power down or depressurize all connected fluid or air lines before mounting or servicing the reel. Secure the one-piece steel base to a structurally sound mounting surface rated for the combined weight of the reel and loaded hose. Consult applicable vehicle upfitter and OSHA guidelines for mobile equipment mounting requirements.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Length: 50 feet
• Drive Type: Spring driven
• Mount Type: Truck mount / pedestal
• Length: 20.5 inches
• Width: 10.5 inches
• Height: 22 inches
• Weight: 74 pounds
• UPC: 674255727298

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-THP-150
