Coxreels EZ-THP-1100 Spring Driven Hose Reel 1/4 Inch Id

Product Description

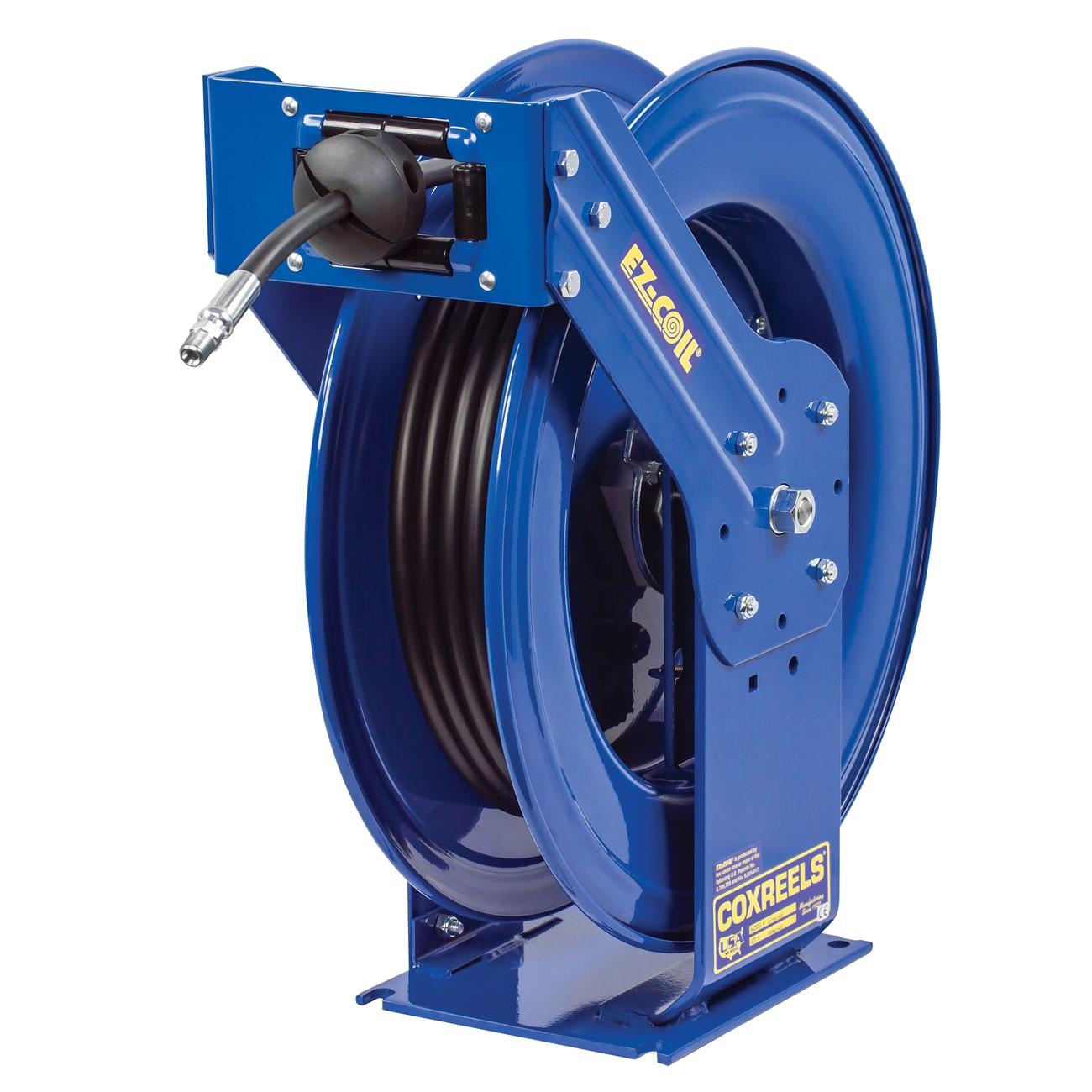

The COXREELS EZ-THP-1100 is a heavy-duty spring-driven hose reel built for truck-mount and off-road service applications. Part of the COXREELS T Series, it features an extra-large chassis with dual pedestal-style arms and the Super Hub triple axle support system, which reduces vibration and reinforces structural integrity under punishing field conditions. The reel accepts 1/4 inch ID hose up to 100 feet in length. The enclosed, lubricated EZ-Coil cartridge motor retracts hose at up to 80 percent slower than conventional spring reels, reducing snap-back risk for the technician on the job. Licensed HVAC, refrigeration, and mechanical service contractors are the primary installers.

The EZ-THP-1100 is designed for service trucks and mobile maintenance rigs operating in demanding outdoor and off-road environments. Its multi-position guide arm adjusts for wall, floor, ceiling, and vehicle mounting configurations, making it adaptable to a wide range of service body layouts. The dual pedestal base uses a solid one-piece steel construction with no welds at the support post junction, maintaining stability across rough terrain. This reel is well-suited for fluid transfer, compressed air, or similar hose-delivered service tasks that require a reliable, self-retracting solution in the field.

Key Features

• EZ-Coil enclosed cartridge-style spring motor retracts up to 80 percent slower than conventional reels for improved operator safety
• Super Hub triple axle support system reduces vibration and strengthens chassis integrity for off-road use
• CNC robotically spun and ribbed discs with rolled edges protect hose and improve structural durability
• Zinc-plated machined steel 90-degree full-flow NPT swivel allows seal maintenance and hose installation without removing the reel from its mount
• Multi-position guide arm supports wall, floor, ceiling, and vehicle mounting orientations
• CPC powder coat finish resists chipping and rust; adjustable solid rubber hose stop included; permanently lubricated precision bearings

Compatibility

Designed as an OEM-style replacement or direct-fit unit for truck-mount spring-driven hose reel applications accepting 1/4 inch ID hose up to 100 feet.

Installation Notes

Installation should be performed by a qualified mechanic or service technician familiar with mobile equipment mounting. Depressurize and bleed all fluid or air lines before disconnecting existing hose reel assemblies. Secure all mounting fasteners to the vehicle service body per the vehicle manufacturer's structural guidelines. Verify hose inlet and outlet fittings are compatible with the NPT swivel before pressurizing the system.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 9/16 inch
• Hose Capacity: 100 feet
• Drive Type: Spring driven
• Mount Type: Truck mount
• Base Material: Steel
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 104 pounds
• UPC: 674255730465

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-THP-1100
