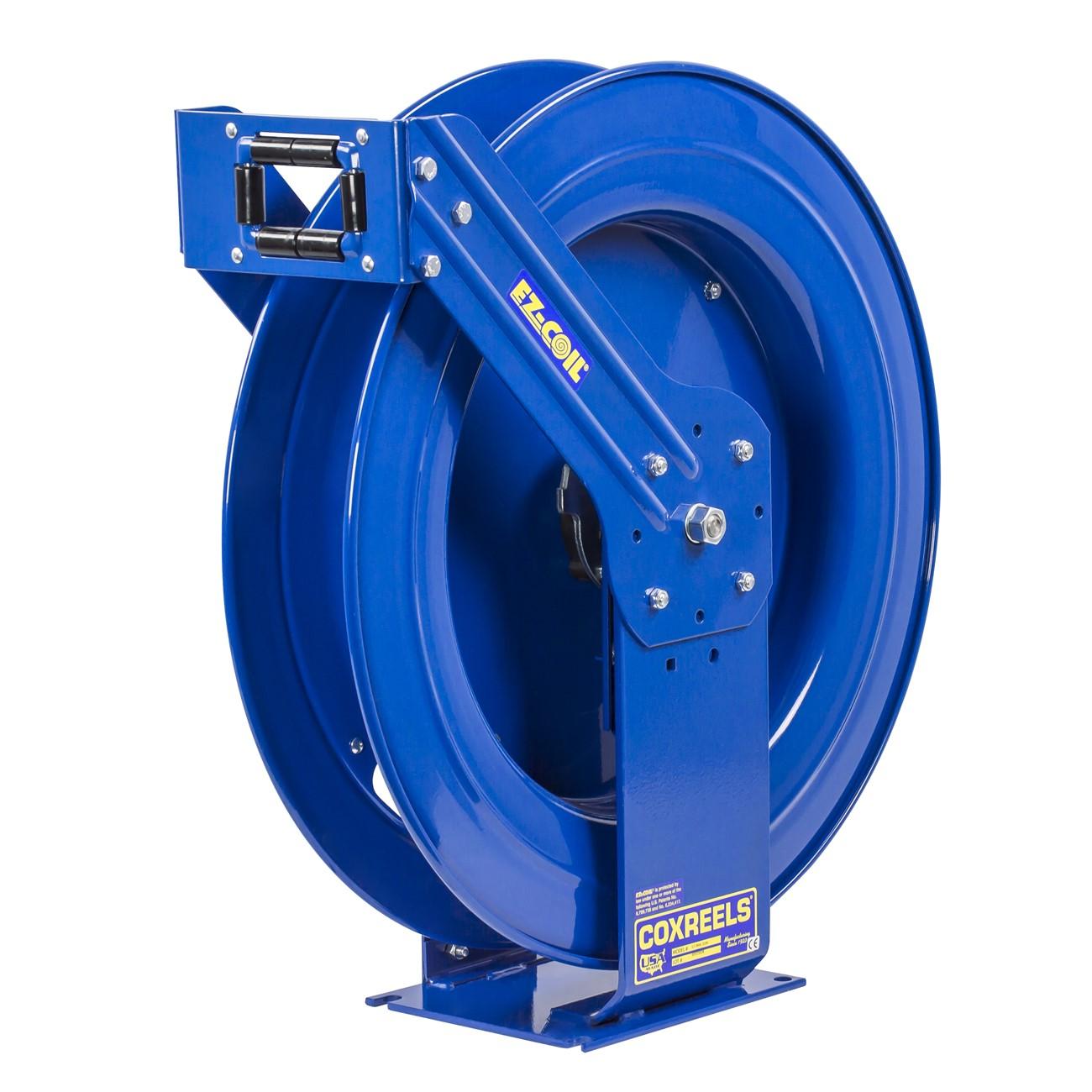

Coxreels EZ-TBHL-3100 Pure Flow Hose Reel 3/8 in 100 Ft

Product Description

The COXREELS EZ-TBHL-3100 is a Pure Flow series hose reel engineered for sanitary fluid transfer applications where contamination is not acceptable. The reel features an all-stainless-steel air and fluid path, including a machined 90-degree full-flow NPT stainless steel swivel inlet, to maintain fluid purity from the supply line through the hose. Designed for 3/8 inch ID hose at 100 feet in length, it is built on a one-piece solid steel dual-pedestal base with no welds, providing maximum stability in fixed or semi-permanent installations. HVAC service professionals, plumbers, and industrial maintenance crews rely on this unit for respiratory air, potable water, and other clean-fluid applications.

The EZ-TBHL-3100 is suited for commercial and industrial environments where pure fluid delivery is required. Typical applications include low and high pressure breathing air systems, drinking water dispensing stations, food-grade fluid handling, and any service point demanding non-contaminated hose storage and retrieval. The spring rewind, hand crank, and motorized retraction options available within the Pure Flow series make this reel adaptable to a variety of workstation configurations. The enclosed, lubricated cartridge-style motor supports convenient servicing without disassembling the full reel assembly.

Key Features

• Full stainless steel air and fluid path with non-toxic, food-grade grease-lubricated swivel for contamination-free transfer
• Machined 90-degree full-flow NPT stainless steel swivel inlet for high-quality sealing and flow efficiency
• Heavy-duty CNC robotically spun and ribbed discs with rolled edges for structural strength, hose protection, and operator safety
• One-piece solid steel dual-pedestal base with no-weld construction and Coxreels exclusive Super Hub triple axle support
• Enclosed, lubricated cartridge-style motor is removable for maintenance without full reel disassembly
• CPC powder coat finish resists chips and rust; includes adjustable guide arm and permanently lubricated precision bearings

Compatibility

Designed for use with 3/8 inch ID hose up to 100 feet in length in Pure Flow series installations requiring stainless steel fluid paths for breathing air, potable water, or other sanitized fluid transfer applications.

Installation Notes

Installation should be performed by a qualified plumber, HVAC technician, or industrial maintenance professional familiar with fluid handling systems and applicable plumbing codes. Shut off the fluid supply line and depressurize the system completely before connecting or servicing the reel. Use appropriately rated fittings and thread sealant compatible with potable water or breathing air service. Verify that the mounting surface can support the reel weight and hose load before securing the base.

Technical Specifications

• Hose ID: 3/8 inch
• Hose Length: 100 feet
• Hose OD: 5/8 inch
• Swivel Material: Stainless Steel
• Fluid Path: Stainless Steel
• Base Construction: One-Piece Steel, No-Weld Dual Pedestal
• Finish: CPC Powder Coat
• Length: 25 inches
• Width: 13 inches
• Height: 27 inches
• Weight: 85 pounds
• UPC: 674255724921

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-TBHL-3100
