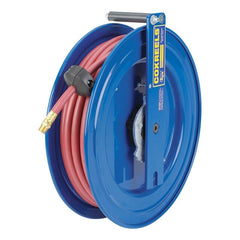

Coxreels EZ-SR15L-L135 Ez-s Spring Retractable Hose Reel

Product Description

The COXREELS EZ-SR15L-L135 is a spring-driven, side-mount hose reel from the EZ-S Series, engineered for air and water service in compact or enclosed workspaces. The reel accepts hose with a 1/4 inch ID and 1/2 inch OD, with a 35-foot capacity. A patented EZ-Coil cartridge motor retracts hose up to 80 percent slower than conventional spring reels, reducing snap-back risk during retraction. CNC robotically spun and ribbed steel discs with rolled edges provide structural rigidity and protect hose integrity during repeated cycling. A machined solid brass 90-degree full-flow NPT swivel supports 360-degree hose direction for operation in any orientation the job demands.

This reel is designed for service trucks, tool benches, tool boxes, vehicle lift systems, machine tool stations, and cabinet or enclosed-space installations. The two-bolt side-mount pattern allows fast attachment and detachment, making it practical for shared or multi-workstation environments. Typical applications include compressed air distribution, water service lines, and similar fluid delivery tasks in both shop and mobile settings. The compact footprint at 17.5 inches long, 8.5 inches wide, and 19.25 inches tall keeps the unit manageable in tight spaces.

Key Features

• EZ-Coil patented safety system retracts hose up to 80 percent slower than standard spring reels
• Machined solid brass 90-degree full-flow NPT swivel allows seal maintenance without removing the reel from its mount
• CNC robotically spun and ribbed discs with rolled edges for strength, durability, and hose protection
• Two-bolt side-mount pattern supports quick installation and removal for temporary or permanent setups
• Hose control bar prevents hose from slipping off the disc during operation
• CPC powder coat finish is chip-resistant and rust-inhibiting; permanently lubricated precision bearings included

Compatibility

Designed as an OEM-style replacement or direct-fit hose reel for air and water service applications. Compatible with 1/4 inch ID hose up to 35 feet in length. Suited for side-mount installation on vertical flat surfaces, cabinets, and enclosed spaces.

Installation Notes

Installation is typically performed by a qualified mechanic or service technician using standard hand tools. Depressurize and disconnect the air or water supply line before mounting or servicing the reel. Follow all applicable facility and vehicle safety codes when mounting to service vehicles or elevated structures. The cartridge-style spring motor is removable for maintenance without disassembling the full reel assembly.

Technical Specifications

• Hose ID: 1/4 inch
• Hose OD: 1/2 inch
• Hose Capacity: 35 feet
• Length: 17.5 inches
• Width: 8.5 inches
• Height: 19.25 inches
• Weight: 20 pounds
• Mount Type: Side Mount, 2-Bolt Pattern
• Swivel Material: Solid Brass
• Finish: CPC Powder Coat
• UPC: 674255733923

Standard Information

• Brand: COXREELS
• Manufacturer Part Number: EZ-SR15L-L135
